8630 - 137
D
EVICE
N
ET

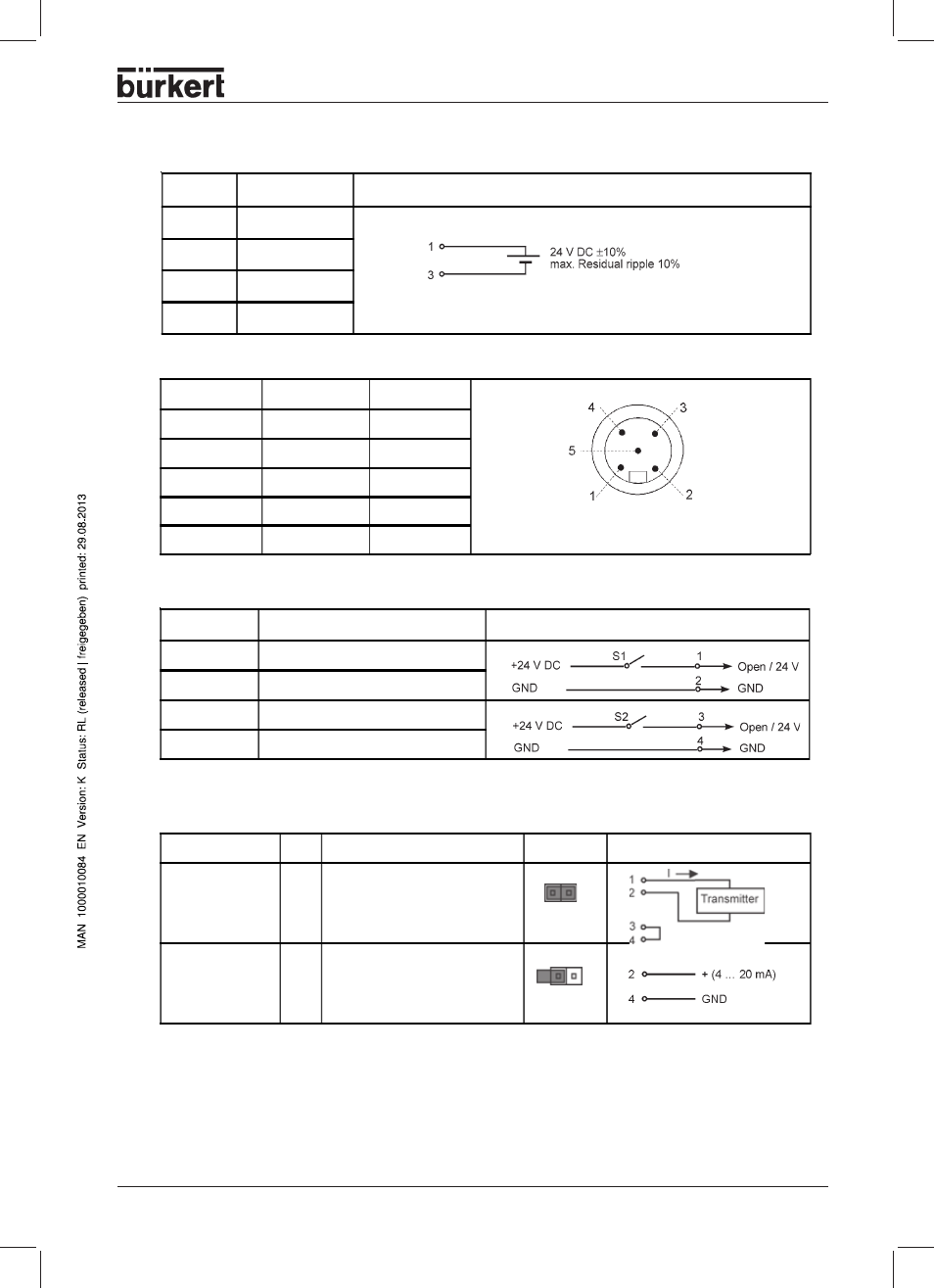

Input type * Pin Assignment Jumper external circuit
4...20 mA
internally
supplied
1
2
3
4
+ 24 V input transmitter
output transmitter
GND
bridge after GND
4...20 mA
externally
supplied
1
2
3
4
not assigned
process actual +
not assigned
process actual -
Pin Assignment Signal level
1 proximity switch 1 + (NO)
2 proximity switch 1 GND
3 proximity switch 2 + (NO)
4 proximity switch 2 GND
Process value (circular plug M8)
Operating voltage (4-pole M12 circular plug)
Bus connection (4-pole M12 circular plug)
Inductive proximity switches (4-pole M8 circular socket)
* adjustable via software
Pin Signal Color
1 screen not assigned
2 V+ red
3 V- black
4 CAN H white
5 CAN L blue
Pin Assignment external circuit
1 +24 V
2 not assigned
3 GND
4 not assigned
