YSTEM
D
ESCRIPTION
Various process valves from the Bürkert range can be combined with the TOP Control to suit different
applications. Y-, diaphragm or ball valves with control cones are suitable.
By the combination of the TOP Control with pneumatically actuated process valves, the functionality of
the Bürkert process valve series is extended. These valves, in connection with the TOP Control, may
also be employed in those control applications requiring continuous behaviour of the actuator.
TOP Control
Continuous
Type 8630
with Y-valve Type 2700
with diaphragm valve
Type 2730 with ball valve
Type 2655
with flat-seat valve
Type 2712
(here with flange connection)
with butterfly valve
Type 2672
Valve types

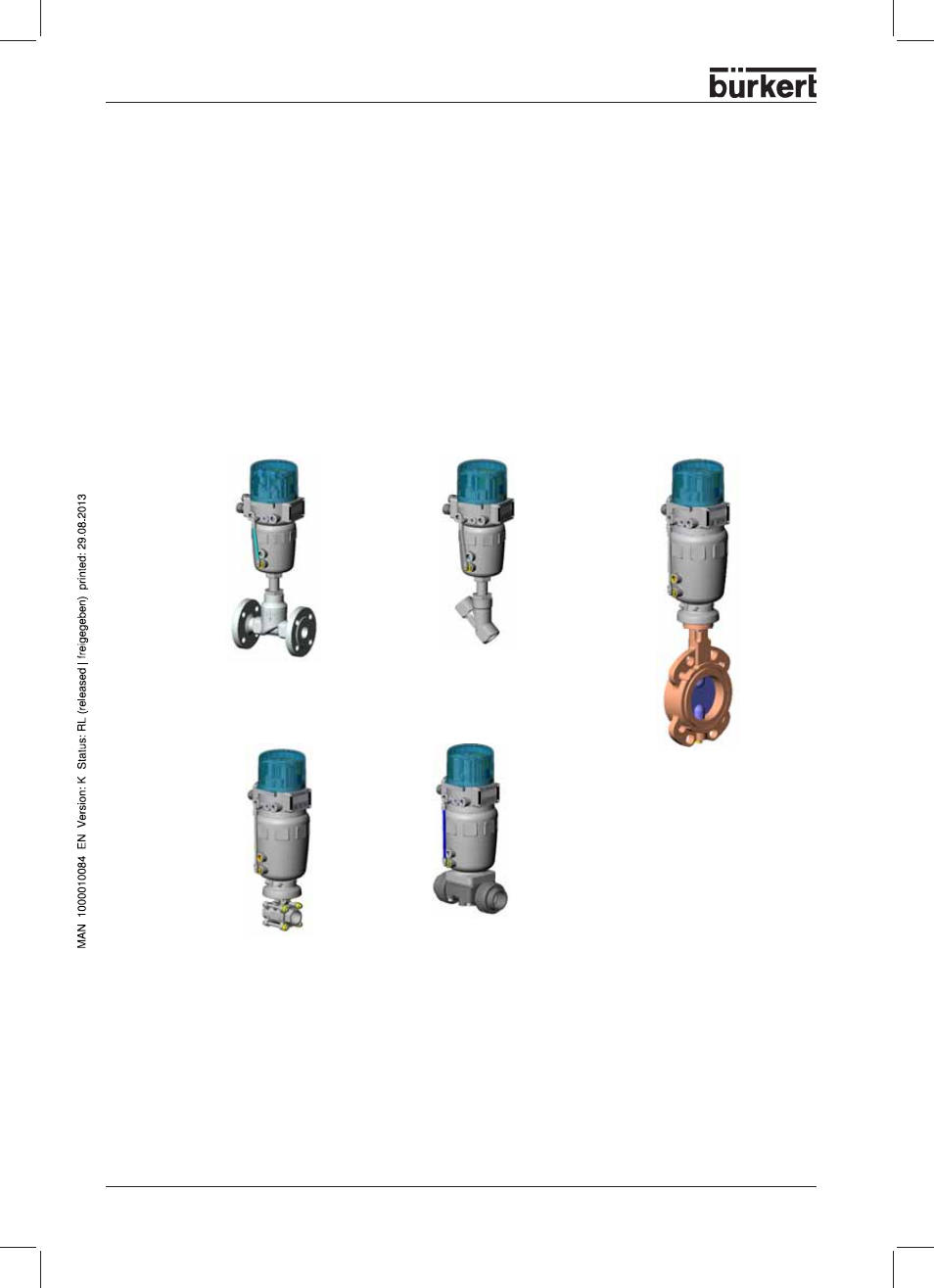

The figure below gives an overview of the possible combinations of TOP Control and various
pneumatically actuated valves. For each type, various actuator sizes and valve sizes are available (not
shown). More detailled information is to be found on the respective data sheets. The product range is
being extended continually.
TOP Control
Continuous
Type 8630
