After application of the supply voltage, the TOP Control Continuous is in operation. Carry out the
necessary basic settings and initiate self-parametrization of the TOP Control.
NOTE Further installation notes are to be found in the chapter Installation.
➔ Remove the cover with the cable bushings
to gain access to the terminals. This is done
by unscrewing the 4 self-tapping screws.
➔ Apply the setpoint signal and the supply
voltage to the respective terminals (see
Terminal configuration with cable bushings).
Terminal Allocation External connection
1 Setpoint +
2 Setpoint GND
5 Operating voltage +
6 Operating voltage GND
24 V DC ± 10 %
max. residual ripple 10 %
2
1 + + (0/4 ... 20 mA or 0 ... 5/10 V)
GND
5
6

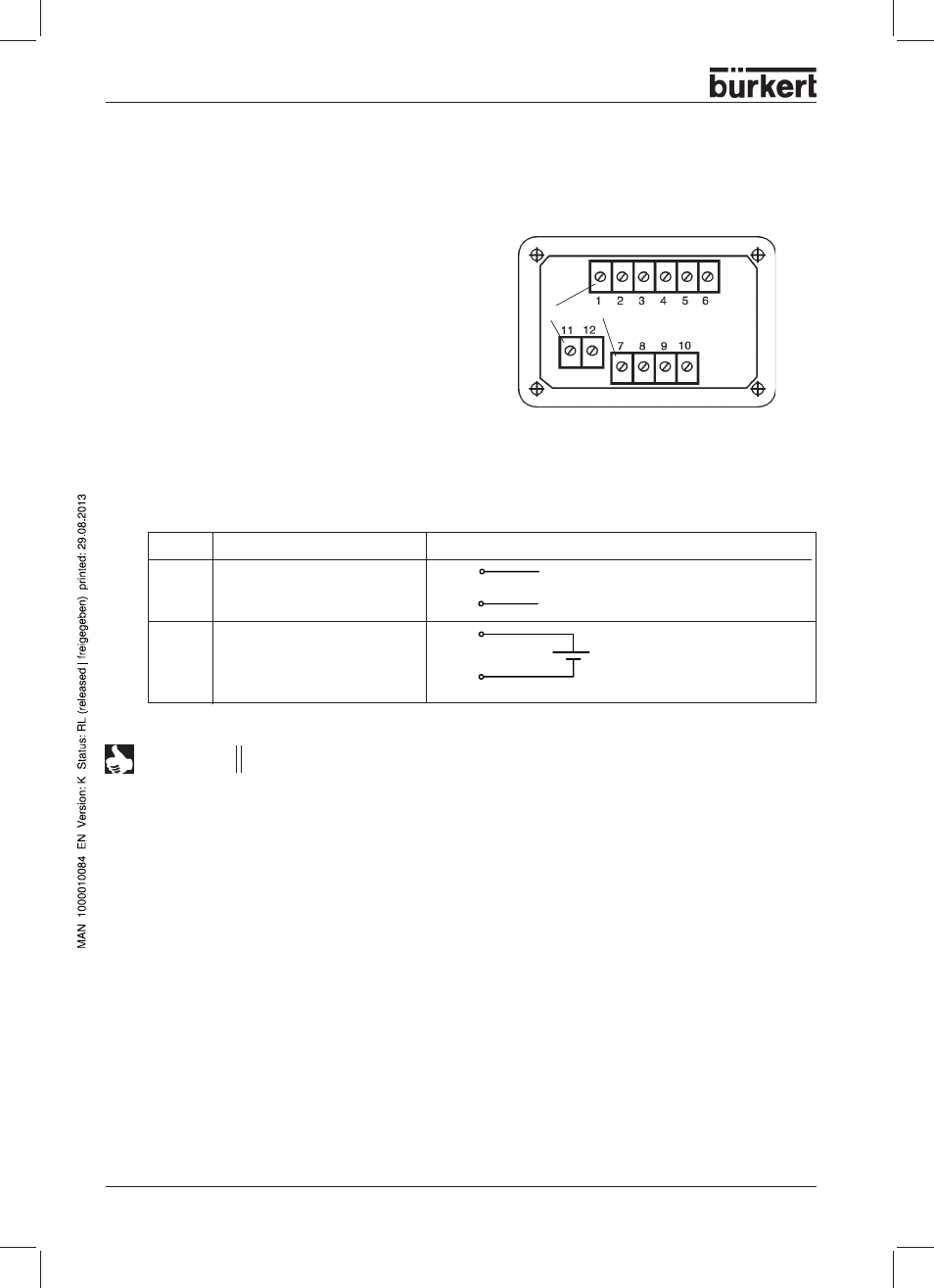

Terminal configuration with cable bushings
* Electrical installation - connection terminals for cable bushings
screw terminals
