Burkert Type 8630 - Manual (Page 64)

62 - 8630
O

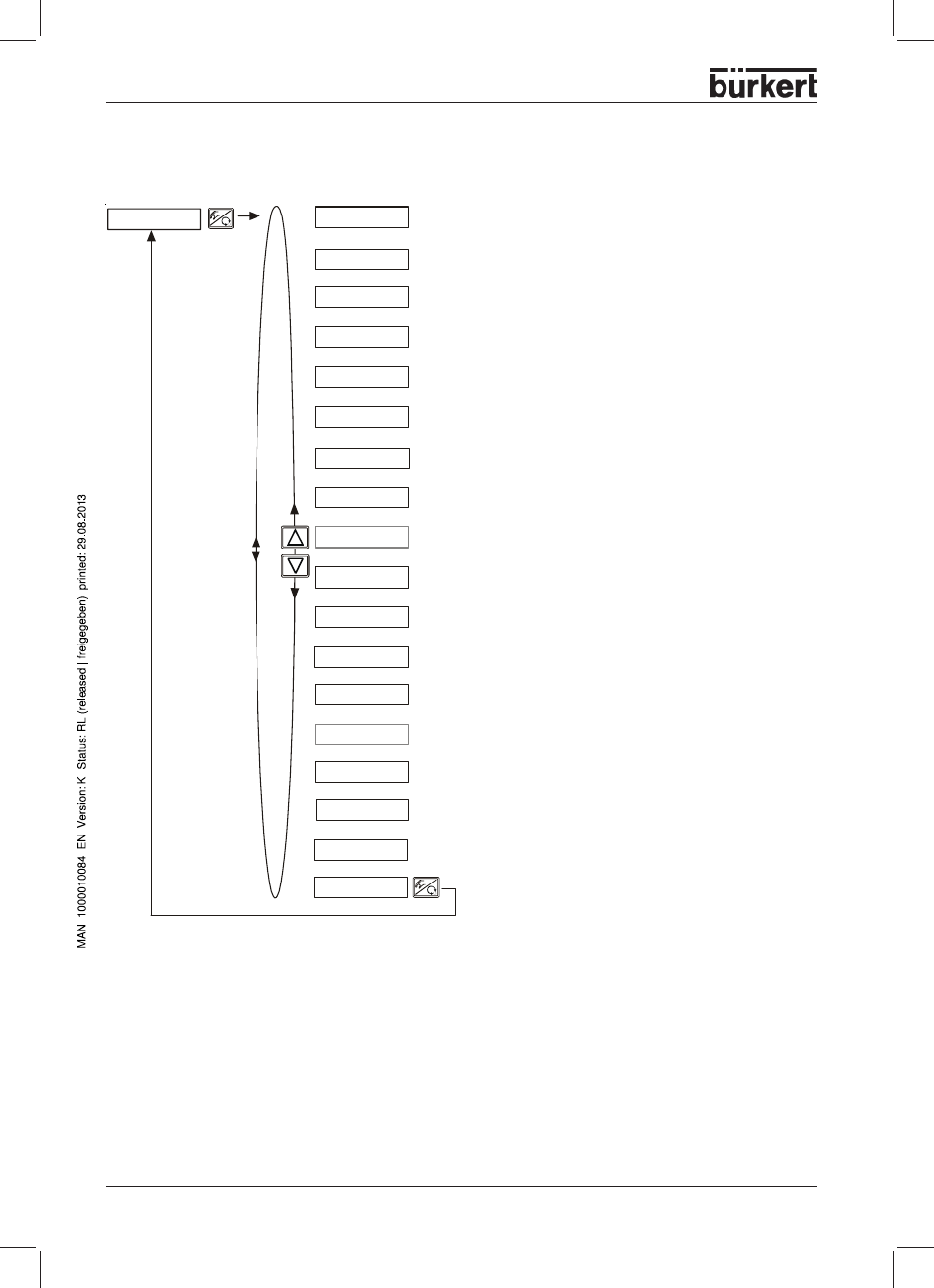

PERATION AND CONTROLLER FUNCTIONS
Supplementary Functions
Select the transfer characteristic between input
signal ans stroke (correction characteristic)
Tight closure function for positioners or
process controllers (if activated)
Sense of action between input signal ans setpoint
position
Allocation of state of pressurization of actuator
chamber (Port 2
1
) to actual position
Signal range splitting; input signal in % for which the
valvetransverses the entire stroke
Limitation of mechanical stroke range
Parametrization of positioner
(Parametrization of the PID process controller).
Without function in the version as positioner!
Code protection for settings
Limitation of correcting speed
Activation of binary input
(Configuration of the outputs, only with supplementary
board for analog feedback or binary outputs)
Calibration
Reset to factory settings
Enter safety position
Configure error recognition signal level
Configuration of the serial interface
ADDFUNCT
CUTOFF
DIR.CMD
CHARACT
DIR.ACT
SPLTRNG
X.LIMIT
X.TIME
X.CONTRL
P.CONTRL
CODE
BIN-IN
OUTPUT
CAL USER
SETFACT
SIG-ERR
SAFEPOS
ENDFUNCT
SER-I/O
