52 - 8630
O
PERATION AND CONTROLLER FUNCTIONS

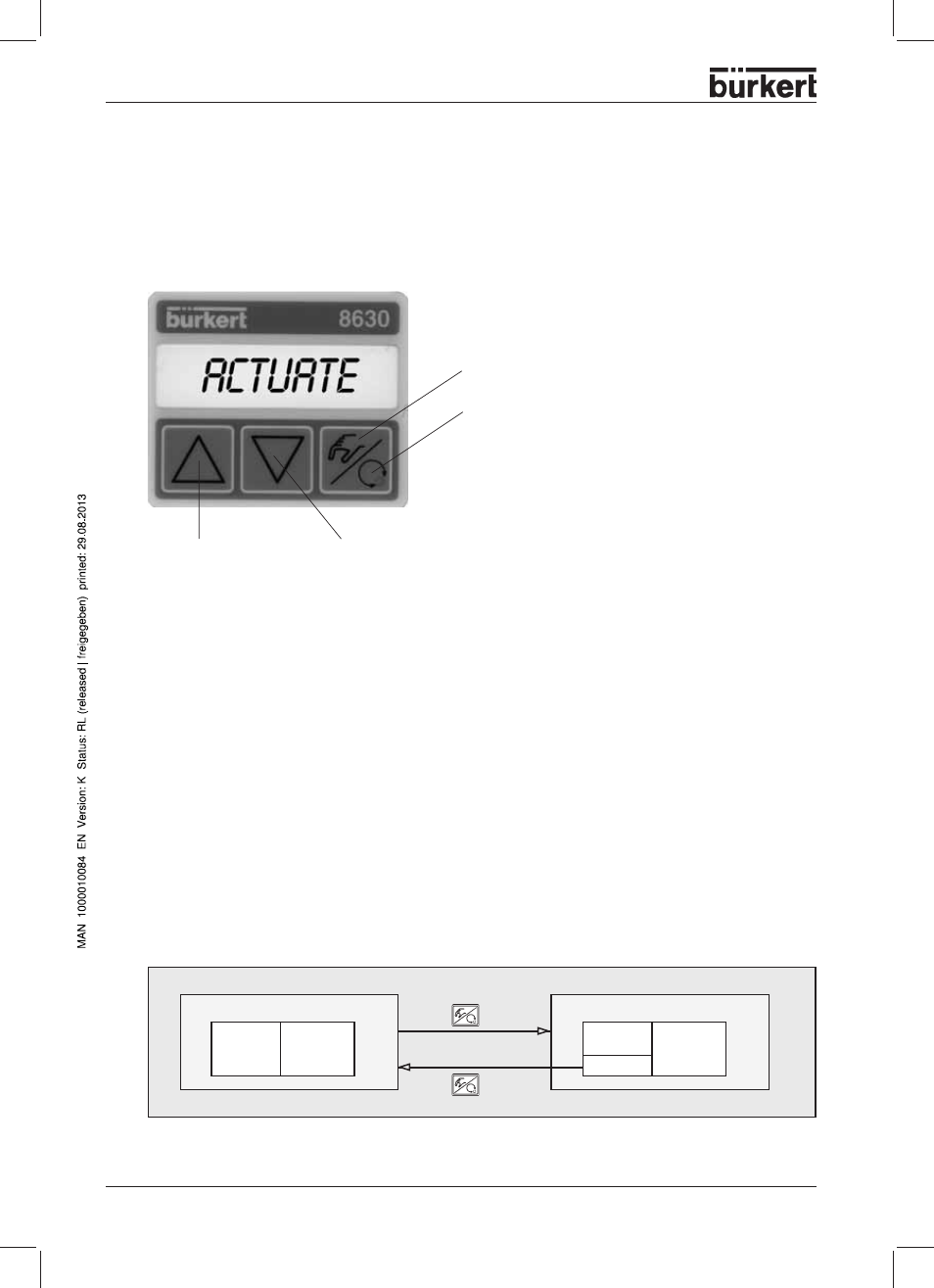

Operating and display elements
The TOP Control Continuous is equipped with a 3-key operating and display element with LC display.
The functions of the keys are described in the following sections.
Arrow key up Arrow key down
MANUAL/AUTOMATIC KEY
LED (yellow) in the MANUAL/AUTOMATIC-key
(see chapter
Operating the process controller)
Operating levels
Operation of the TOP Control Continuous is done via two operating levels:
• Process operating level:
After the device is switched on, the process operating level is active. In this level, you can switch
between the operating modes AUTOMATIC and MANUAL. In the AUTOMATIC mode, position or
process control (only for the process controller option) runs. In the MANUAL mode, the valve can be
manually opened and closed.
• Configuration level:
In the configuration level, you can specify on first commissioning the basic functions and configure
supplementary functions if needed.
Process operating level Configuration level
Basic
funktions
Supplemen-
tary
functions MANUAL AUTO-
MATIC
5 sec
End
