28 - 8630
S
YSTEM
D
ESCRIPTION

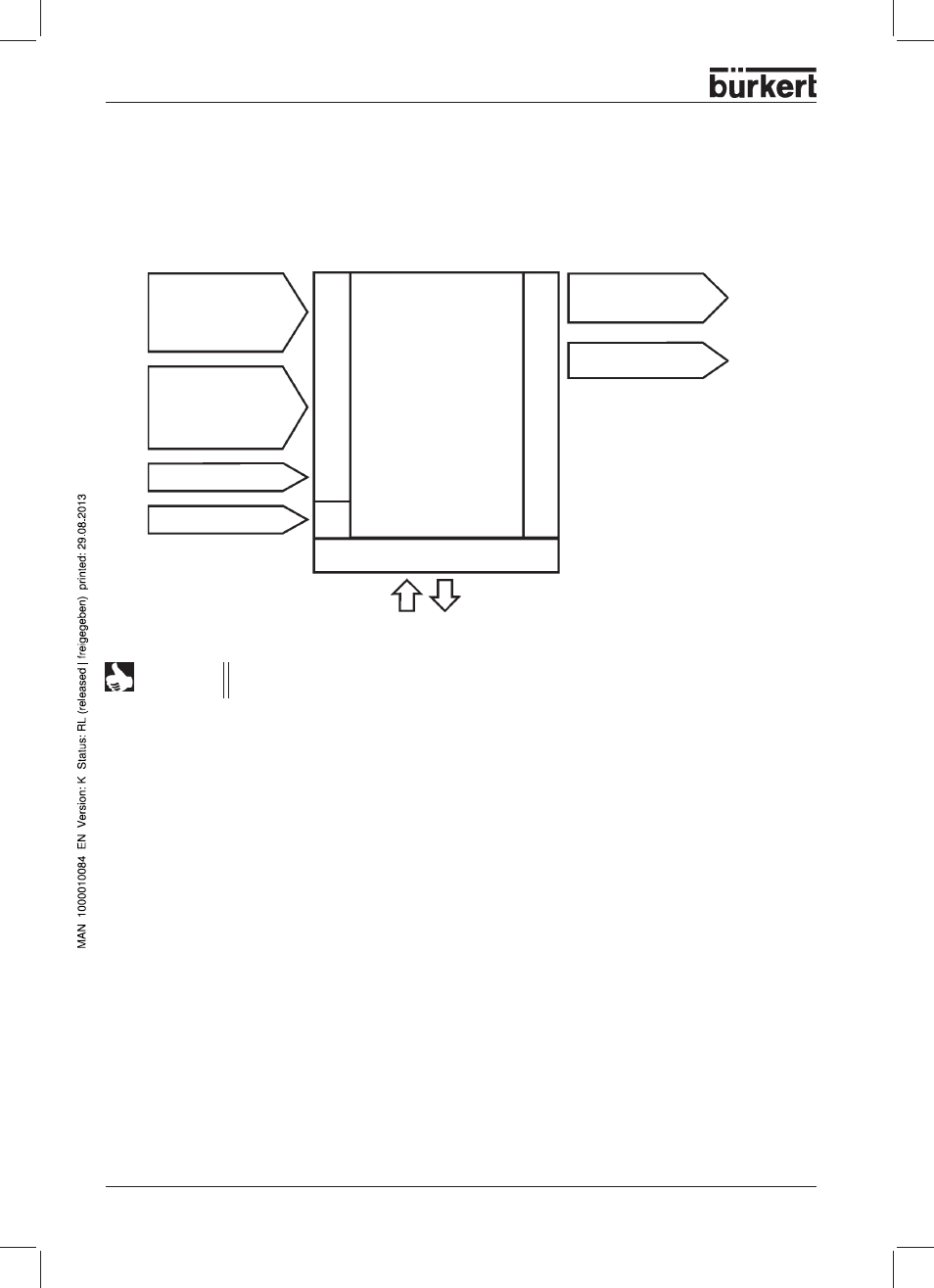

* Interface of the TOP Control Continuous in the variants with
cable bushings
Input for process setpoint*
4..20 mA
Frequency
Pt 100
(alternative to binary out-
puts)
24 V DC
Sup- ply
Inputs
Outputs
Operating unit
TOP Control
Continuous
(PG - variant)
2 binary outputs*
(alternative to input for process
setpoint)
Analog
position feedback
* Note:
The choice between a
process setpoint input and
two binary outputs is made
by positioning the jumper.
NOTE TOP Control Continuous Type 8630 is a 3-conductor device, i.e. the voltage supply (24 V
DC) is separate from the setpoint signal.
Inputs for position or process
setpoint
4..20 mA
0..20 mA
0..10 V
0..5 V
Binary input
