Appendix J – General Purpose Input Output Port Applications
260 Class Series 2 Programmer’s Manual

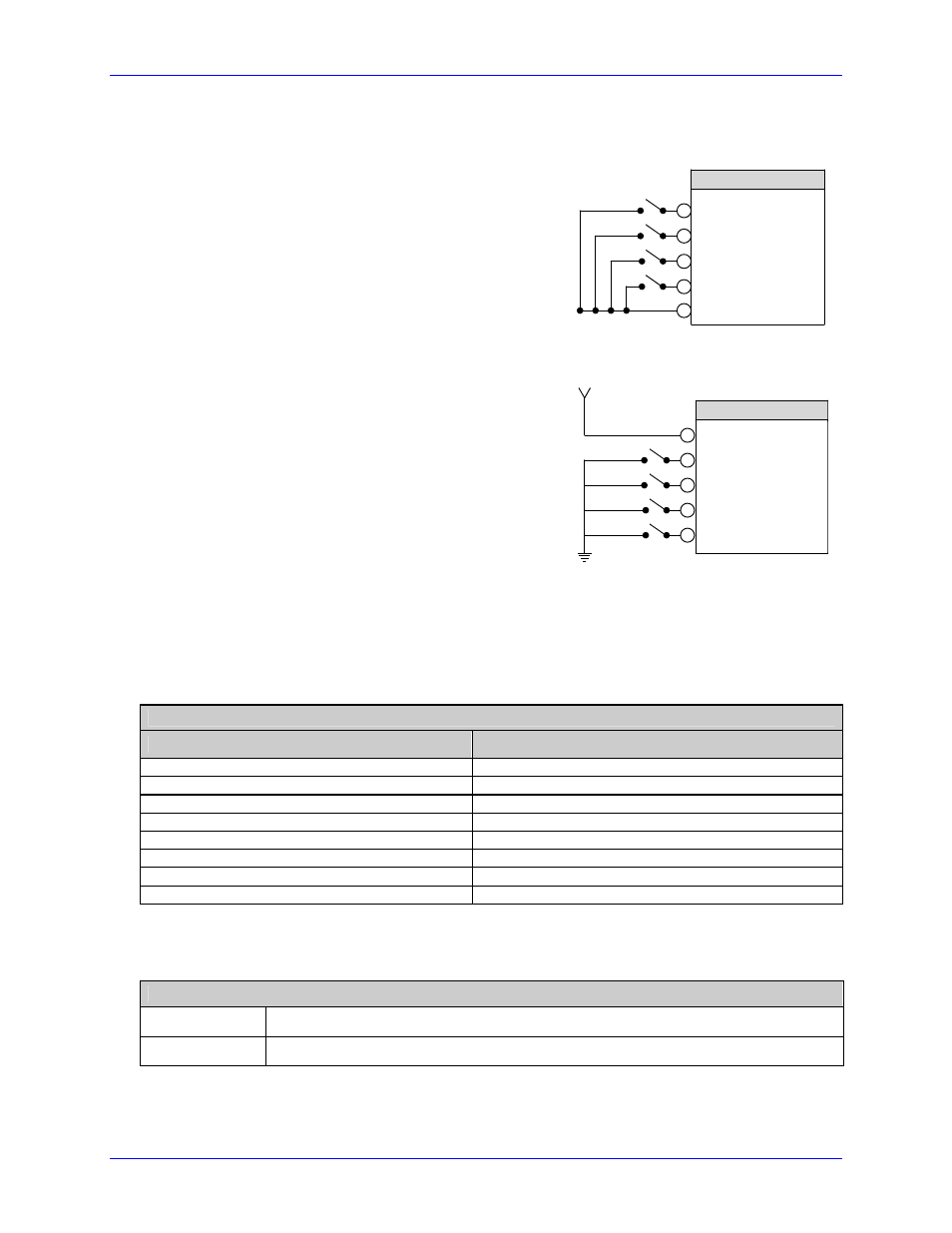

The Start of Print Circuit depends upon the applicator system’s requirements:
• For direct inputs –
Use the printer’s +5VDC and Ground to supply
the devices interfacing to the GPIO inputs (as
shown, right).
J2 - GPIO PORT
3
4
5
6
1
Start of Print
Slew Label
Pause Toggle
Reprint
Ground
• For isolated inputs –
Supply an external +5 VDC and ground,
remove JMP 7 and JMP 8 from the Applicator
Interface Card and follow the schematic shown
right.
3
4
5
6
2
Start of Print
Slew Label
Pause Toggle
Reprint
Vcc
Vcc = 5 VDC External Power Source
Ground
J2 -GPIO PORT
The Auxiliary Port (J1) is an RS-232 interface. Serial data transfer settings (such as baud
rate, word length, and parity) can be made using KcSP commands. These settings
must match the device that you are connecting. Jumpers JMP 1 – JMP 4 should be in
installed.
Applicator Interface Card (Type 1) Auxiliary Data Port
Pin Number(s) Signal
1 +5 VDC (0.5 Amp )
2 RX
3 TX
4 DTR
5 Ground
6 & 9 N/C
7 RTS
8 CTS
Indicators: The LEDs provide a visual indication of printer/applicator signal activity:
Applicator Interface Card (Type 1) Indicators
• Yellow LED Flash at power-up and when the outputs change state.
• Green LED Flash at power-up and when the inputs change state.
