Appendix J – General Purpose Input Output Port Applications

258

Class Series 2 Programmer’s Manual

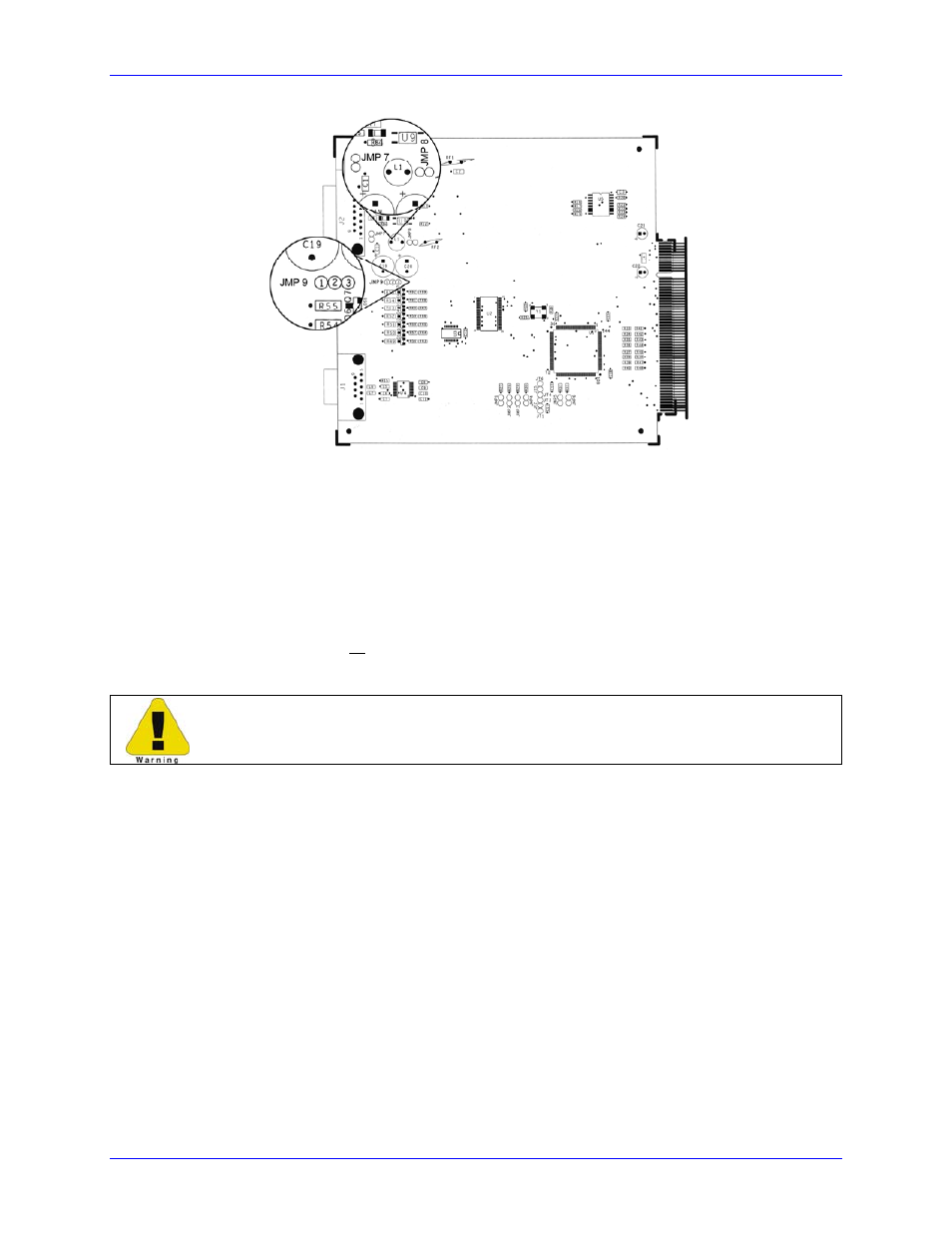

Applicator Interface Card (Type 1) Jumper Locations



The GPIO Port allows printer integration. Functions can be configured using the menu
system or via Kc commands. All configuration settings are saved in non-volatile
memory. Jumper settings are critical:

Jumper settings allow internal or external power distribution to the applicator circuitry.

Jumper settings allow + 5 or +24 VDC output signal levels.


Failure to configure the card for the device(s) you are connecting may result in damage

to the printer and/or the applicator.


The table below details the GPIO Port functions, and configurable settings:
