Atec Agilent-346a User Manual
Page 45
45
Designing and Probing with Target Connections
Agilent Logic Analyzers with 90-pin Pod Connectors

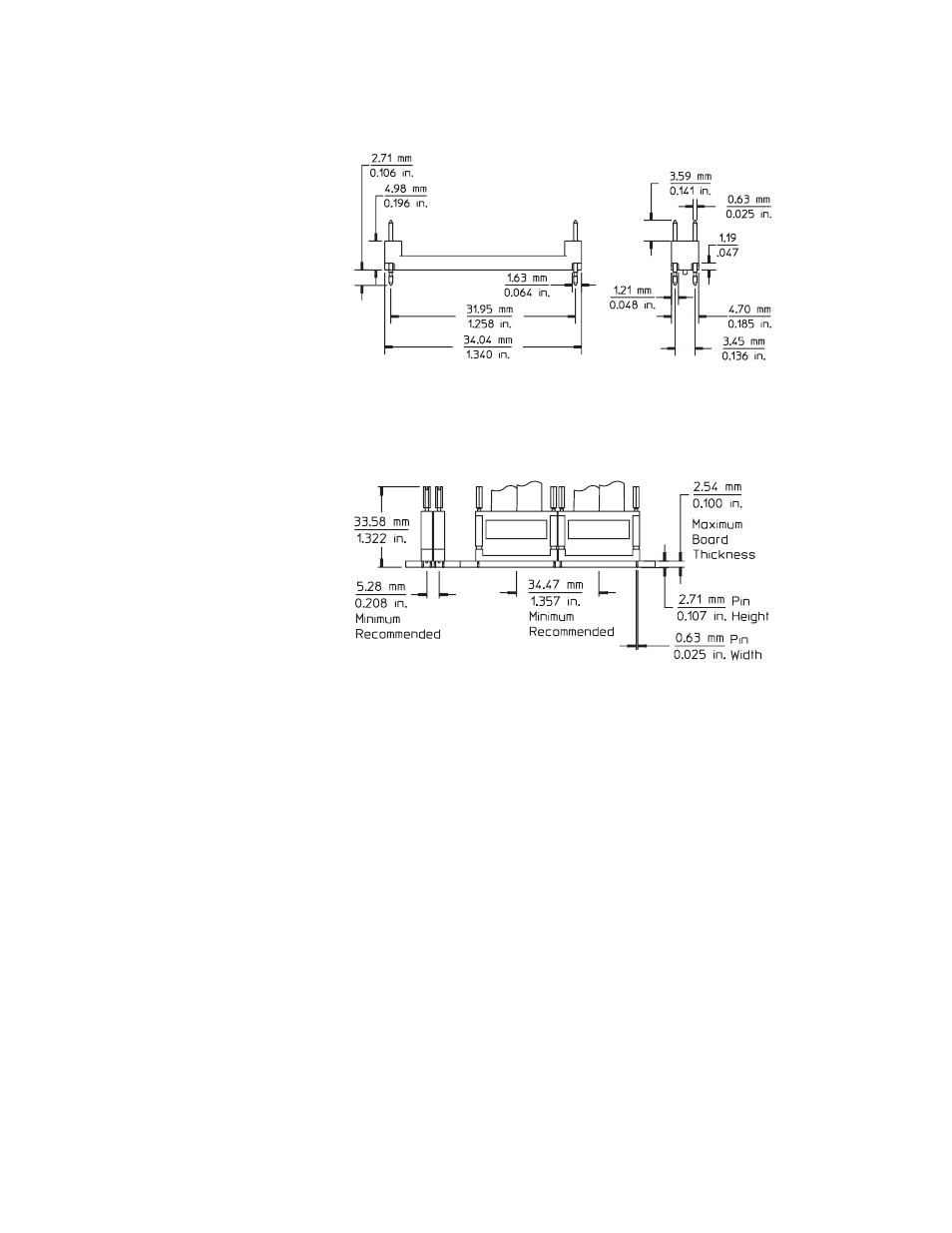

Figure 8.5. Pro Series soft touch retention module dimensions
Figure 8.6. Pro Series soft touch side-by-side dimensions
Pro Series Soft Touch Retention
Module Dimensions
The following dimensions show
the soft touch probe attached
to the retention module. The
retention module is mounted on
the PC board.
