Designing and Probing with Target Connections
Probing Individual Pins of High-Density Connectors
38-pin Mictor Adapter
Signals routed out to AMP Mictor
connectors can also be accessed
by other test equipment, such
as an oscilloscope.
The E5346-60002 plugs directly
into the Mictor connector and
brings all 32 signals out to
standard connector pins through
flex circuits, as shown in
Figure 6.1.

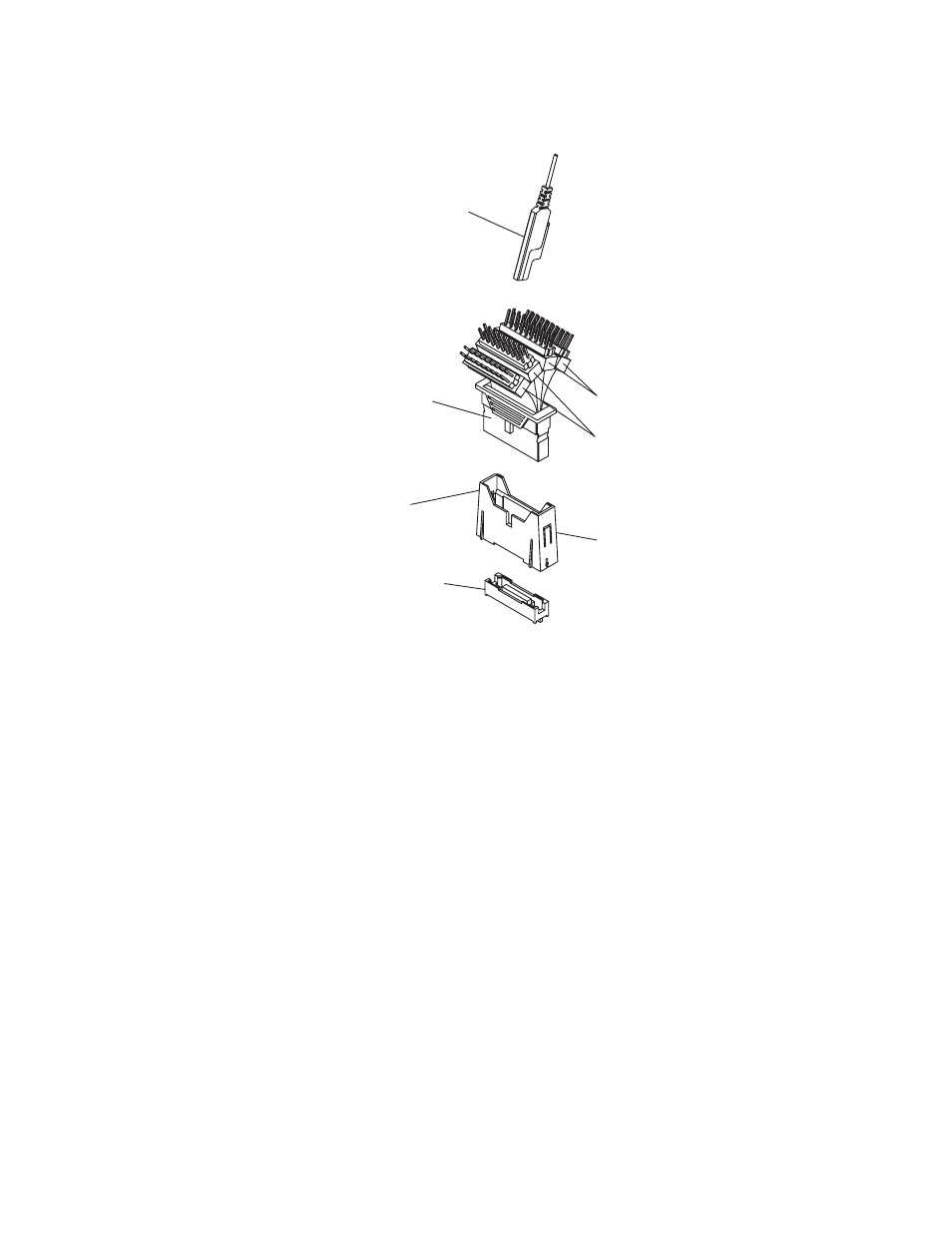

Figure 6.1. E5346-60002 Mictor break-out adapter
Probe
Multi-purpose
flexible cable
Pin 1 bevel
Mictor
Shroud
Even # probes
Odd # probes
