C-3 IPI 100 and IPI 200 Series • Mounting
Mounting the IPI 200 Series
The IPI 201 and IPI 204 intercoms must be attached to a device faceplate or AAP
wall plate and cabled before the device or wall plate is installed in a wall or
furniture. Unlike the IPI 100 Series intercoms, the IPI 200 AAP Series intercoms are
secured by attaching a clamp bracket to the back of the intercom after it has been
inserted through the front of the AAP plate.

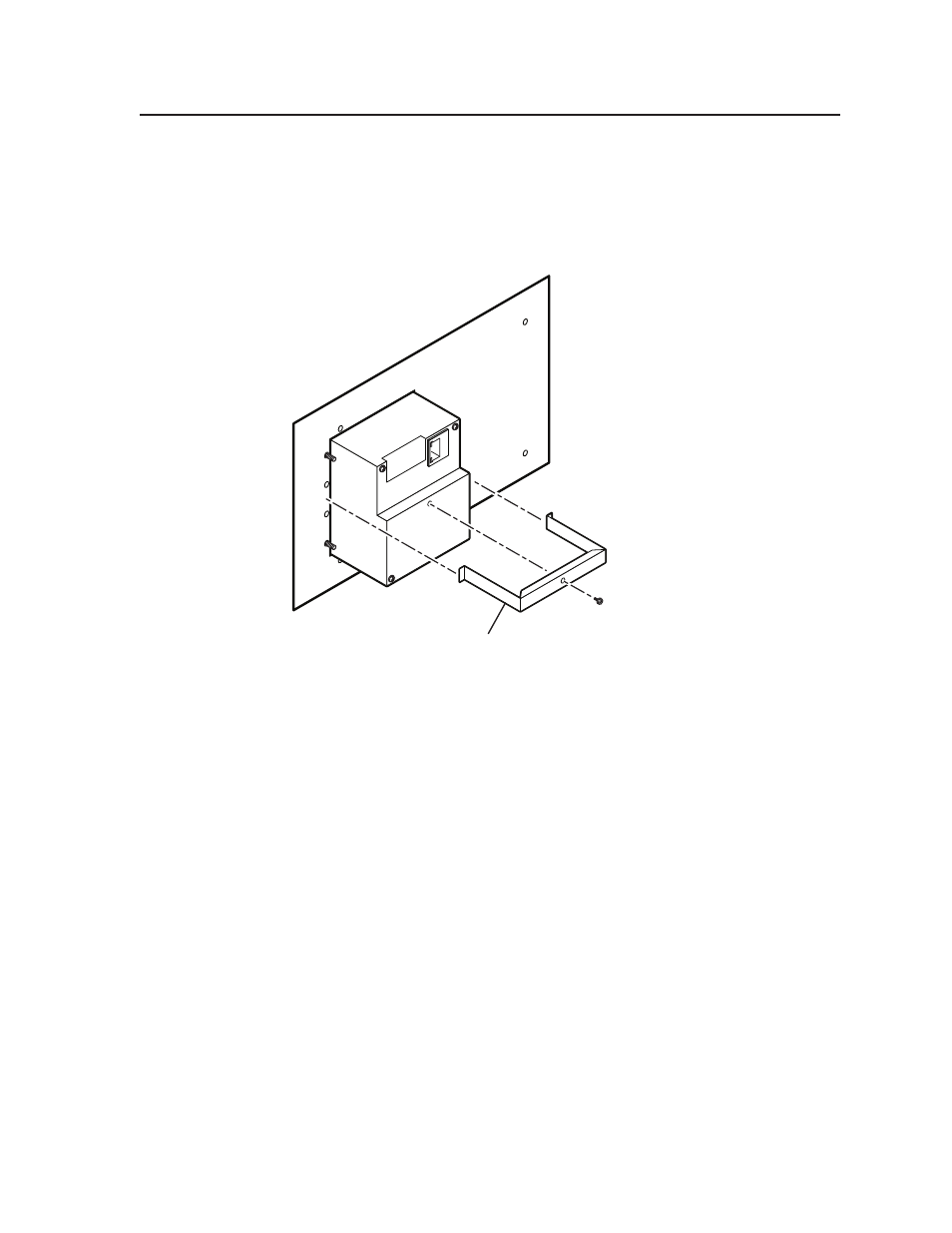

Extron
IPI 204 AAP
Intercom
(rear view)
Clamp Bracket
(included)
1. Before cables are attached, insert the IPI through the front of the device’s
faceplate or AAP mounting frame. Secure the IPI to the faceplate/wall plate by
attaching the provided clamp bracket.
2. Connect cables to the IPI. See “IPI Rear Panel Features and Cabling” on
page 2‑2 .
3. Mount the AAP mounting frame or other device to the wall, furniture, or rack
panel. Follow any special mounting instructions that came with that device.
