2-5 IPI 100 and IPI 200 Series • Installation
Sample Applications
There are several ways to make use of an IP Intercom System. To see what you can
do with the IPIs, look at the sample scenarios provided in this section.

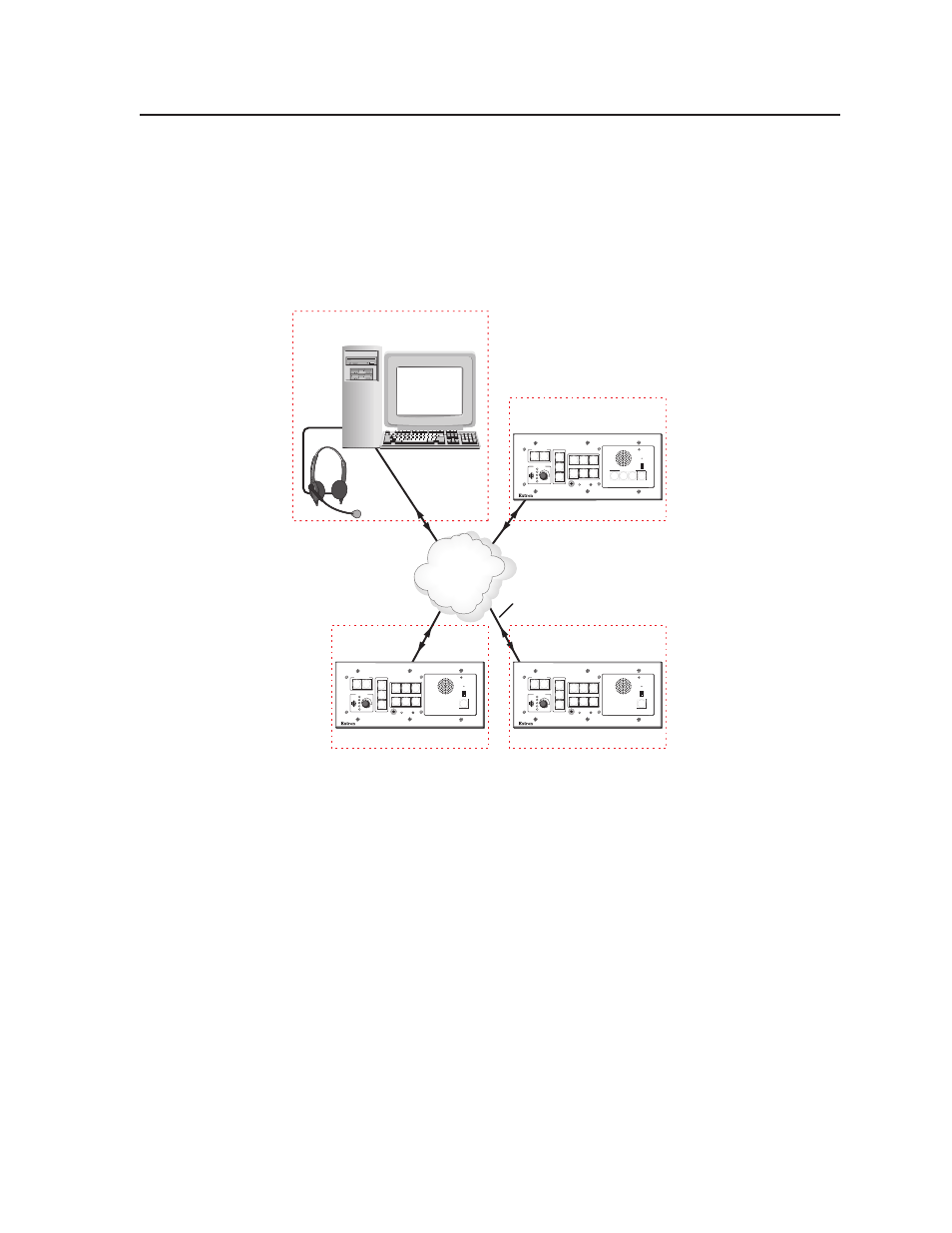

Single PC to panel
For a simple intercom system, connect one or more panels to a PC that serves as the
help desk console.
TCP/IP
Network
Classroom
IP 10.XX.XX.02
MLC 226 IP AAP IPI 101 AAP
PROJECTOR
1 2 3 4 5 6 VOLUME
CONFIG IR
ON OFF AUTO IMAGE
MUTE
LAPTOP
VCR DVD AUX VIDEO
PC
MLC 226 IP
INTERCOM MIC ON
LEVEL HIGH MED LOW
IPI 101
PUSH TO TALK HELP
DESK
Lab
IP 10.XX.XX.03
Straight-through
Network Cable
MLC 226 IP AAP IPI 101 AAP
PROJECTOR
1 2 3 4 5 6 VOLUME
CONFIG IR
ON OFF AUTO IMAGE
MUTE
LAPTOP
VCR DVD AUX VIDEO
PC
MLC 226 IP
INTERCOM MIC ON
LEVEL HIGH MED LOW
IPI 101
PUSH TO TALK HELP
DESK
Office
IP 10.XX.XX.04
IPI 104 AAP
PROJECTOR
1 2 3 4 5 6 VOLUME
CONFIG IR
ON OFF AUTO IMAGE
MUTE
LAPTOP
VCR DVD AUX VIDEO
PC
MLC 226 IP
Help Desk Console
IP 10.XX.XX.01
Audio
Card
INTERCOM MIC ON
LEVEL HIGH MED LOW
IPI 104
PUSH TO TALK
1 2 3 4
SECURITY LAB ADMIN
OFFICE HELP
DESK
1. Connect one or more IPI 201, IPI 204 units, or MLC 226 IP(s) with one or more
IPI 101 AAP and/or IPI 104 AAP units to a network using straight‑through
cable.
2. Using a PC in the network, configure the IPI systems, assigning the PC’s IP
address to one button on each IPI, using Global Configurator, the unit’s Web
pages, or the ARP command ( see chapter 4 ). The button light changes from red
to low amber to indicate it is configured and connected to the PC.
3. The intercom user presses and holds the button assigned to the PC to initiate
talk mode. The button glows bright amber, and the Mic On LED lights.
4. The user speaks into the intercom. Audio is output through the PC speakers at
the help desk console.
5. The intercom user releases the button when done speaking.
6. The console operator clicks the Talk button (in the software) or presses the PC’s
space bar to respond.
