4-5 IPI 100 and IPI 200 Series • Initial Configuration

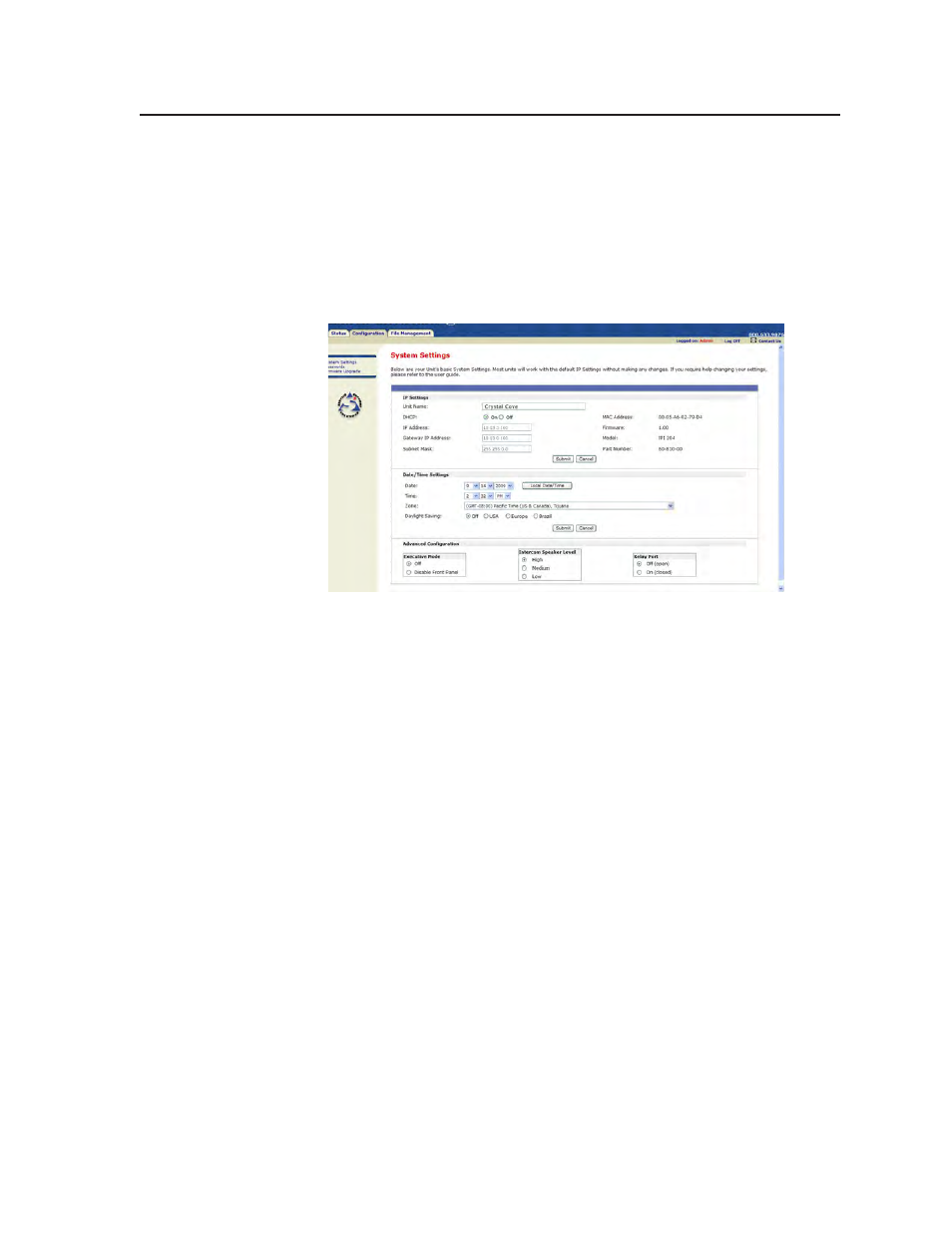

9 . Change the IP Address and Subnet Mask fields to the desired IP address and
subnet mask.
10 . Click the Submit button.
The new IP address and subnet mask are assigned to the device, and the Web
browser connection is immediately lost.
The device, with its new IP address and subnet mask is now ready to be
connected to your A/V network.
To return the local PC to its original TCP/IP settings:
1
. Close the Web browser.
2 . Disconnect the Ethernet crossover cable from the PC and the device.
3 . Return to the TCP/IP Properties dialog box on the PC.
4 . Return the IP address, Subnet mask, Default gateway, and DHCP fields to
their original settings.
5 . Reboot the PC.
