SIS Programming and Control, cont’d
IPI 100 and IPI 200 Series • SIS Programming and Control B-4
Commands and Reponses
Using the command/response table
The IPI 201/204 Series intercom can be controlled via either a Telnet (port 23)
or RS‑232 connection using ASCII commands. Or it can be controlled via a Web
browser (port 80) connection using URL‑encoded commands. The ASCII and URL
commands listed in the table starting on page B‑8 perform the same functions, but
they are encoded differently to accommodate the requirements of each port (Telnet
or browser).

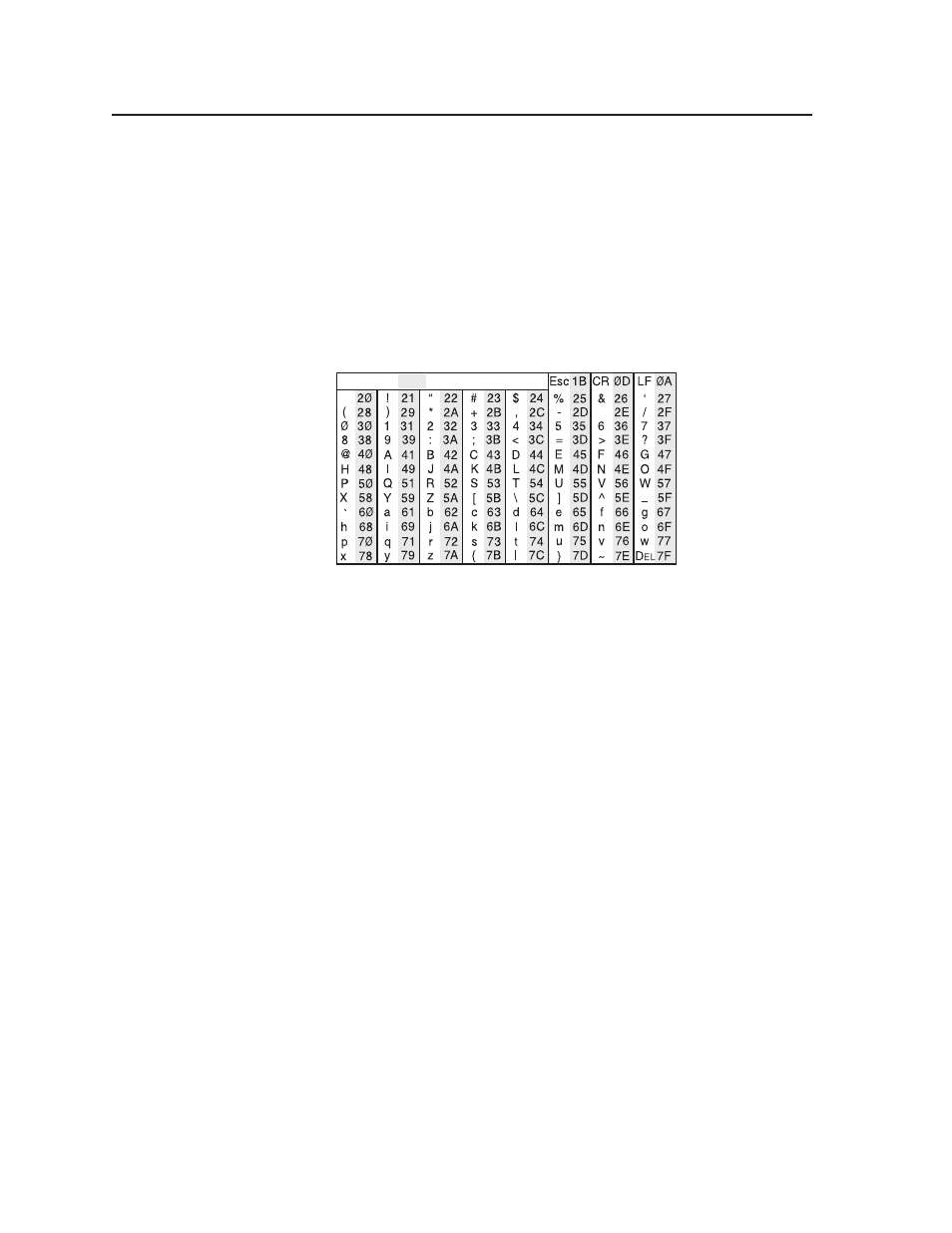

The ASCII to hexadecimal (HEX) conversion table shown below is for use with the
command/response tables.
ASCII to HEX Conversion Table
Space
.
The command/response table lists valid ASCII (for Telnet or RS‑232) command
codes, the corresponding URL (uniform resource locator) encoded (for Web
browsers) command codes, the IPI’s responses to the host, and a description of the
command’s function or the results of executing the command.
• Upper and lower case characters may be used interchangeably in the command
field unless otherwise specified.
• Commands may be sent back‑to‑back without spaces (for example, 11S0X4Q).
• Numbers can be entered with leading zeroes, as 1, 2, or 3 digits.
• There are a few differences in how to enter the commands depending on
whether you are using Telnet or a Web browser.
o When using these commands through a Web browser, the URL reference
is used to shorten the examples. “URL” refers to the full URL of the
intercom and Web page reference including all path information (e.g.,
http://192.168.100.10/myform.htm).
o To send any of the commands using a Web browser you must prefix them
with the full URL followed by ?cmd=.
