A-5 IPI 100 and IPI 200 Series • Specifications, Part Numbers, Accessories
General
External power supply ................. 100 VAC to 240 VAC, 50‑60 Hz, external; to 12 VDC, 2 A, regulated
Power input requirements ........... +12 VDC, 0.25 A
Temperature/humidity ................ Storage: ‑40 to +158 °F (‑40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling ........................................... Convection, no vents
Mounting
Rack mount ........................ Yes, with optional faceplate and rack mounting kit
Furniture mount ................ Yes, furniture‑ and wall‑mountable with optional faceplate and mounting
kits
Enclosure type ............................... Metal faceplate
Enclosure dimensions
IPI 201, IPI 204 faceplate... 4.5" H x 4.6" W x 0.1" D (11.4 cm H x 11.7 cm W x 0.3 cm D)
(fits some 2 gang boxes)
IPI 201 AAP, IPI 204 AAP faceplate
2.8" H x 3.5" W x 0.1" D (7.1 cm H x 8.9 cm W x 0.3 cm D)
(four space AAP plate)
Device ................................. 2.8" H x 2.7" W x 1.85" D
(6.9 cm H x 6.6 cm W x 4.9 cm D)
(Depth excludes buttons. Allow at least 2.25" (5.5 cm) depth in the wall/
furniture.)
Extron
IPI 204
INTERCOM
MIC ON
CONFIG
PUSH TO TALK
1 2 3 4
ROOM
101
LAB ADMIN
OFFICE
HELP
DESK
POWER RELAY
C NO
AUDIO OUT
LAN
RESET

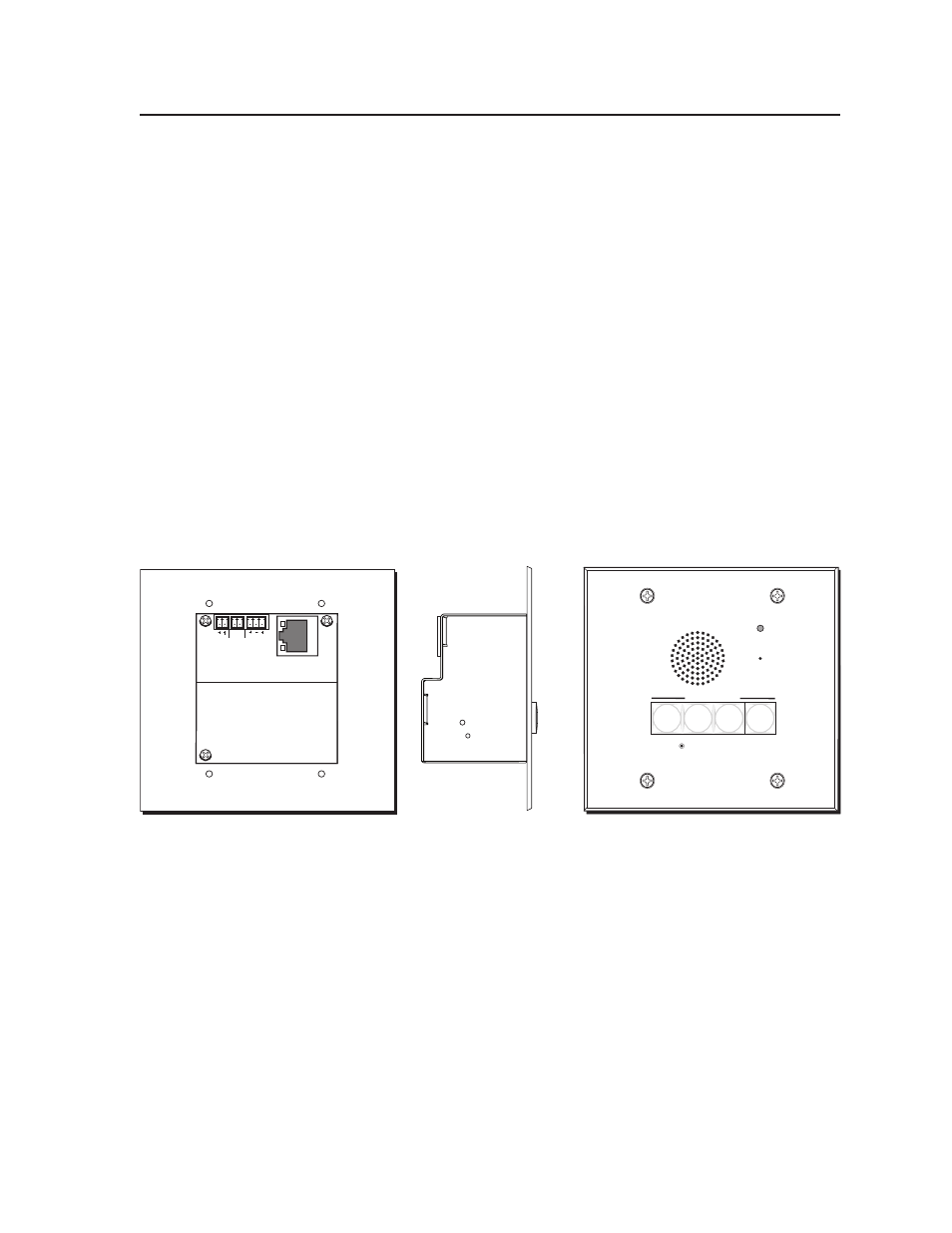

Front IPI 204 Rear Left Side
