Installation, cont’d
IPI 100 and IPI 200 Series • Installation 2-4
MLC Audio Connection
The MLC 226 IP Series controllers that support IPI intercom panels also have a rear
panel, line level audio output port that can be connected to local, powered speakers

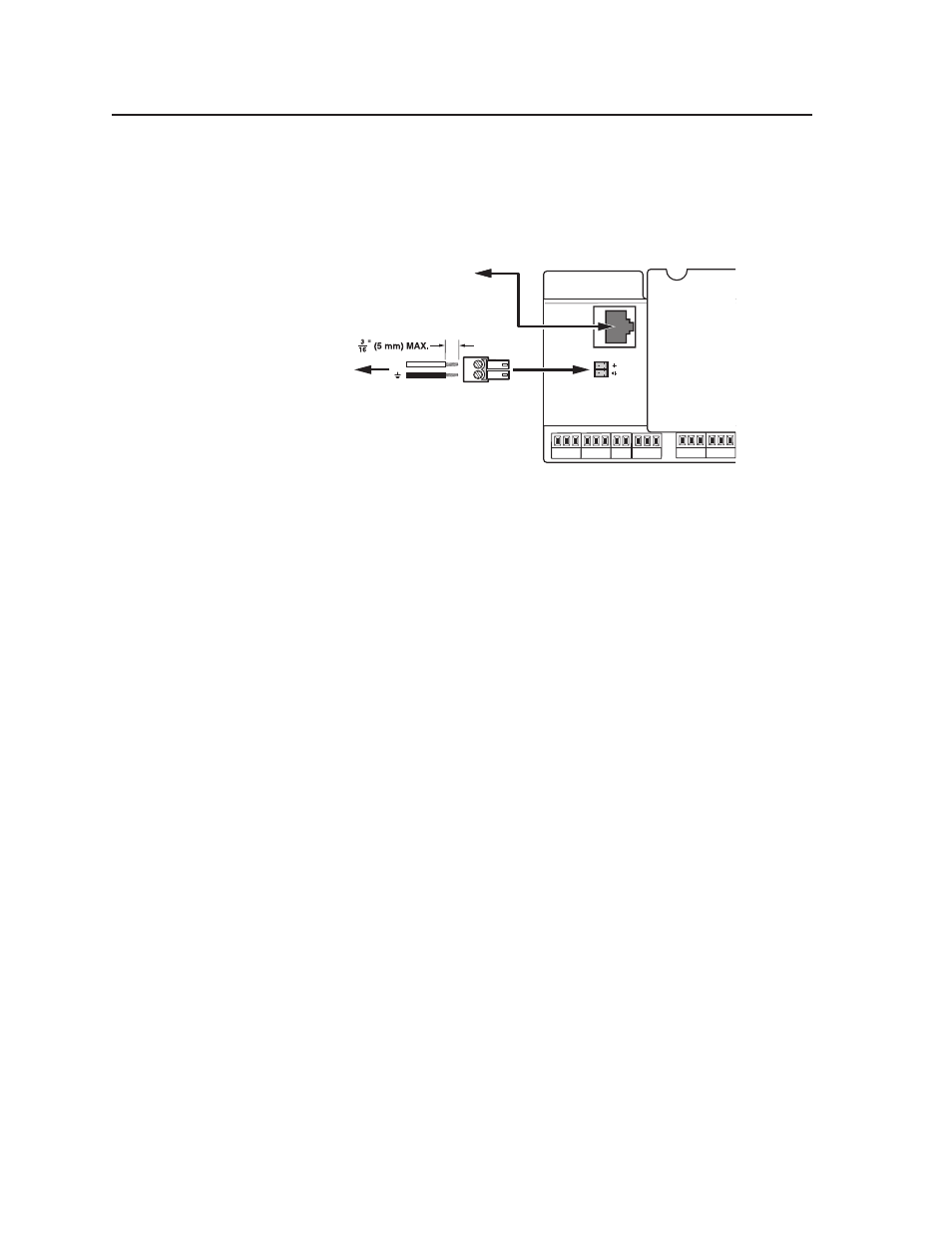

or to any audio or paging system. See the wiring guide in the illustration below.
MLC 226 IP Rear Panel MLC 226 IP Rear Panel
R
INTERCOM
A
UDIO OUT
To/from the IPI 104 AAP
or IPI 101 AAP
Rear Panel Intercom Port
To a Speaker,
Audio System, or
Paging System
Captive Screw
Connector
+
Do not tin the wires!
N The volume for this audio output can be adjusted via software only.
