IPI 100 and IPI 200 Series • Installation 2-2
Installation

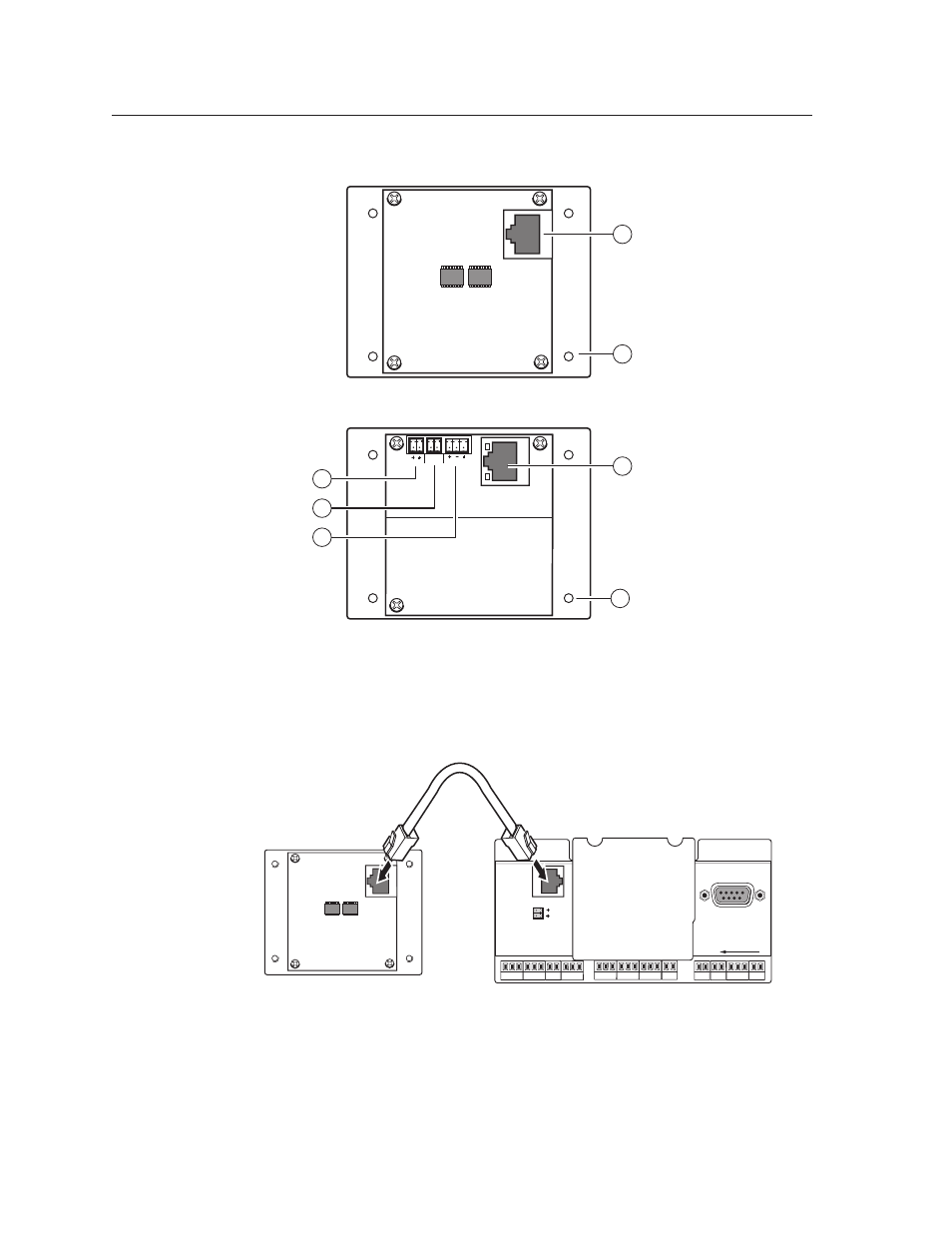

IPI Rear Panel Features and Cabling
POWER RELAY
C NO
AUDIO OUT
LAN
Power
Contact
Relay
Audio Out
IPI 104 AAP, IPI 101 AAP
Rear Panel
AAP Mounting Screws (4)
Intercom Port 1a
2
IPI 204 AAP, IPI 201 AAP
Rear Panel
LAN Port 1b
AAP Mounting Screws (4) 2
3
4
5
Ä
Intercom port (IPI 101 AAP and IPI 104 AAP only) — This port is used for power,
control, and voice data communication with the MLC. Plug one end of a standard,
straight through, CAT 5, CAT 5e, or CAT 6 cable terminated with RJ‑45 connectors
into this port. Plug the other end of the cable into the Intercom connector on the
MLC 226 IP’s rear panel, as shown in the following figure.
HOST
CONTROL
R
1=DIGITAL I/O
2=Tx 3=Rx 5=GND
38400, N, 8, 1
PRESS TAB WITH
TWEEKER TO REMOVE
INTERCOM
A UDIO OUT
LAN
IPI 101 AAP or IPI 104 AAP
Rear Panel MLC 226 IP Rear Panel
<100’ (30.4 m)
C This is not an Ethernet LAN connection. Do not connect these ports to
the Ethernet.
N A 12 inch (30.5 cm) CAT 6 cable is included with each IPI. If you choose to
terminate your own cable, the cable must be no longer than 100 feet (30.4 m).
Cables must be terminated to the T586A or T586B standard and both ends of a
cable must be wired to the same standard (
see cable wiring on the next page ).
