4-46 Using the Graphical “W
ATER
LOG” Software
DH-21

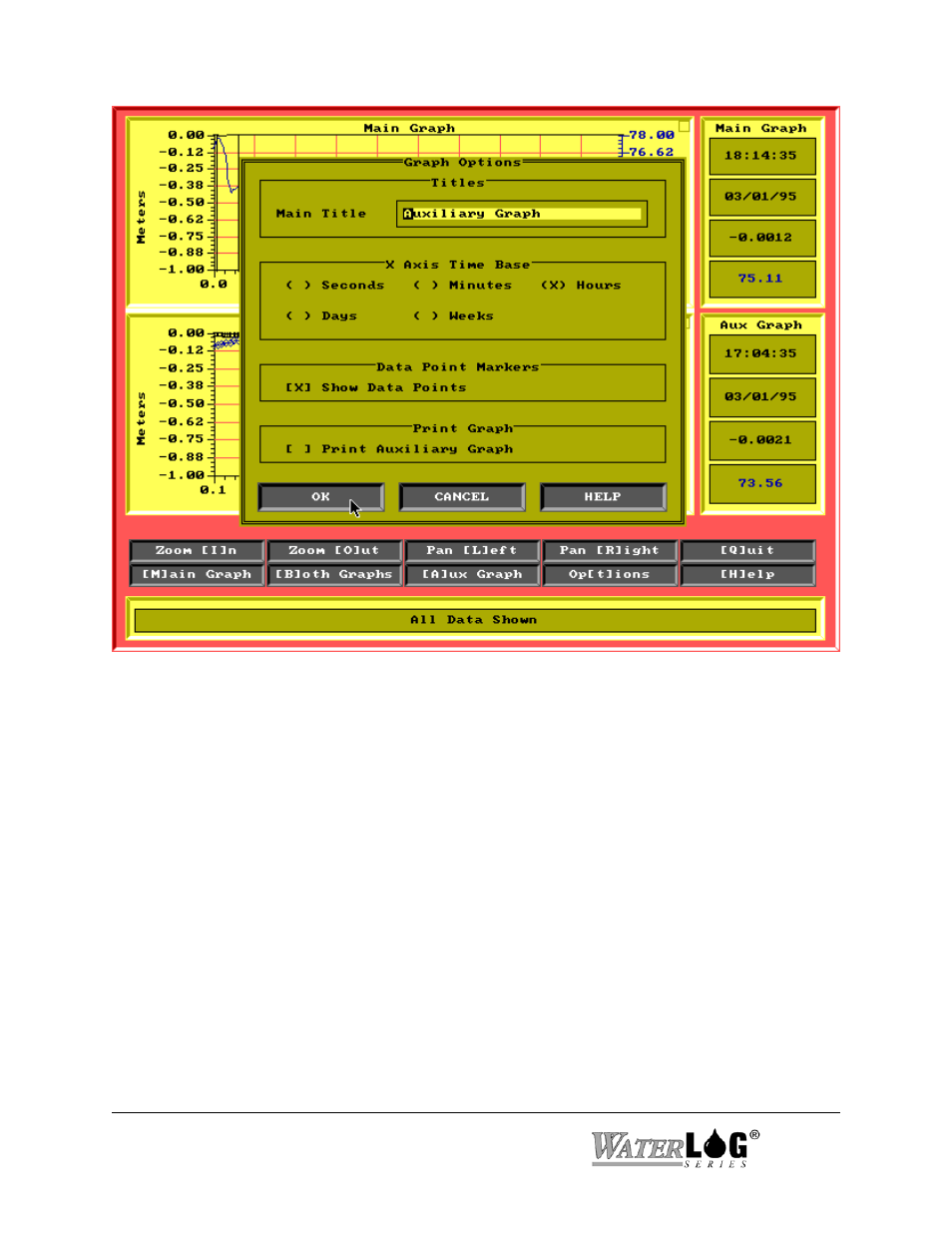

Figure 4-29. Graph Options
The auxiliary graph may be printed by turning on the “Print Auxiliary Graph” option. The
auxiliary graph is the only graph that can be printed. Normally, you will make any desired
adjustments in the graph and then print it. If you leave the auxiliary graph as it was first
displayed, it will be the same as the main graph, with the exception of the graph title. This
provides a way to print the main graph. When this option is enabled, another screen will be
displayed allowing specific printing options shown in Figure 4-30.
Printer Type:
The “Printer Type” option is a list of printers supported by this software. The item at the
top of the list is currently the active printer.
Printer Port:
The printer is expected to be connected to one of the parallel ports, LPT1 or LPT2. To
print the graph, select the appropriate port. It is also possible to print the graph to a file
and print it at a later time. If it is printed to a file, another window will pop up asking for
a file name.
