4-32 Using the Graphical “W ATER LOG” Software
DH-21
characters each. There is no wrapping feature between lines, therefore, each line needs to be
edited independently. If the INSERT key is pressed, you can insert characters until the maximum
length of 40 characters is reached.

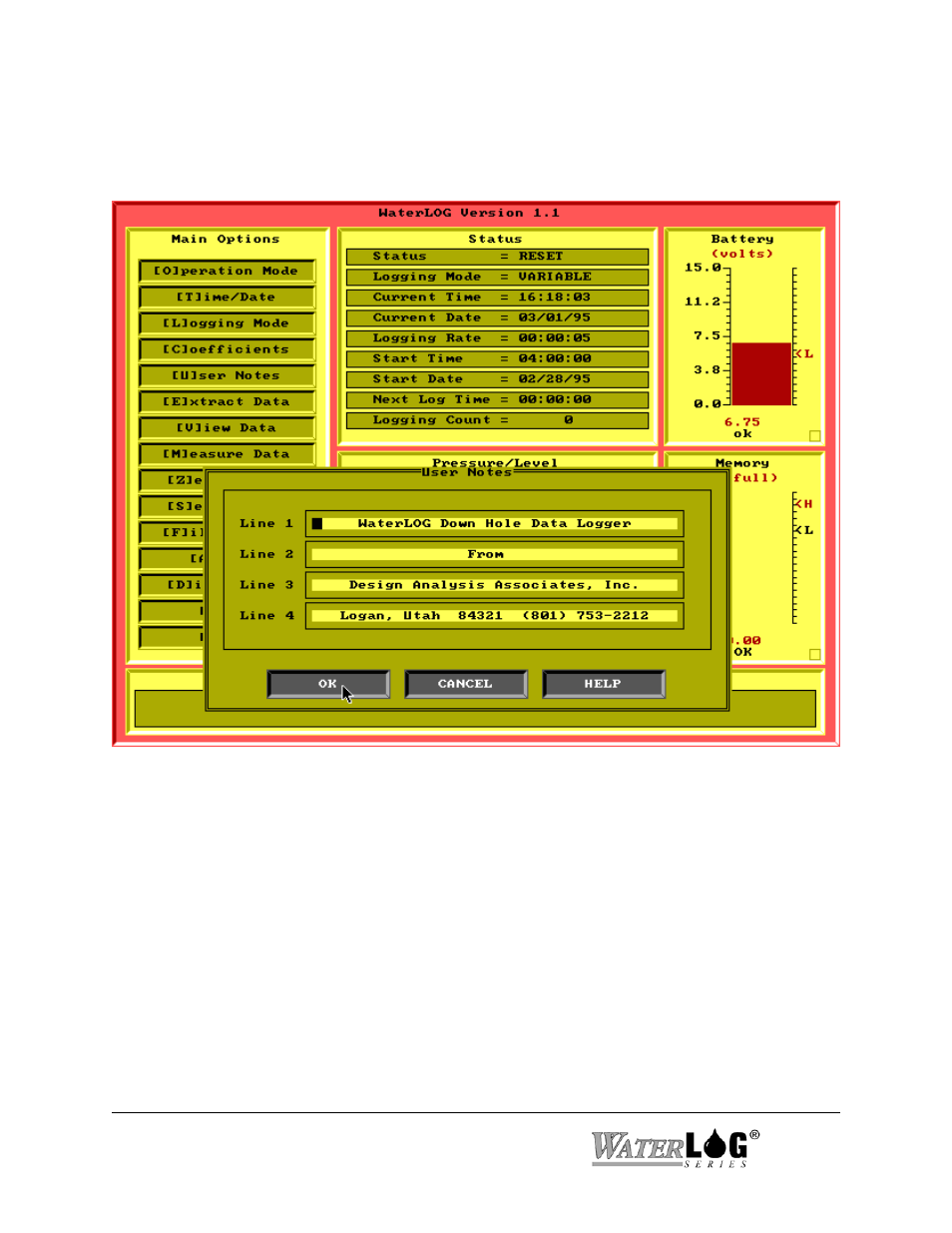

Figure 4-18. User Notes Option
The User Notes can be used to store information while the sensor is logging. This is useful for
entering site conditions, for example: “Jan 1, 95 Replaced Battery”.
4.4.6 Extract Data Option
You can extract data that is stored in the FLASH EEPROM shown in Figure 4-19. You can select
to transfer all the data stored in the “
W ATER LOG” or transfer only the last xxx scans in memory
(where xxx is a number between 1 and the total number of scans available) or transfer only the
new data stored from the previous download.
