4-54 Using the Graphical “W

ATER

LOG” Software

DH-21

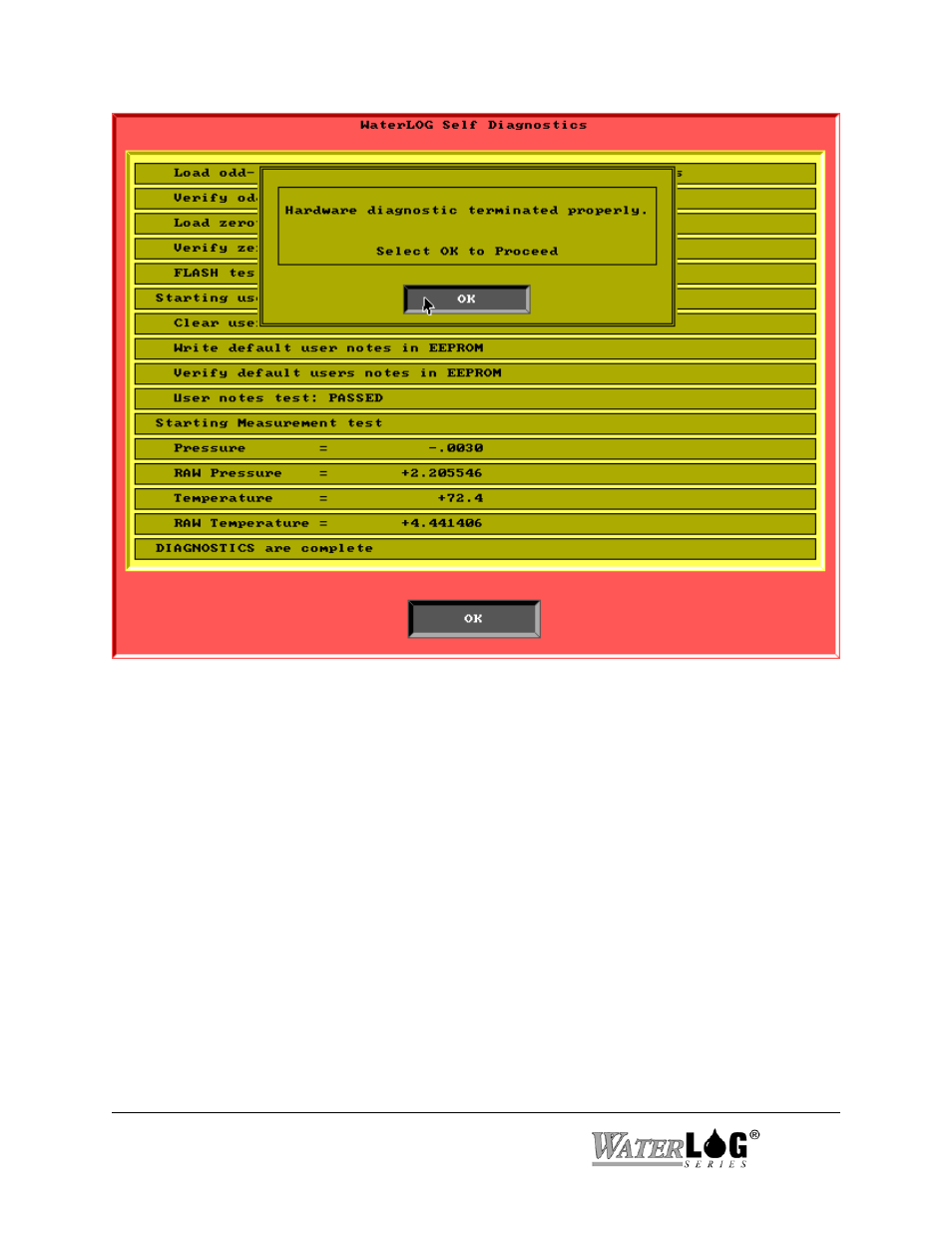

Figure 4-37. Self-Test Diagnostic Display

4.4.12 File Option

The File Options shown in Figure 4-38 provide the means to save the current settings to a disk
file as a setup file, and to retrieve a setup file previously stored on disk. This makes creating,
saving and retrieving setups very simple.

Setup information can be edited with or without a sensor being connected to the PC. There are
some items in the main options that must have a sensor connected to operate, and these items are
not saved to the setup file. There are also some options that always default to some value at
startup, and are not saved. The list below shows the options that are not saved to a setup file.

Time and date functions.
Mode of operation.
Extract data.
Sensor information.

Force measurement.
Zero Sensor.
Diagnostics.
File options.
