4-40 Using the Graphical “W

ATER

LOG” Software

DH-21

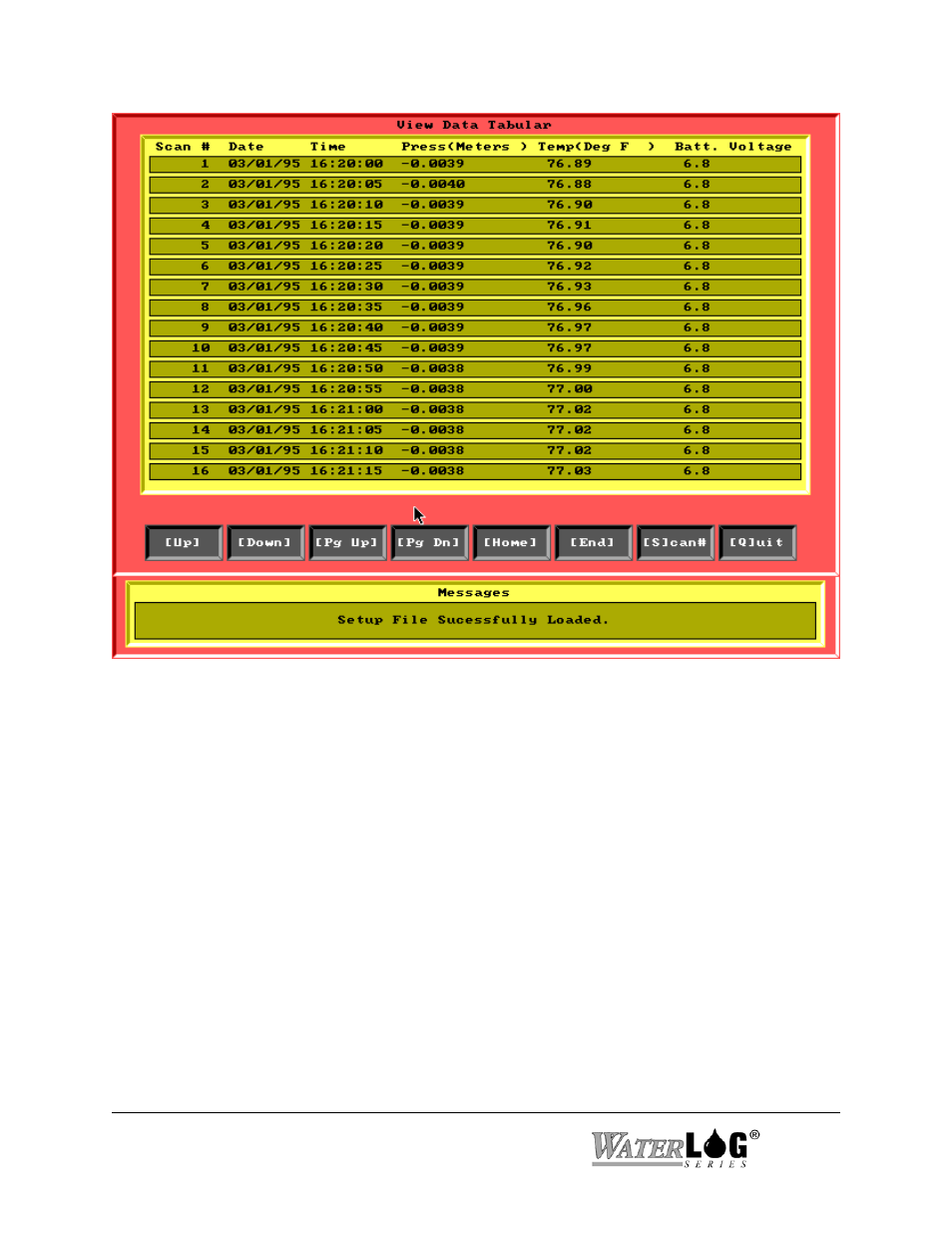

Figure 4-25. View Data Tabular Display

The View Scans Option From “

W

ATER

LOG” shown in Figure 4-26 is used to select what data is

to be viewed. The top box shows the total number of scans in the sensor. This is a status box
only.

Beginning Scan Number to View:

The first option in the bottom box is used to set the beginning point for viewing data. The
default is 1, indicating start at the beginning of the data. This can be any number up to the
maximum number of scans available minus 1, and must be less than the ending scan
number entered in the next option.

Ending Scan Number to View:

The last option in the bottom box is used to set the ending point for viewing data. The
default is the maximum number of scans available. This can be any number greater than
the beginning point up to the number of available scans.
