Xylem DH-21 - Manual (Page 85)

DH-21
Using the Graphical “W ATER LOG” Software 4-39

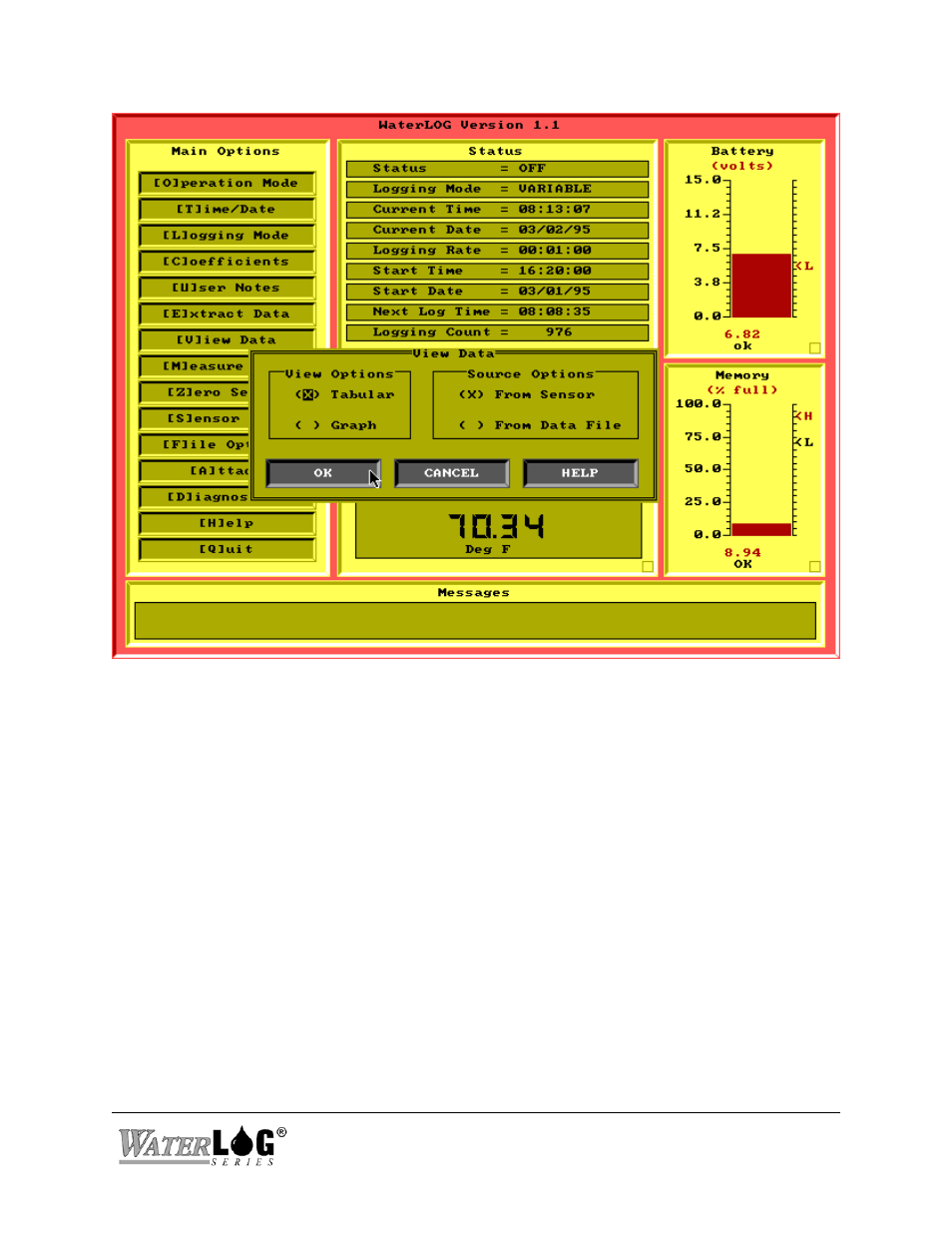

Figure 4-24. View Data Option
You can examine the data stored in the FLASH EEPROM or a data file, by selecting View Data
Tabular. The display will show Scan Number, Date, Time, Pressure, Temperature, and Battery
Voltage as shown in Figure 4-25. Up to 16 samples can be displayed on the screen. If more than
16 samples are stored in memory, the “Home”, “End”, “PgUp”, “PgDn”, “ ”, and “ ” keys can
be used to move through the data. Clicking on the corresponding buttons will also accomplish the
same thing. A Scan Number can also be entered to help you jump to a specific location in the
data.
