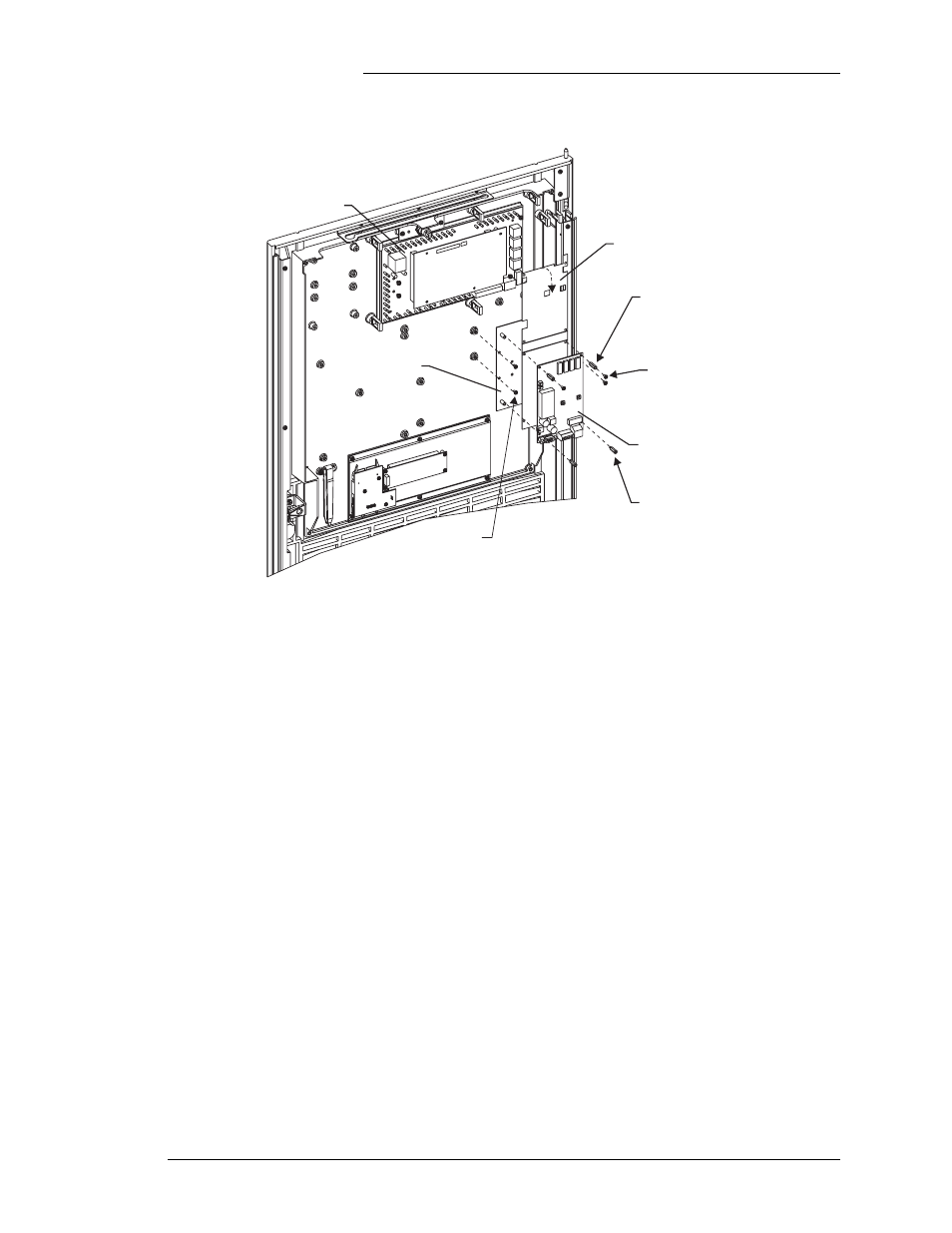

Figure A-2b: GPS with Plastic Door (DA) and Vector Controller
407882141
Standoff
(2 Places)
901377366
Pan Head Screw
(M3 x 6mm)
(3 Places)
848649943
Bracket
BIC or GCM
BLJ3
845143866
Screw e/w Lockwasher
6-32 x 5/16" (2 Places)
Torque 10 in·lbs
408456465 Support Post
(2 Places)
Torque 3 in·lbs
848589859
Lexan Cover
Fold top of lexan cover over board
and secure with pan head screws.
108340100
EBW1
Gateway PWB
Galaxy Vector Controller GCM2, GCM3
Issue 4 January 2008 Communications Appendix A - 5
Preparation The following Network Configuration Parameters must be
obtained from your Network Administrator before starting:
• IP address
• Subnet mask
• Host name
• Gateway IP address
Note: Host and Gateway are optional.
Precautions Note: Before starting, make sure proper ESD precautions are
observed. The ESD grounding termination point is located on
the door latch bracket of the GPS cabinet.
• Wear grounded antistatic wrist straps when handling all
circuit packs. The wrist strap must be in contact with the skin
and is not to be worn over clothing.
