Galaxy Vector Controller GCM2, GCM3
2 - 14 Product Description Issue 4 January 2008
BTJ2/BTJ3
Termination Board Figure 2-7 shows the BTJ2 (+24V) or BTJ3 (-48V) termination
board used as the terminal and controller interface for Vector
outdoor power systems. S1 is the system configuration DIP
switch.

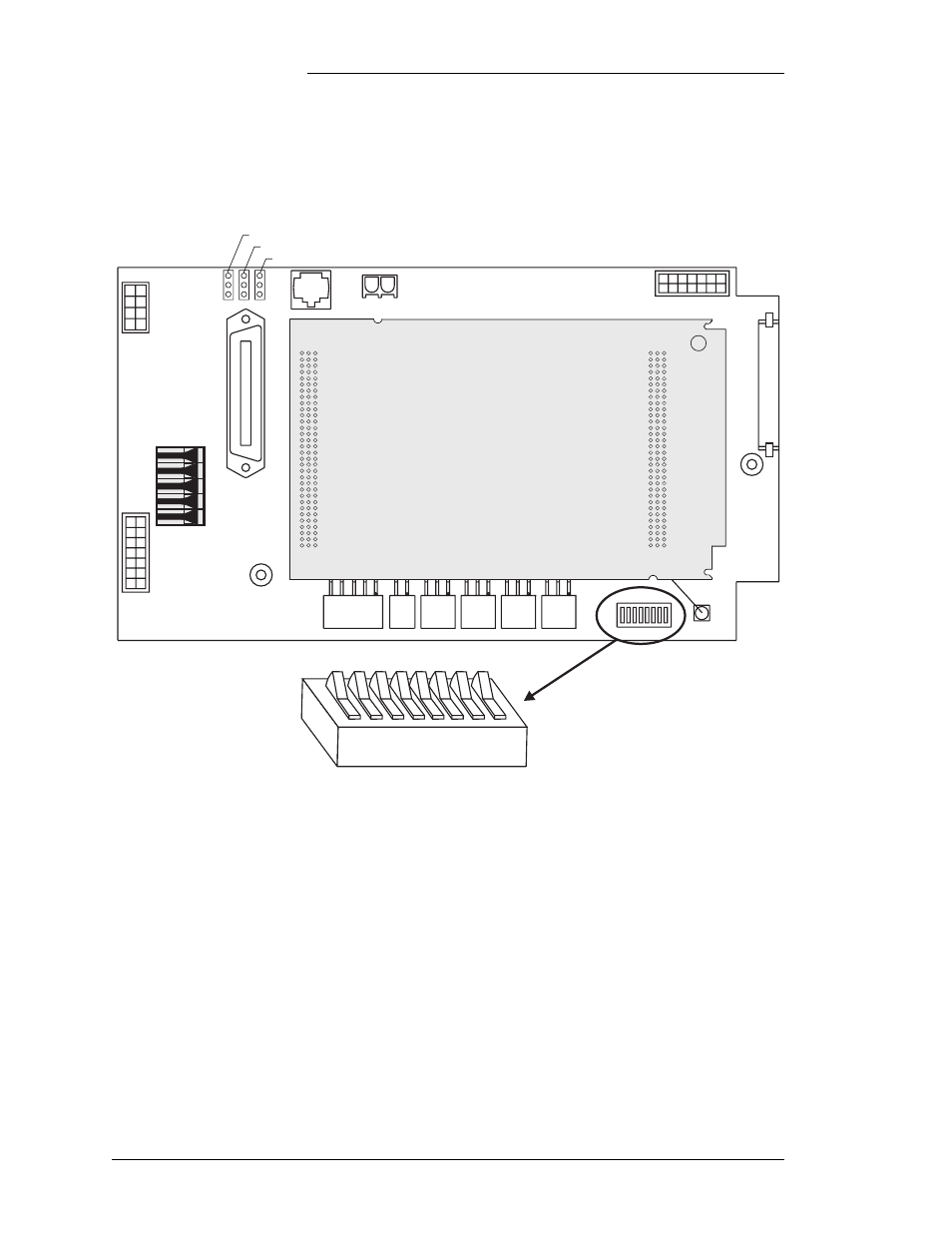

Figure 2-7: Vector Controller BTJ2/BTJ3 Terminal Connection Board
(Used in Outdoor Systems)
LVD2
TEMPERATURE PROBES
#1
F1
F2
F3
F4
F5
#2 #3 #4
FAJ
(DIST)
AMJ (BATT FUSE)
DISPLA
Y
J
14
RS232
CONNECTION
ALARM
OUT
Fuses
LVD1
J23
J21
J6
J2 J27
P1
J4 J28 J9 J10 J11 J12
P3
S1
1
1
0
8
J13
J5
J6
J7
PWR
LVD Forced Closed LED
0
1
Vector Controller Board
(GCM2, GCM3)
1
S1
2 3 4 5 6 7 8
S1.3: Option Card Availability
S1.1: Front Panel Configuration
0
1
0
1
0
1
- Enabled (shown)
- Disabled
- Standard (shown)
- Flexent Default Configuration Parameters
3
- Modem
- Galaxy Gateway Card (Internet)
S1.4: Rectifier Class
0
1 - Standard GPS Rectifiers
- NP Rectifiers
S1.8: Low Voltage Disconnect
0
1
0
1
- Standard HV, High Voltage
- VLV, Very Low Voltage
- Controller Controlled (shown)
- Manual Force Closed
S1.6: - Set to 0
S1.7: - Set to 0
S1.2: Software Mode 1,2
S1.5: Alarm Contact Select
1
1. Setting both SW1.2 and SW1.5 to "1" will result in activating the HV alarm cont act.
2. SW1.2 setting will only be read by the software when the GCM is powered up.
3. HV alarm contacts used for 2ACF alarm instead of HV alarm.
