16. Parts List
92 PNEG-1460 6', 7' and 9' Bulk Feed Tank BFT Series and GHT Series

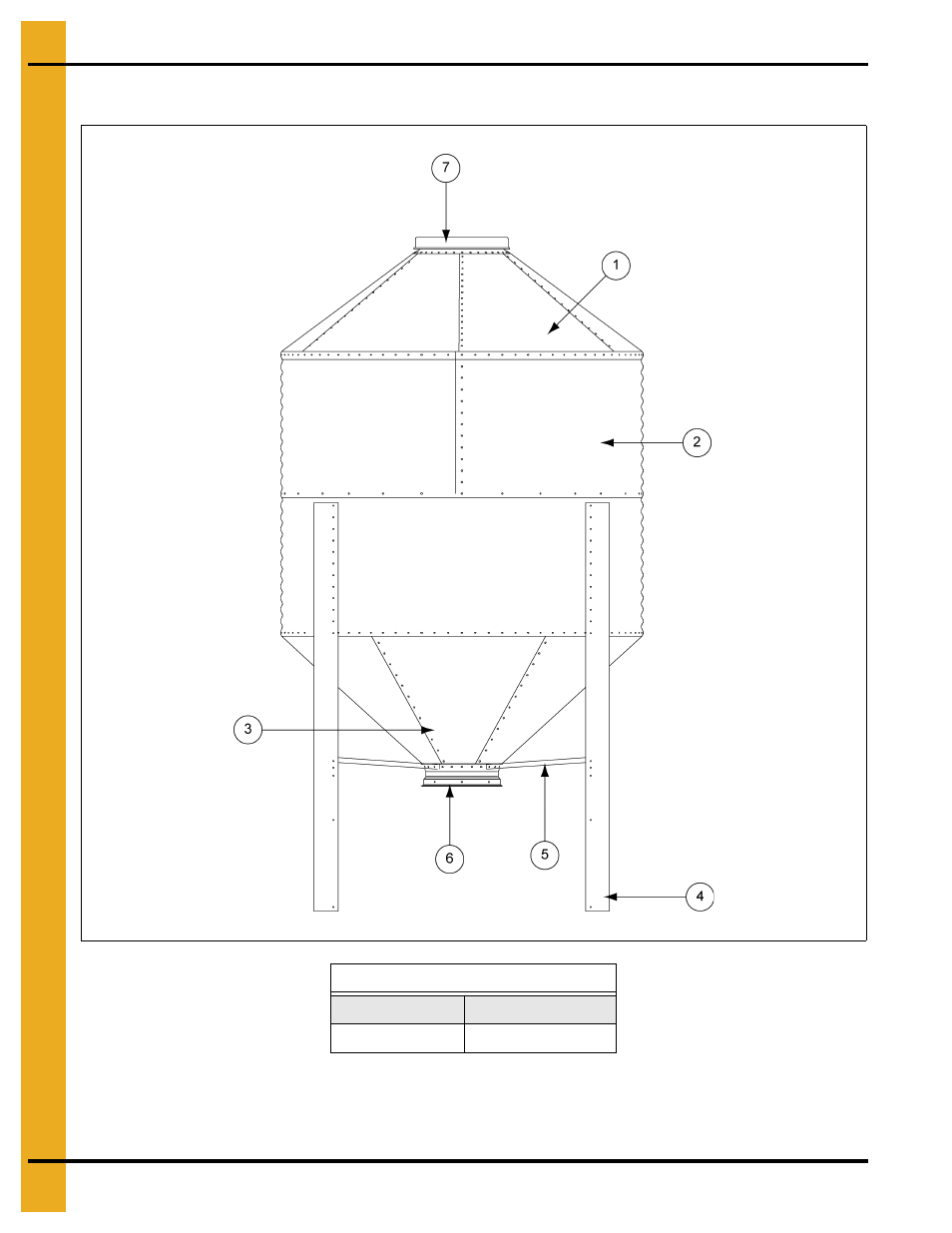

7' Diameter 45° Hopper Bin Specifications
IMPORTANT: Bolt heads are inside of bin at the leg to body attachment and on all vertical seams on
hopper panels. All bolts to be tightened from the nut side only. Refer to detail on Page 22
for location of caulking. No cross tie bracing required.
Under Collar Clearance
16" Collar 29-3/4" (756 mm)
22" Collar 32-5/16" (821 mm)
