8. Optional BFT Ladder Assembly
PNEG-1460 6', 7' and 9' Bulk Feed Tank BFT Series and GHT Series 37
Ladder Standoff Installation
With the sidewall ladder in place, standoff brackets must be installed on the ladder and attached to the
sidewall at each horizontal seam (every 32"). Start by assembling the standoff bracket and wedge to the
ladder rail as shown in
Figure 8K . Then, slide the standoff assembly along the ladder rail until the standoff
is in line with the pre-punched hole in the horizontal seam and attach to the sidewall using 5/16" x 1"
bin bolts.

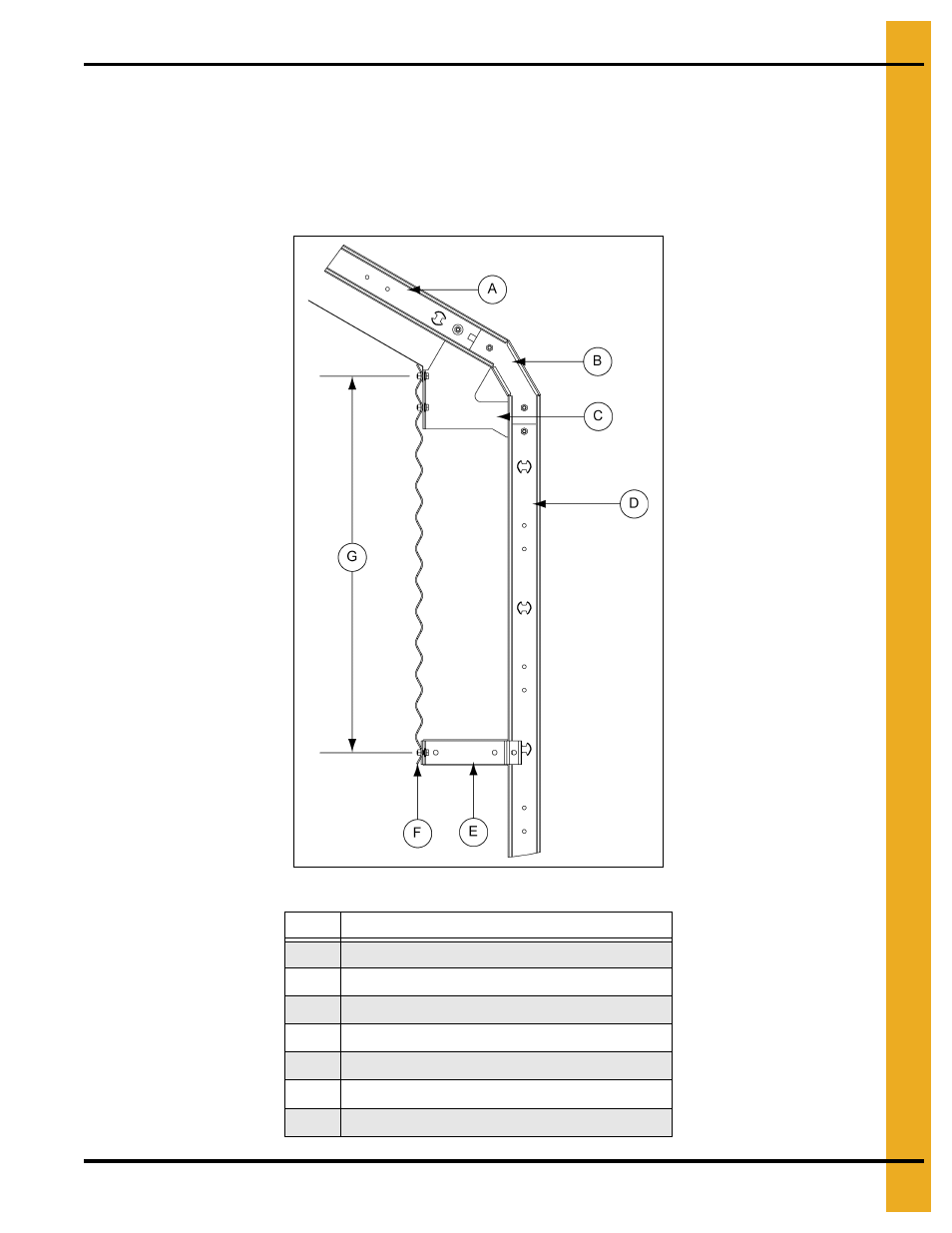

Figure 8K
Ref # Description
A Roof Ladder
B Connector Bracket
C Starter Bracket
D Sidewall Ladder
E Standoff Bracket (Two(2) per Seam) (LDR-4314)
F Horizontal Seam
G 32" Typical
