8. Optional BFT Ladder Assembly
38 PNEG-1460 6', 7' and 9' Bulk Feed Tank BFT Series and GHT Series
Ladder Section Assembly
Two (2) splice plates are required to attach each additional ladder section. The head of the bolt should be
to the inside of the ladder with the splice plate on the outside as shown in
Figure 8L . Use 5/16" x 1" bolts
for all connections.
NOTE: With most installations, the last ladder section to reach the concrete will need to be cut to fit.

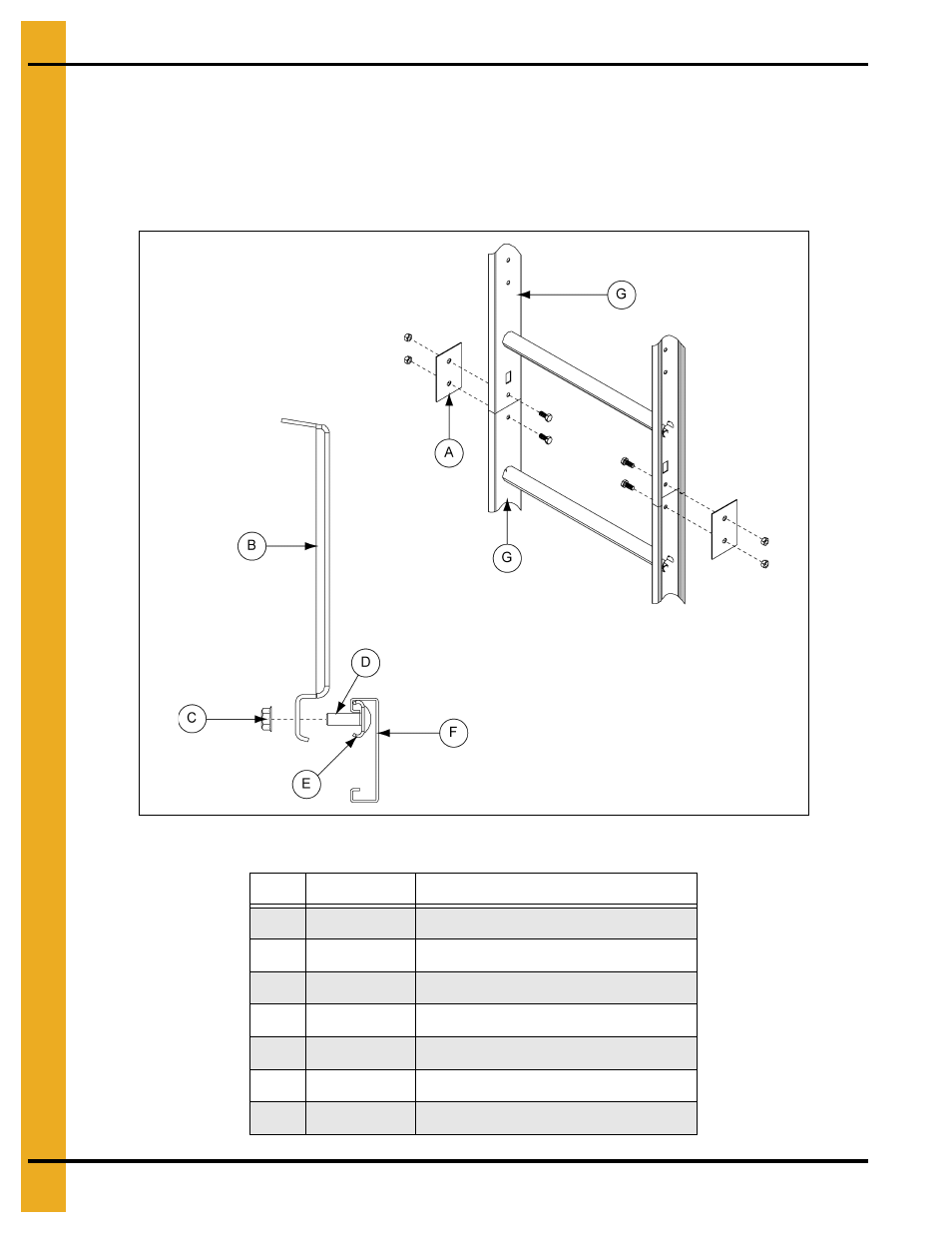

Figure 8L
Ref # Part # Description
A LDR-4317 Splice Plate (Two (2) Per Connection)
B LDR-4314 Standoff Bracket
C S-10268 Flange Nut 5/16"-18 JS Grade 5
D S-3550 5/16" x 1" Carriage Bolt
E LDR-4198 Wedge
F Ladder
G Ladder Sections
NOTE: Leave bolt loose until cage
hoop half has been attached.
Top view
