9. Ladder Handrails

PNEG-1460 6', 7' and 9' Bulk Feed Tank BFT Series and GHT Series

43

Handrail Installation for Ladder System Without Safety
Cage (Continued)

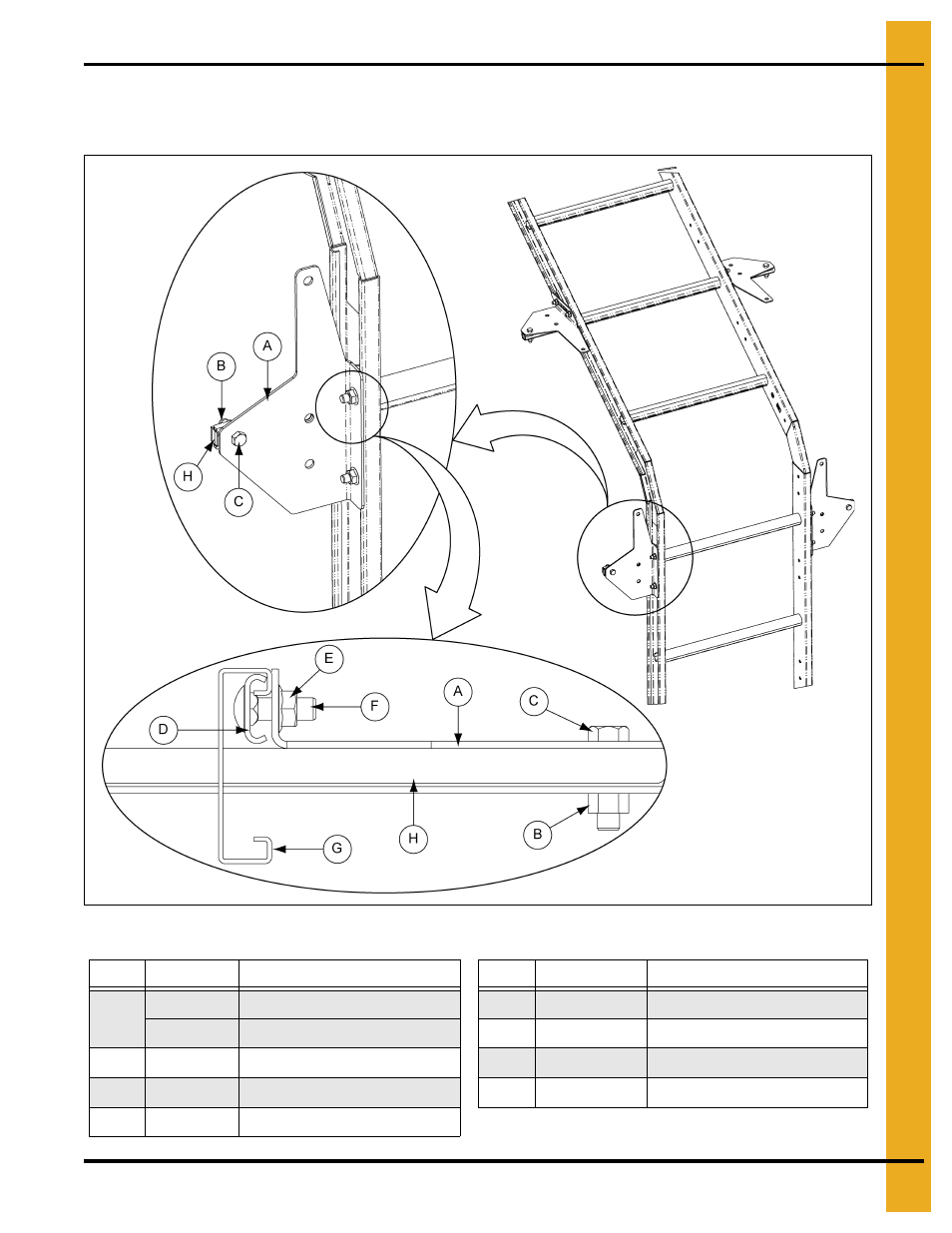

Figure 9D

Ref #

Part #

Description

Ref #

Part #

Description

A

LDR-5417

Bottom Handrail Gusset L.H.

E

S-10268

Flange Nut 5/16"-18 JS Grade 5

LDR-5418

Bottom Handrail Gusset R.H.

F

S-3550

5/16" x 1" Carriage Bolt

B

S-7484

5/16" Nut

G

Ladder

C

S-4276

5/16" x 1-1/4" Hex Head Bolt

H

Handrail Bar Assembly

D

LDR-4198

Ladder Standoff Wedge
