13. Legs and Leg Bracing
74 PNEG-1460 6', 7' and 9' Bulk Feed Tank BFT Series and GHT Series
9' 60° 2 Through 6 Ring Tank

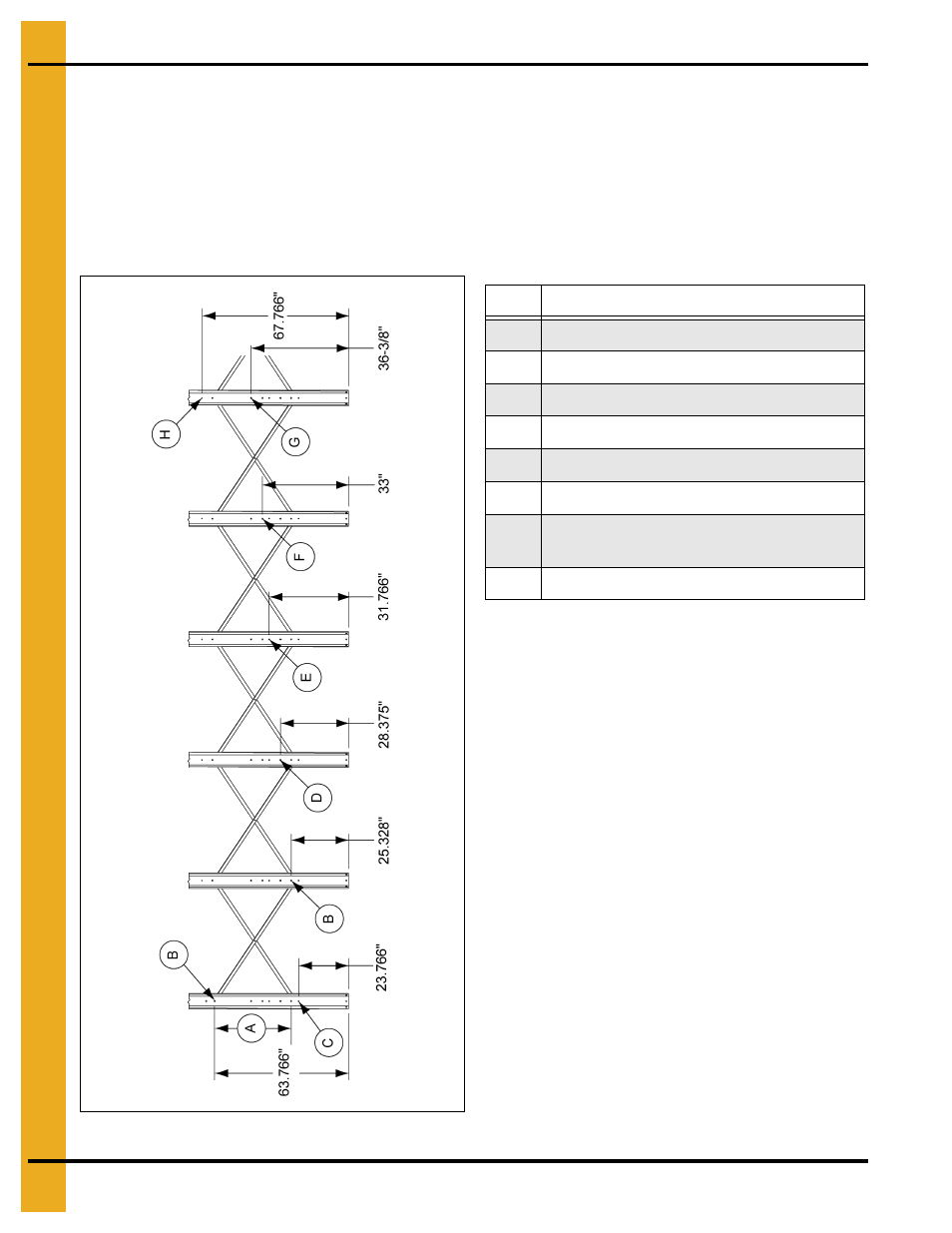

Figure 13K has been modified for clarity (not to scale). For 7' and 9' bracing notes, See Page 72 .
NOTE: 9' 5 Ring tanks must use 6 ring legs when raising 8" (203.2 mm).
Dimensions shown are measured from center of attachment holes in legs to bottom of leg. Use 3/8" nuts
and bolts to attach cross ties to each other and to leg. Hopper braces are attached to legs with 3/8" nuts
and bolts and to hopper collar with 5/16" hardware. Ladder standoffs are attached to legs with 5/16" nuts
and bolts. Do not tighten hardware until all bracing is in place.
Figure 13K
Ref # Description
A 38-7/16" Between Hopper Braces
B Cross Tie Brace 7/16" Diameter Hole
C Ladder Standoff 1-3-5 Rings 3/8" Diameter Hole
D 16" Hopper Brace 3/8" Diameter Hole
E Ladder Standoff 2-4-6 Rings 3/8" Diameter Hole
F 22" Hopper Brace 7/16" Diameter Hole
G
16" Hopper Brace (Raising Tank 8")
7/16" Diameter Hole
H Ladder Standoff (All) 3/8" Diameter Hole
