9. Ladder Handrails
46 PNEG-1460 6', 7' and 9' Bulk Feed Tank BFT Series and GHT Series
Handrail Installation for Ladder System Without Safety
Cage (Continued)

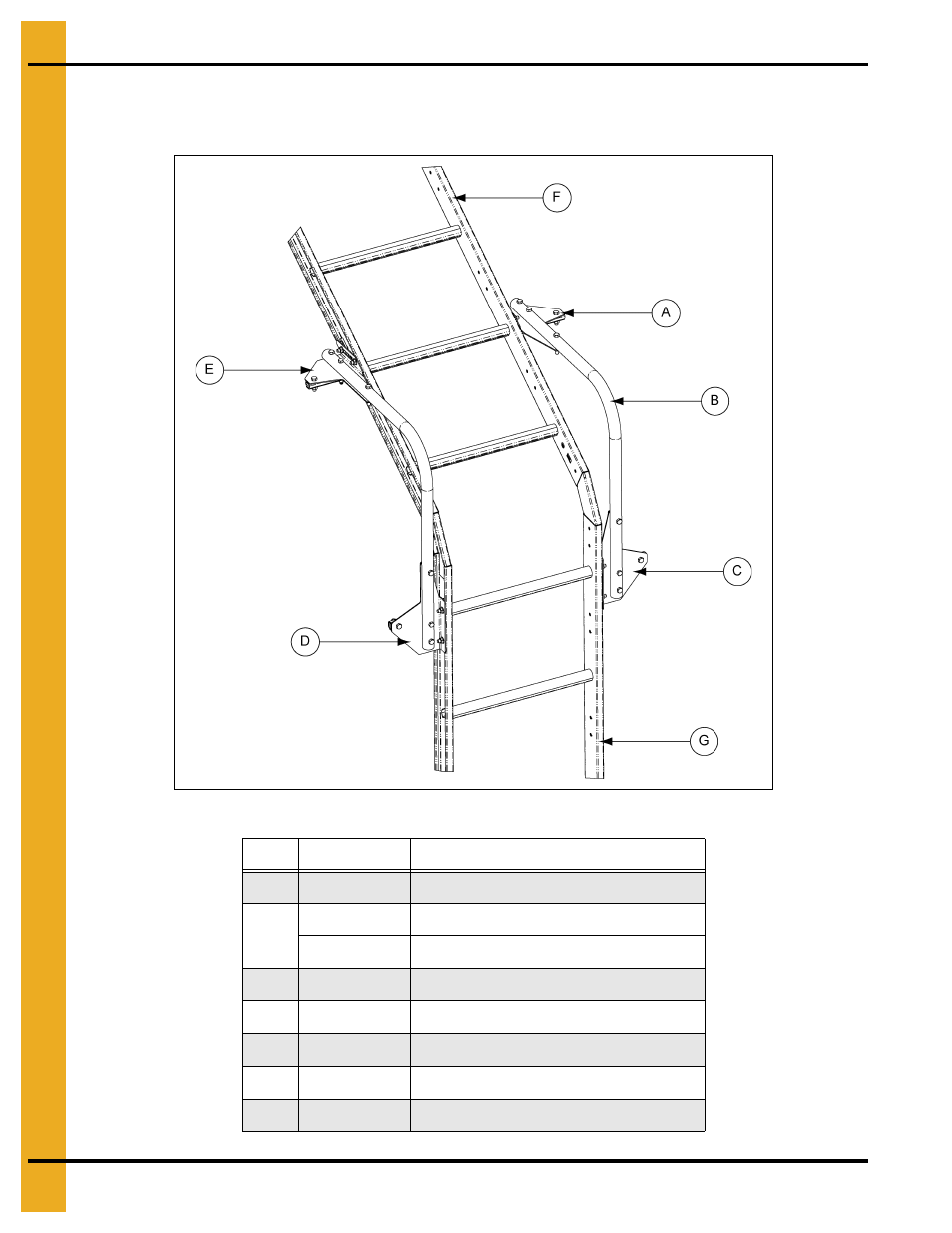

Figure 9G Handrails Fully Assembled
Ref # Part # Description
A LDR-5416 Top Handrail Gusset R.H.
B
LDR-5423 30° Handrail
LDR-5424 40° Handrail
C LDR-5418 Bottom Handrail Gusset R.H.
D LDR-5417 Bottom Handrail Gusset L.H.
E LDR-5415 Top Handrail Gusset L.H.
F Roof Ladder
G Sidewall Ladder
