13. Legs and Leg Bracing
76 PNEG-1460 6', 7' and 9' Bulk Feed Tank BFT Series and GHT Series
Tank Legs and Leg Braces (Continued)

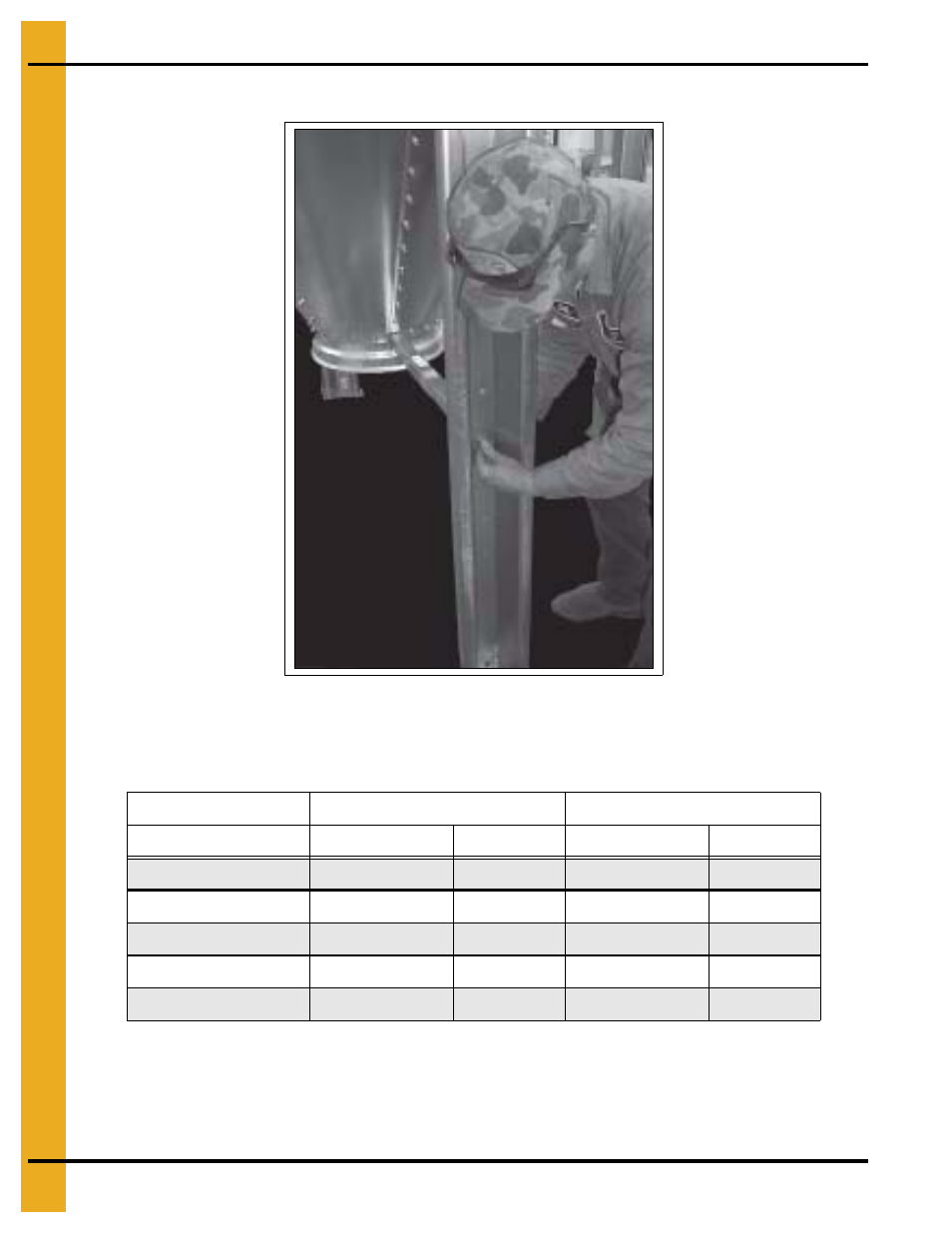

Figure 13N
Hopper braces are required on all hopper tanks and should be spaced equally around the tank. Refer to
chart
below for the quantities required the tank.
NOTE: Hopper braces attach between the legs and the collar/hopper horizontal seam. Never bolt the
braces directly to the hopper seam above the collar. Use 16" braces with 16" collar and 22" braces
with 22" collars.
Tank 16" Hopper 22" Hopper
Description Brace Part # Qty Brace Part # Qty
6' Diameter 60° Hopper BLK-12146 4 BLK-12147 4
7' Diameter 67° Hopper BLK-12107 4 BLK-12108 4
7' Diameter 45° Hopper BLK-12105 4 BLK-12106 4
9' Diameter 60° Hopper BLK-12109 6 BLK-12110 6
9' Diameter 45° Hopper BLK-12111 6 BLK-12112 6
