14. Raising Bin
80 PNEG-1460 6', 7' and 9' Bulk Feed Tank BFT Series and GHT Series
Bin Grounding Instructions
NOTE: Parts are not supplied by manufacturer. They should be purchased locally.
All bins shall have two (2) ground connections. Ground clamps must be placed at equal distances around
the bin.
Alternate Installation: Cables may be placed in the foundation or through PVC sleeve inserted in the slab
during construction.

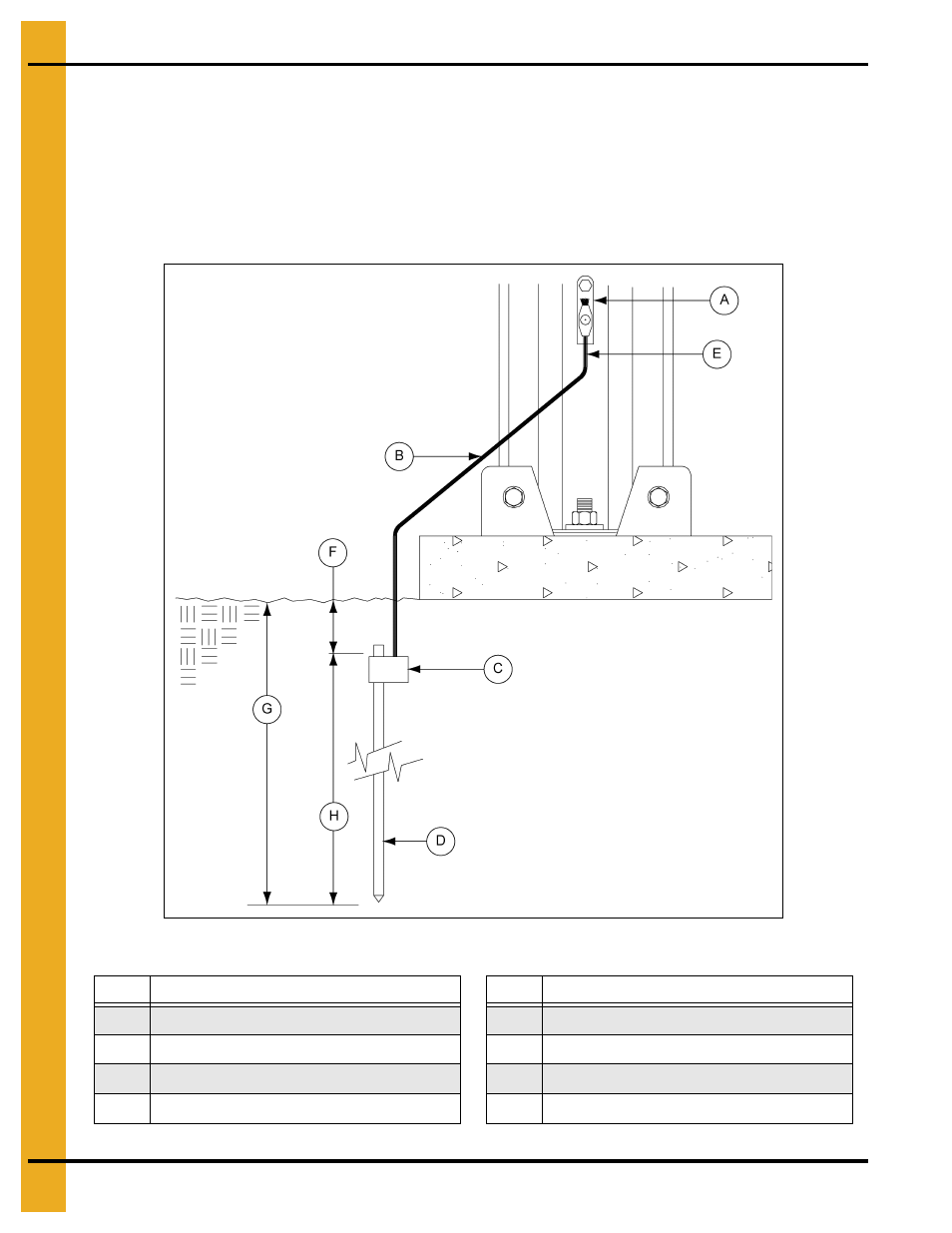

Figure 14D
Ref # Description Ref # Description
A Cable Clamp E Number 2 Minimum (Typical)
B 5' (1524 mm) Copper Cable (Plain or Jacketed) F 12" (305 mm)
C Ground Rod Clamp G 10'-0" Minimum (3048 mm)
D Ground Rod 1/2" x 10' (3048 mm) H 9'-0" Minimum (2743 mm)
NOTE: Grounding rod must be placed
a minimum of 24" from concrete.
