8. Optional BFT Ladder Assembly
PNEG-1460 6', 7' and 9' Bulk Feed Tank BFT Series and GHT Series 35
Roof Ladder Support Bracket Installation (Continued)

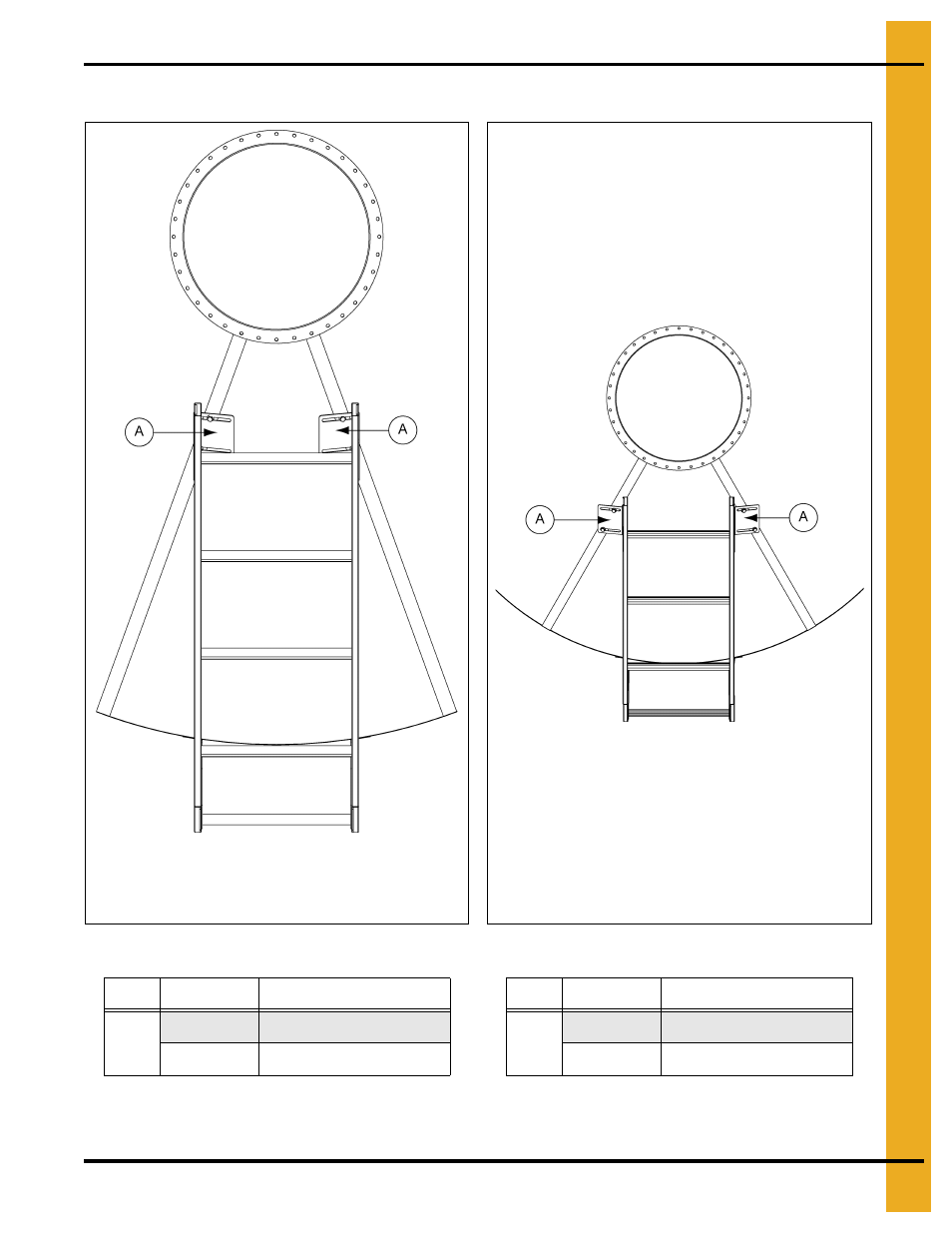

Figure 8H Figure 8I
Ref # Part # Description
A
LDR-5403 30° Support Bracket
LDR-5404 40° Support Bracket
Top view for these tanks: All 6' diameter 30° sealed roofs.
All 9' diameter 30° sealed roofs.
(Not in scale.)
All 9' diameter 40° sealed roofs.
Ref # Part # Description
A
LDR-4386 30° Support Bracket
LDR-4387 40° Support Bracket
Top view for these tanks: All 6' diameter 40° sealed roofs.
All 7' diameter 30° sealed roofs.
All 7' diameter 40° sealed roofs.
(Not in scale.)
