13. Legs and Leg Bracing
PNEG-1460 6', 7' and 9' Bulk Feed Tank BFT Series and GHT Series 73
7' 67° 1-6 Ring

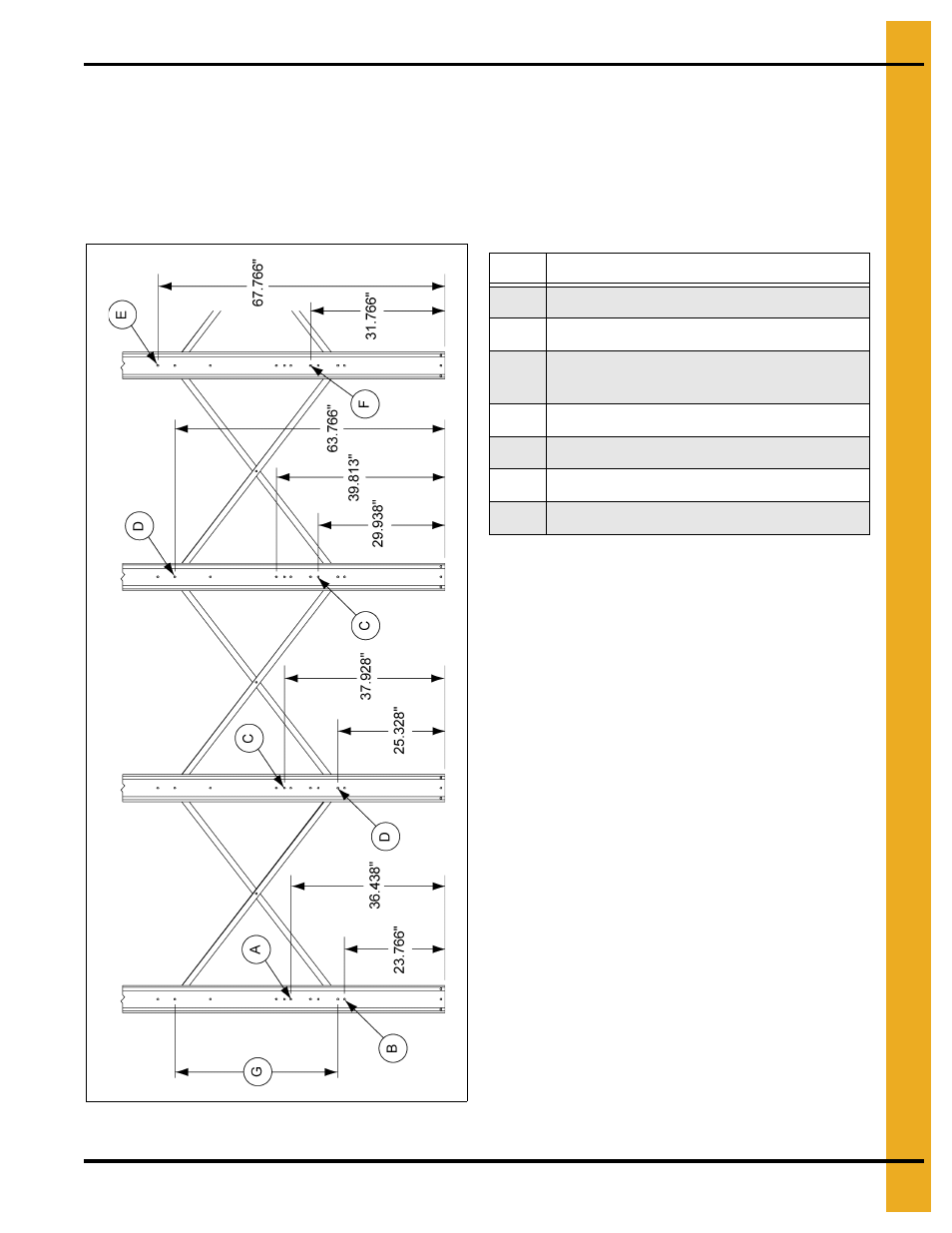

Figure 13J has been modified for clarity (not to scale). For 7' and 9' bracing notes, See Page 72 .
Dimensions shown are measured from center of attachment holes in legs to bottom of leg. Use 3/8" nuts
and bolts to attach cross ties to each other and to leg. Hopper braces are attached to legs with 3/8" nuts
and bolts and to hopper collar with 5/16" hardware. Ladder standoffs are attached to legs with 5/16" nuts
and bolts. Do not tighten hardware until all bracing is in place.
Figure 13J
Ref # Description
A 22" Hopper Brace 7/16" Diameter Hole
B Ladder Standoff 1-3-5 Rings 3/8" Diameter Hole
C
16" Hopper Brace (Raising Tank 8")
7/16" Diameter Hole
D Cross Tie Brace 7/16" Diameter Hole
E Ladder Standoff (All) 3/8" Diameter Hole
F Ladder Standoff 2-4-6 Rings 3/8" Diameter Hole
