12. Hopper Assembly
66 PNEG-1460 6', 7' and 9' Bulk Feed Tank BFT Series and GHT Series
22" Hopper Collar
45° 22" Hopper Collar (BLK-10854)
60° 22" Hopper Collar (BLK-10342)
67° 22" Hopper Collar (BLK-10341)
Install hopper collar before all hopper panels are assembled. Use 5/16" truss head bolts on all hopper
seams as shown in
Figure 12I . Be sure to caulk between the hopper collar and hopper panels.
(See Figure 12I.)

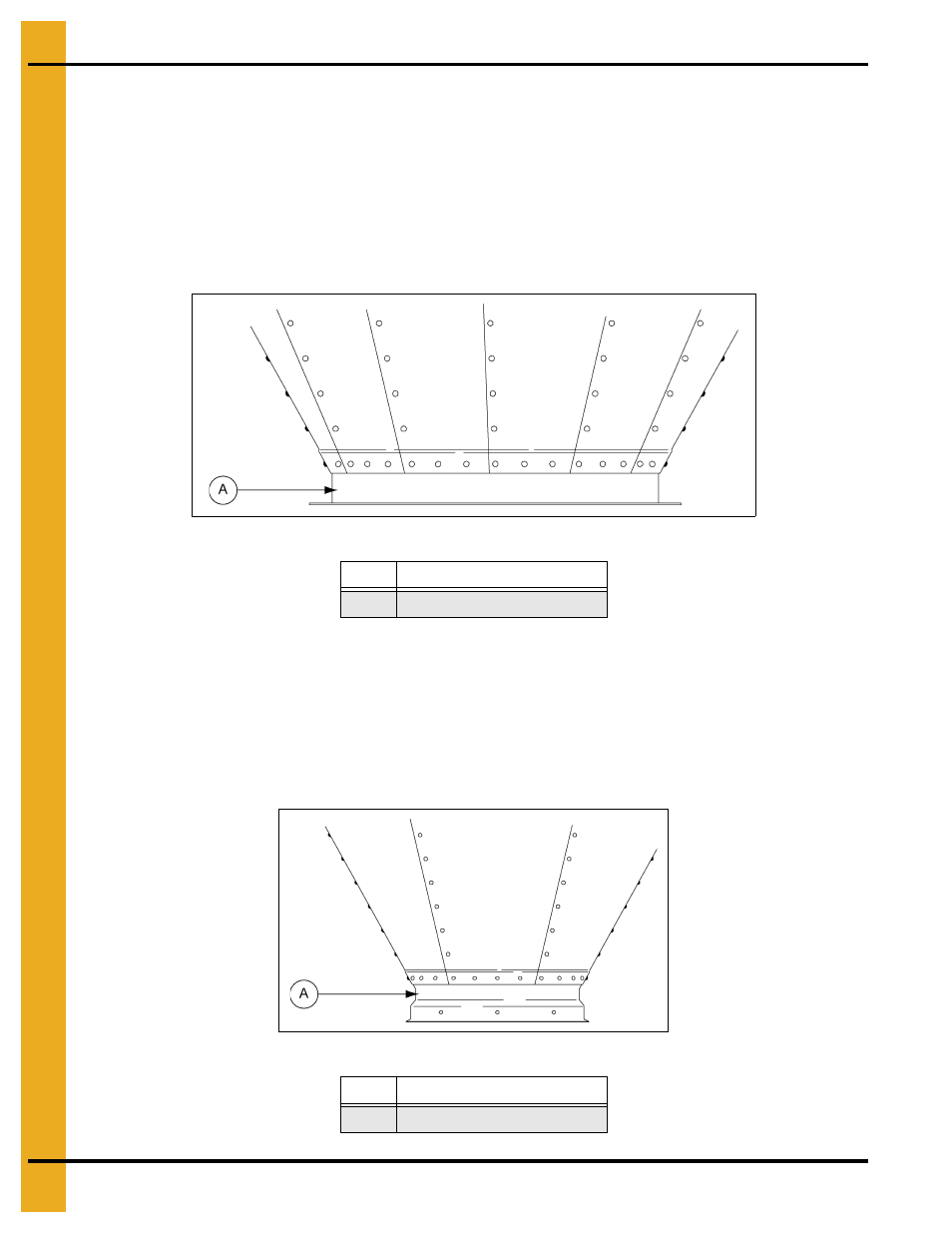

Figure 12I
16" Hopper Collar
6'-16" Hopper Collar 60° (BLK-10489) (24 Holes)
7'-16" Hopper Collar 67°(BLK-10488) (24 Holes)
* 9'-16" Hopper Collar 60° (BLK-11463) (27 Holes)
* NOTE: 9'-16" 60° Hopper collar (BLK-11463) is used with a 9'-16" 60° tank only. (27 Holes.)
Figure 12J
Ref # Description
A 22" Hopper Collar
Ref # Description
A 16" Hopper Collar
