8. Optional BFT Ladder Assembly
32 PNEG-1460 6', 7' and 9' Bulk Feed Tank BFT Series and GHT Series
Roof Ladder Support Bracket Installation
The roof ladder requires support brackets at the top of the ladder. These upper ladder support brackets
either bend in towards the center of the ladder or bend out away from the ladder depending on the diameter
and roof angle of the tank being assembled.
See Figure 8D below and Figure 8H on Page 35 that show
brackets for the 6' 30°, 9' 30° and 9'-40° roofs. See Figure 8E on Page 33 and Figure 8I on Page 35
that show brackets for 6' 40°, 7' 30° and 7' 40° roofs. Assemble the wedge and support brackets to the
ladder rail as shown in
Figure 8F and Figure 8G on Page 34 . Then, slide the support bracket assemblies
along the ladder rails as shown in Figure 8D below and Figure 8E on Page 33 until the slots match up with
the pre-punched holes in the roof panel and attach using the existing bolts.
NOTE: The roof ladder supports must be assembled so that the maximum distances are not exceeded.
See Figure 8J on Page 36 and the “maximum distances chart” to determine maximum allowable
spacing of support brackets.

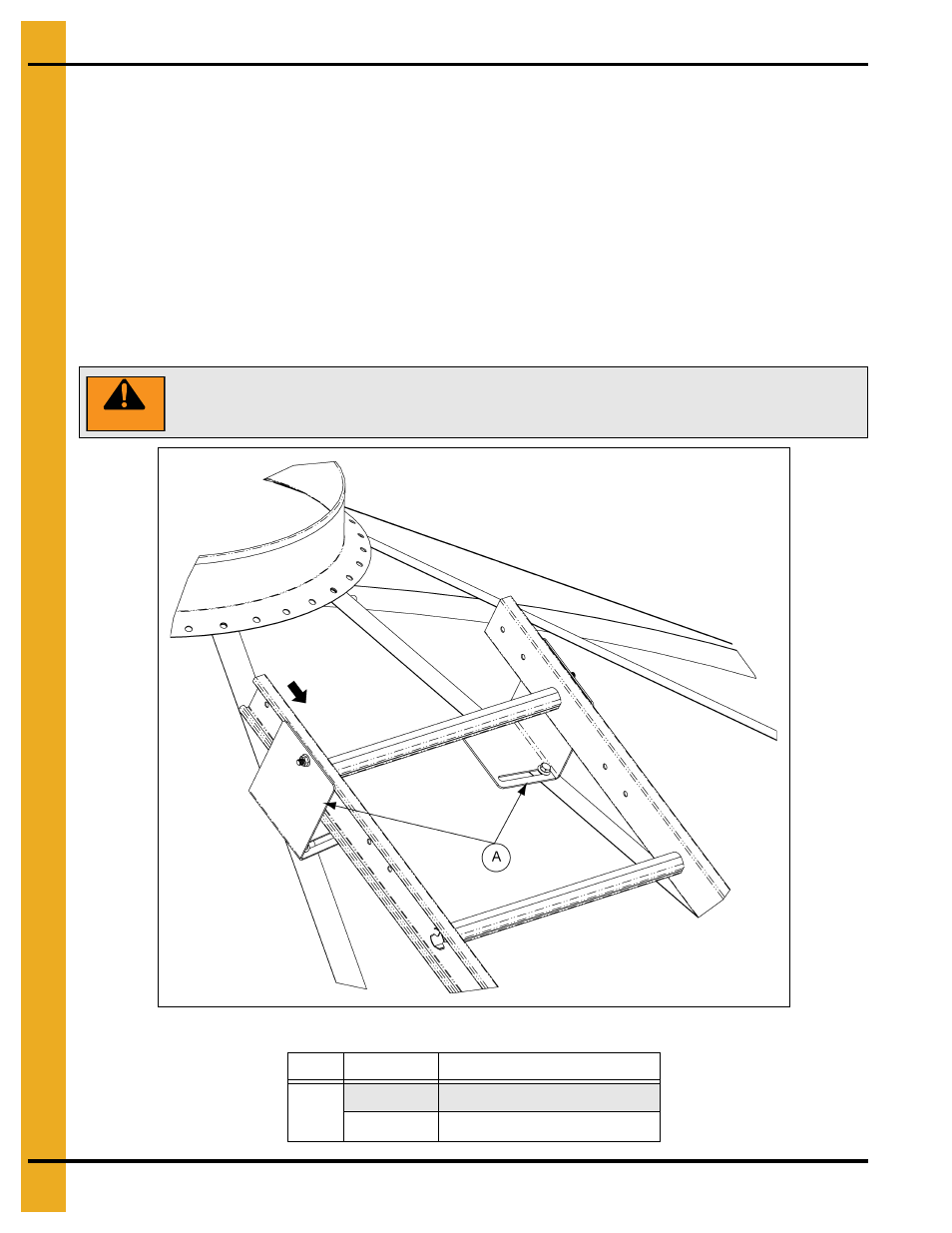

Figure 8D
Ref # Part # Description
A
LDR-5403 30° Support Bracket
LDR-5404 40° Support Bracket
Failure to follow instructions may cause damage or failure of the equipment.
WARNING
Slide
