9. Ladder Handrails
42
PNEG-1460 6', 7' and 9' Bulk Feed Tank BFT Series and GHT Series
Handrail Installation for Ladder System Without Safety
Cage (Continued)
Figure 9C
Ref #
Part #
Description
A
LDR-5422
BFT Handrail Support Channel Reinforcement 12 Gauge
B
LDR-5414
BFT Handrail Support Channel Reinforcement
C
LDR-5421
BFT Handrail Support Channel

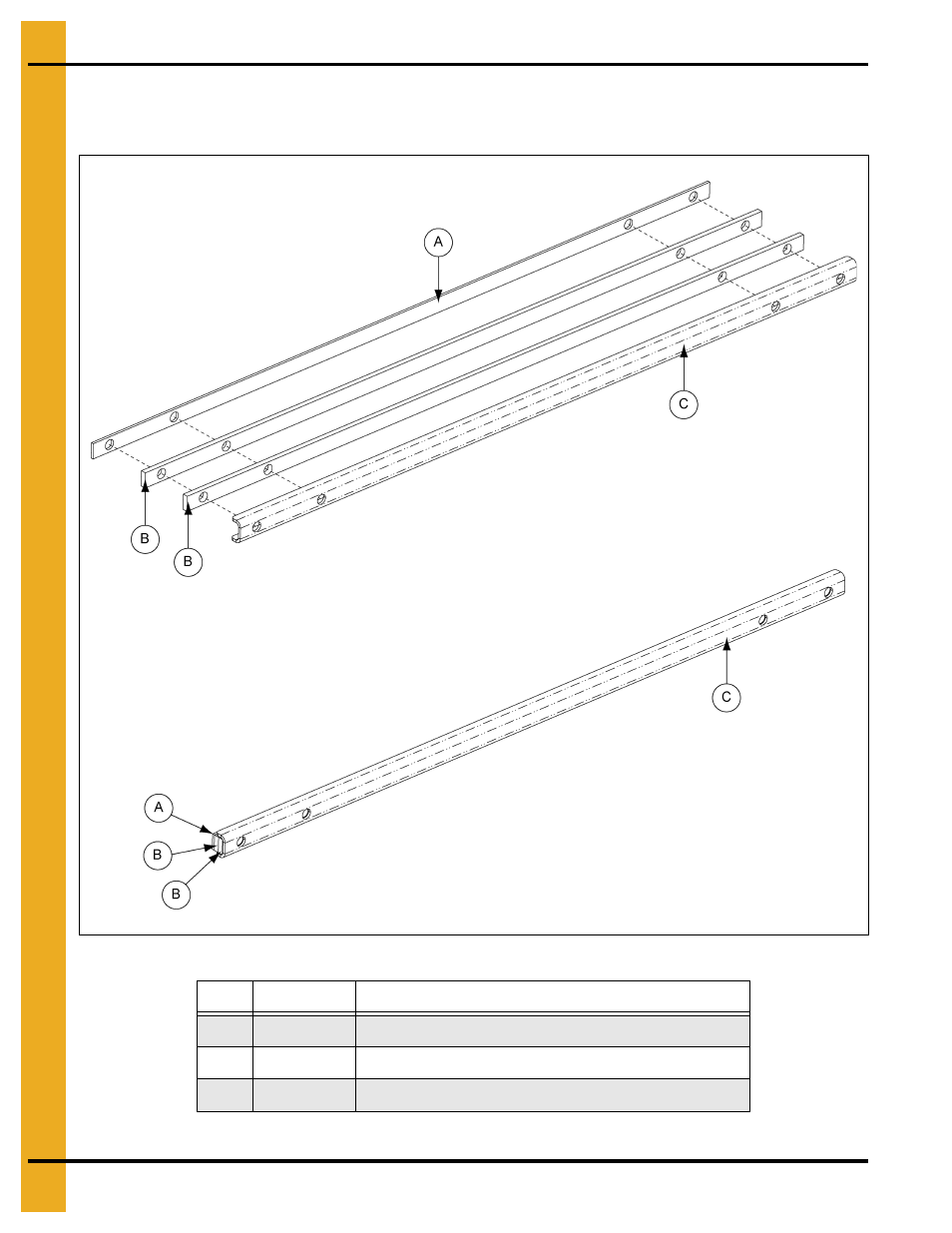

Exploded view
Assembled view
