8. Optional BFT Ladder Assembly
36 PNEG-1460 6', 7' and 9' Bulk Feed Tank BFT Series and GHT Series
Roof Ladder Support Bracket Installation (Continued)

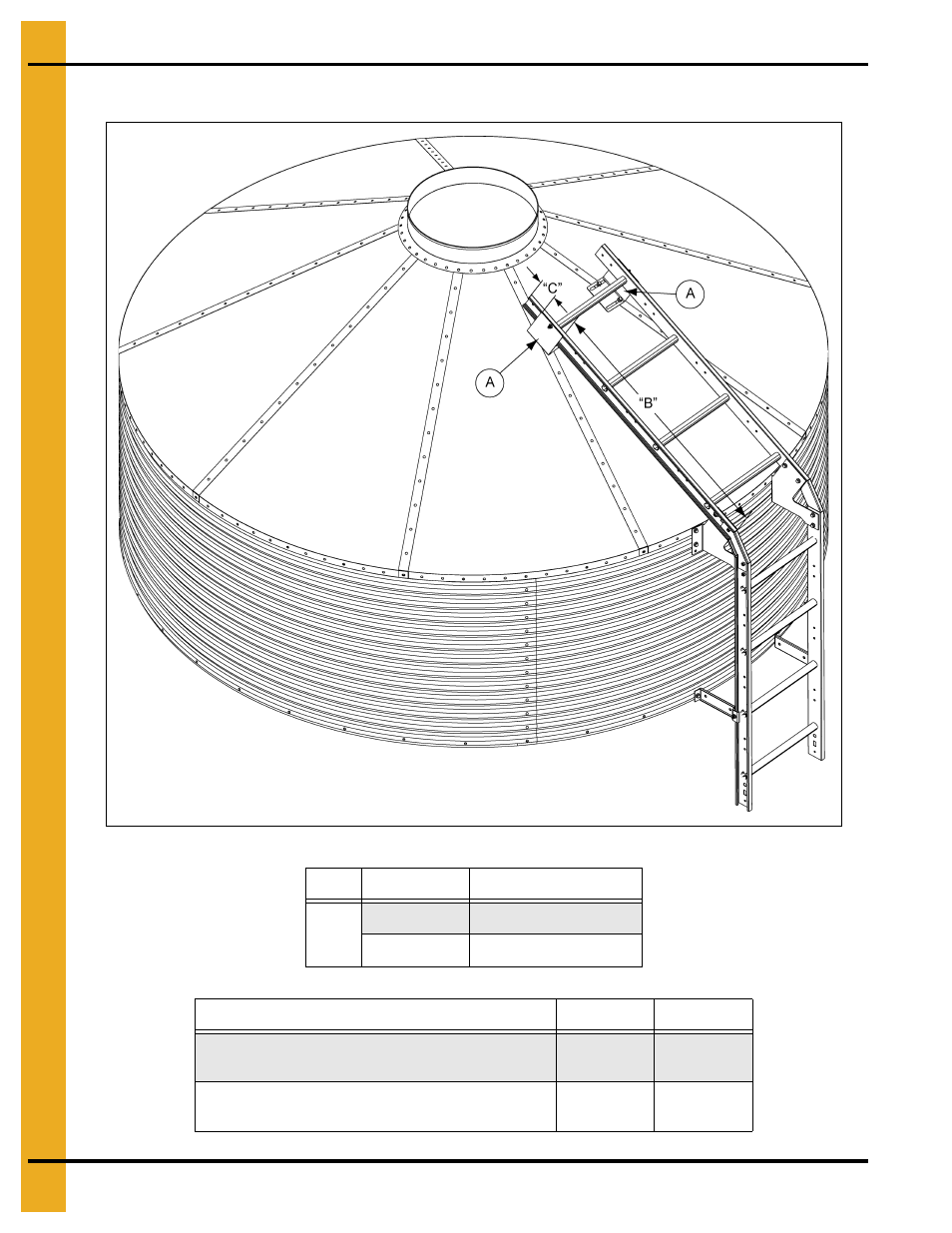

Figure 8J Maximum Allowable Distance
Ref # Part # Description
A
LDR-5403 30° Support Bracket
LDR-5404 40° Support Bracket
Maximum Distances Chart “B” “C”
Maximum allowable distance between ladder support
bracket and the edge of the ladder at the eave.
50 Inches
Maximum allowable distance between ladder
support bracket and edge of ladder at peak.
10 Inches
