8. Optional BFT Ladder Assembly
PNEG-1460 6', 7' and 9' Bulk Feed Tank BFT Series and GHT Series 39

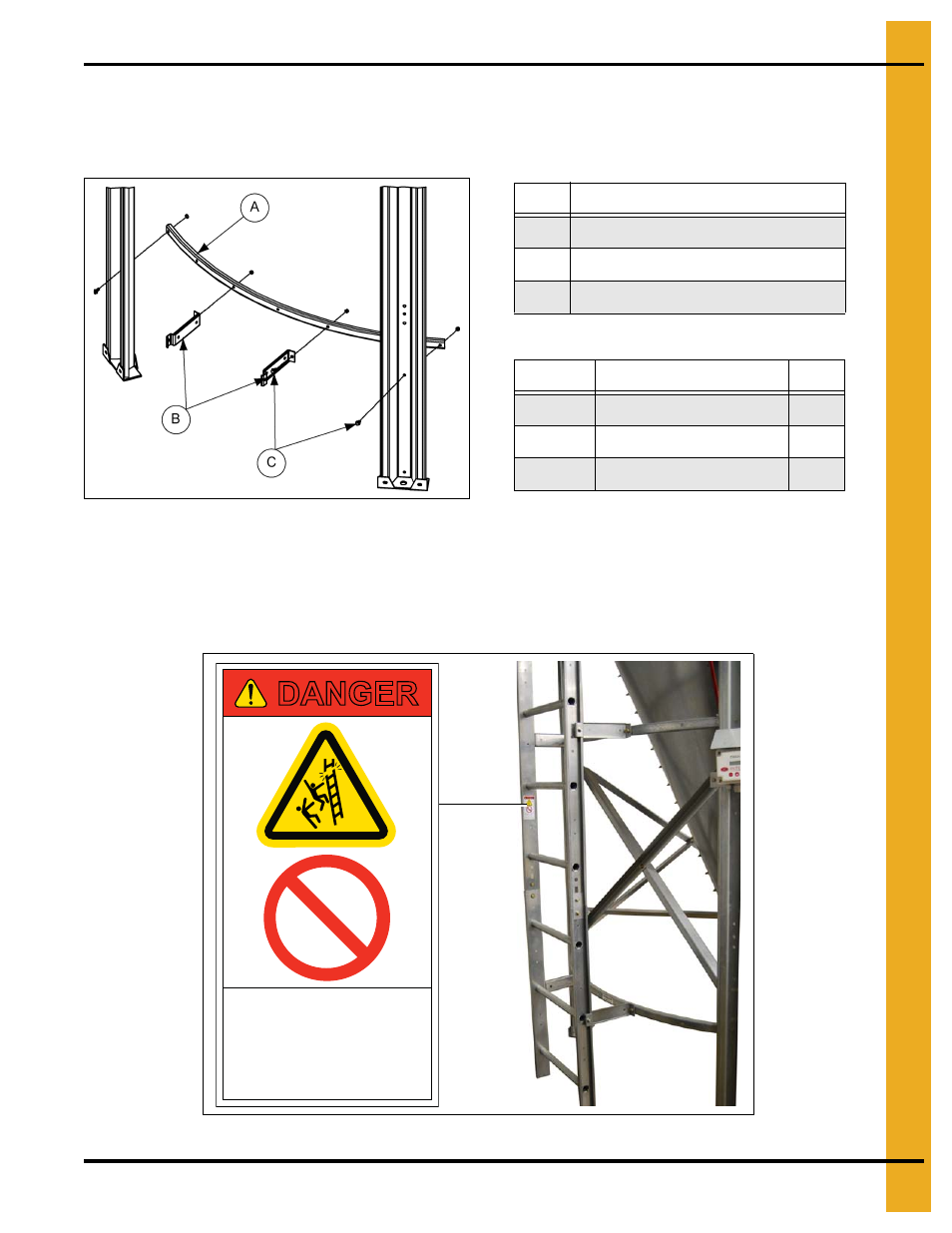

Ladder Support Detail
The ladder must be secured to the leg assembly with standoff brackets using support channels as shown
in
Figure 8M .
Figure 8M
Ladder Decal Application
Apply the ladder load limit decal (DC-2307) at eye level on the inside of the ladder rail. Make sure the
ladder surface is clean and dry before application.
(See Figure 8N.)
Figure 8N
Ref # Description
A Support Channel
B Ladder Standoff Bracket (LDR-4314)
C 5/16" x 1" Hardware
Diameter Support Channel Qty
6' BLK-10147 1
7' BLK-10148 2
9' BLK-10149 2
DC-2307 GSI Group, 217-226-4421
DANGER
DO NOT EXCEED LADDER
LOAD LIMIT
Load limit = 300 LBS (136 kg)
Excessive load will damage
ladder resulting in injury or death.
> 300 lbs
(136 kg)
