13. Legs and Leg Bracing
72 PNEG-1460 6', 7' and 9' Bulk Feed Tank BFT Series and GHT Series
Bracing Hole Layout
For 7' 67° and 9' 60° feed tank bracing layout, See Pages 73-74 .

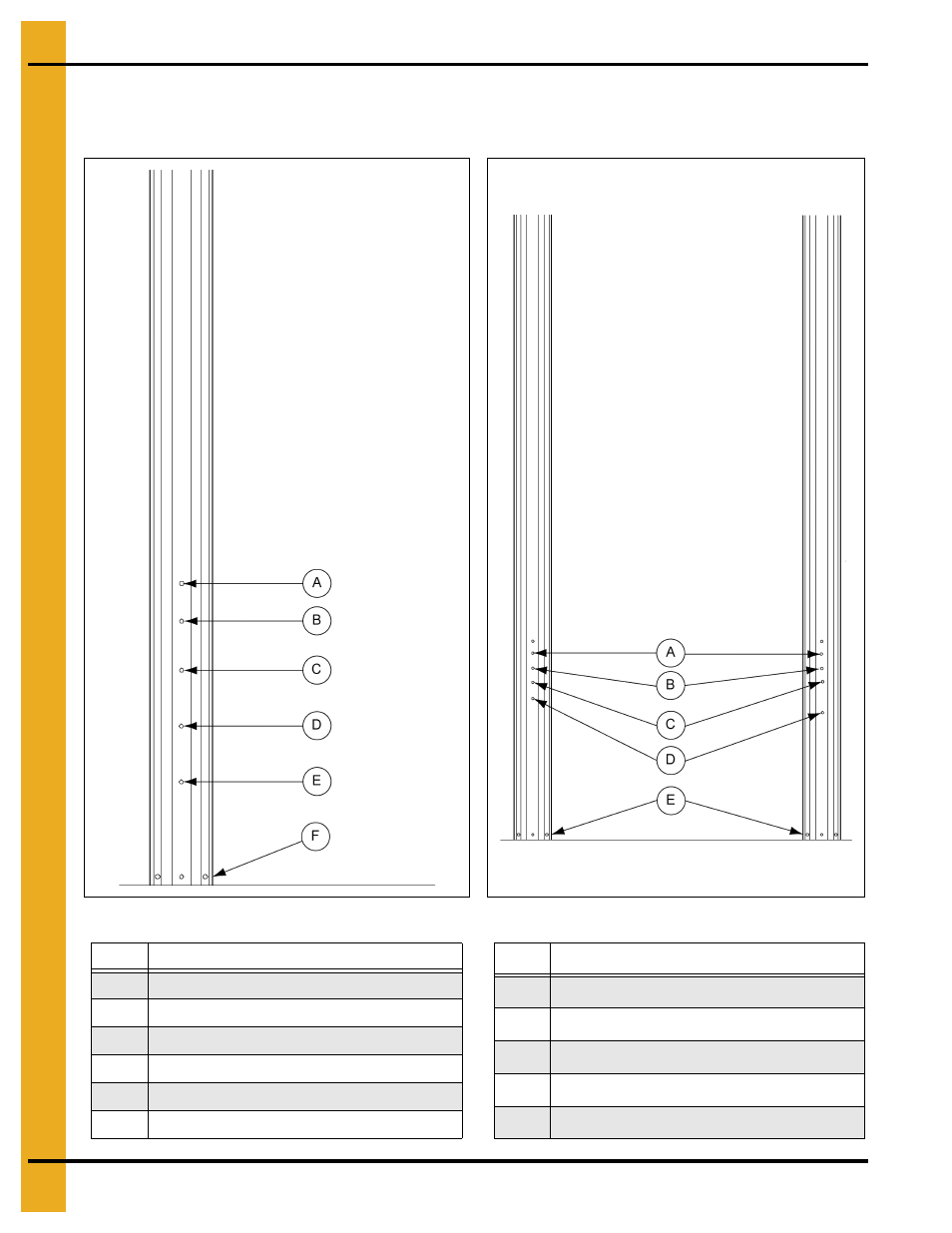

Figure 13H 6' Leg 60° Figure 13I 7' and 9' 45° Legs
Ref # Description
A Ladder Standoff 3 Ring Tank
B 22" Hopper Brace
C 16" Hopper Brace
D Ladder Standoff 4 Ring Tank
E Ladder Standoff 1-2 Ring Tank
F Anchor
NOTE: 6' 60° Tanks require,
hopper braces only, no cross
ties are necessary.
Ref # Description
A Ladder Standoff
B 22" Hopper Brace
C 16" Hopper Brace
D Ladder Standoff
E Anchor
NOTE: 7' 45° and 9' 45°
Tanks require, hopper braces only,
no cross ties are necessary.
7' Leg 45° 9' Leg 45°
