PNEG-1460 6', 7' and 9' Bulk Feed Tank BFT Series and GHT Series

13. Legs and Leg Bracing

Tank Legs and Leg Braces

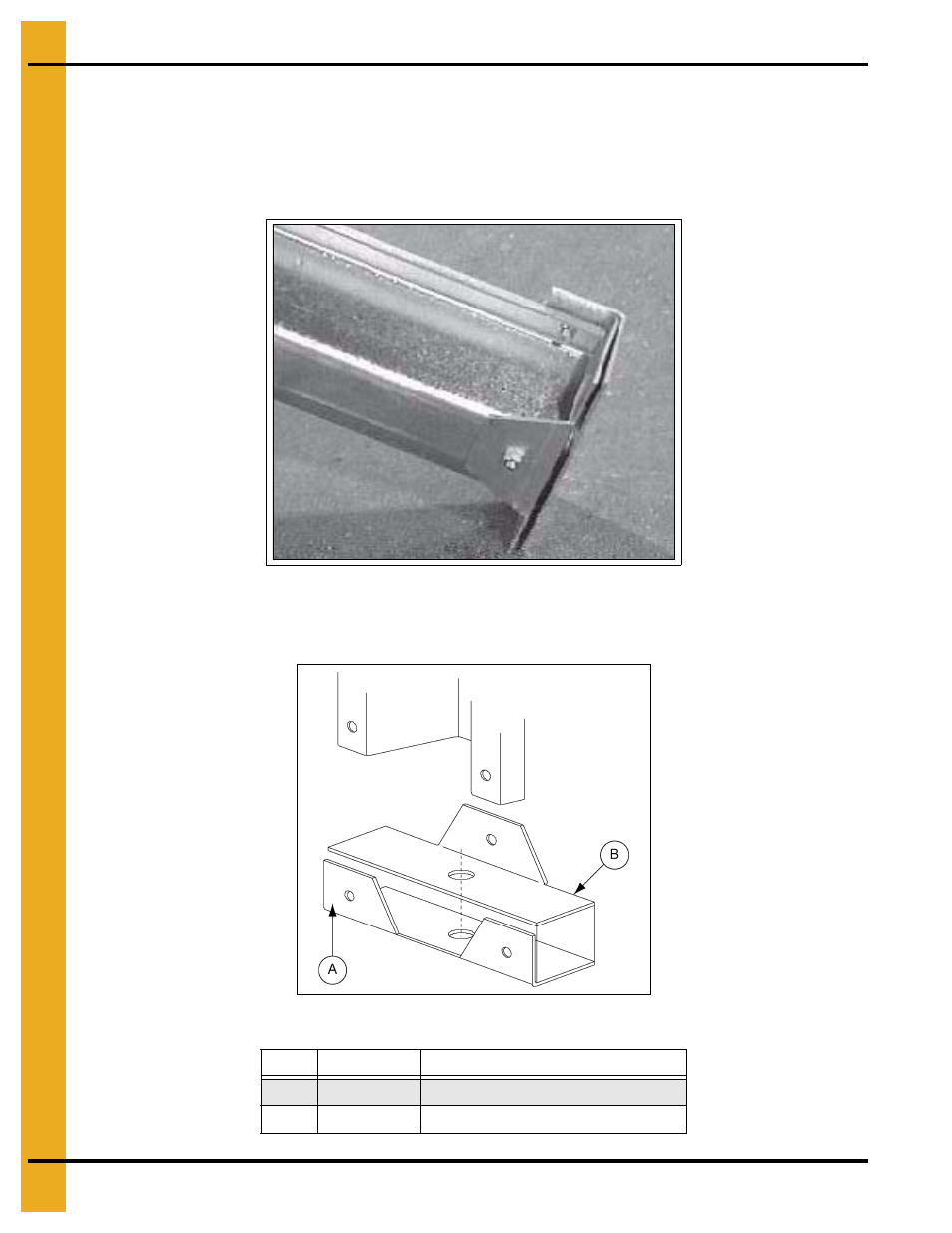

When installing legs to sidewall, reverse the normal insertion procedure for bolts. Place hex head and
neoprene washer to inside of sidewall, leaving threaded portion of bolt protruding outward. This provides
for a weather-tight seal at the leg attachment location.

See Pages 68-72

for leg attachment to sidewall

sheet details.

Figure 13A

Use 5/16" x 1" bin bolts and nuts when attaching the leg to base. Make sure the washer is used on the slot
side of the leg.

Figure 13B

Ref #

Part #

Description

BLK-10057

Back Leg Anchor Plate (One Tab)

BLK-10058

Front Leg Anchor Plate (Two (2) Tabs)

Leg
