12. Hopper Assembly

62

PNEG-1460 6', 7' and 9' Bulk Feed Tank BFT Series and GHT Series

Hopper Sheets (Continued)

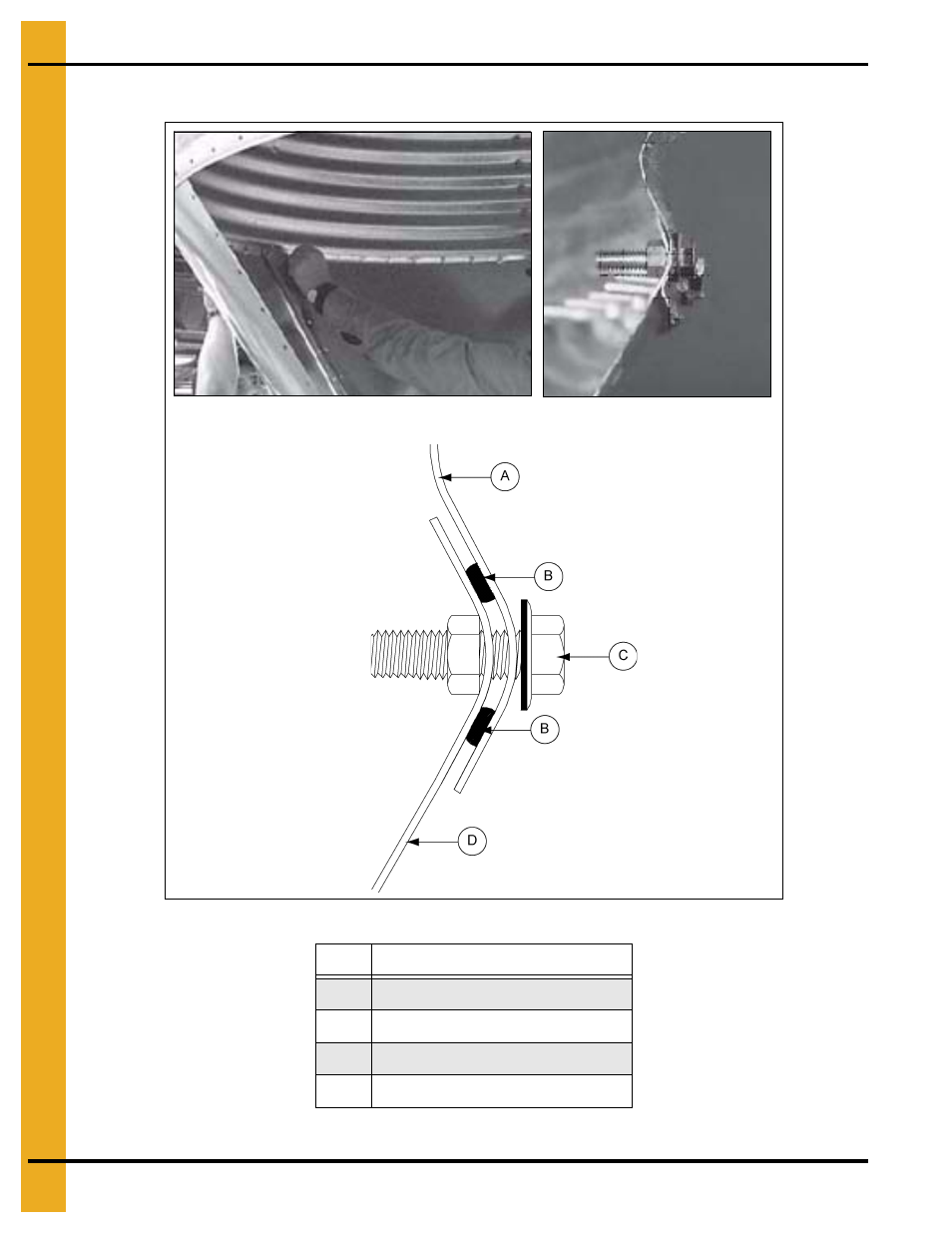

Figure 12B

Ref #

Description

A

Sidewall Sheet

B

Use Two (2) Strips of Caulking

C

Use 5/16" x 1" Bin Bolts

D

Hopper Sheet

Hopper sheet to sidewall sheet

Inside of tank
