16. Parts List
88 PNEG-1460 6', 7' and 9' Bulk Feed Tank BFT Series and GHT Series

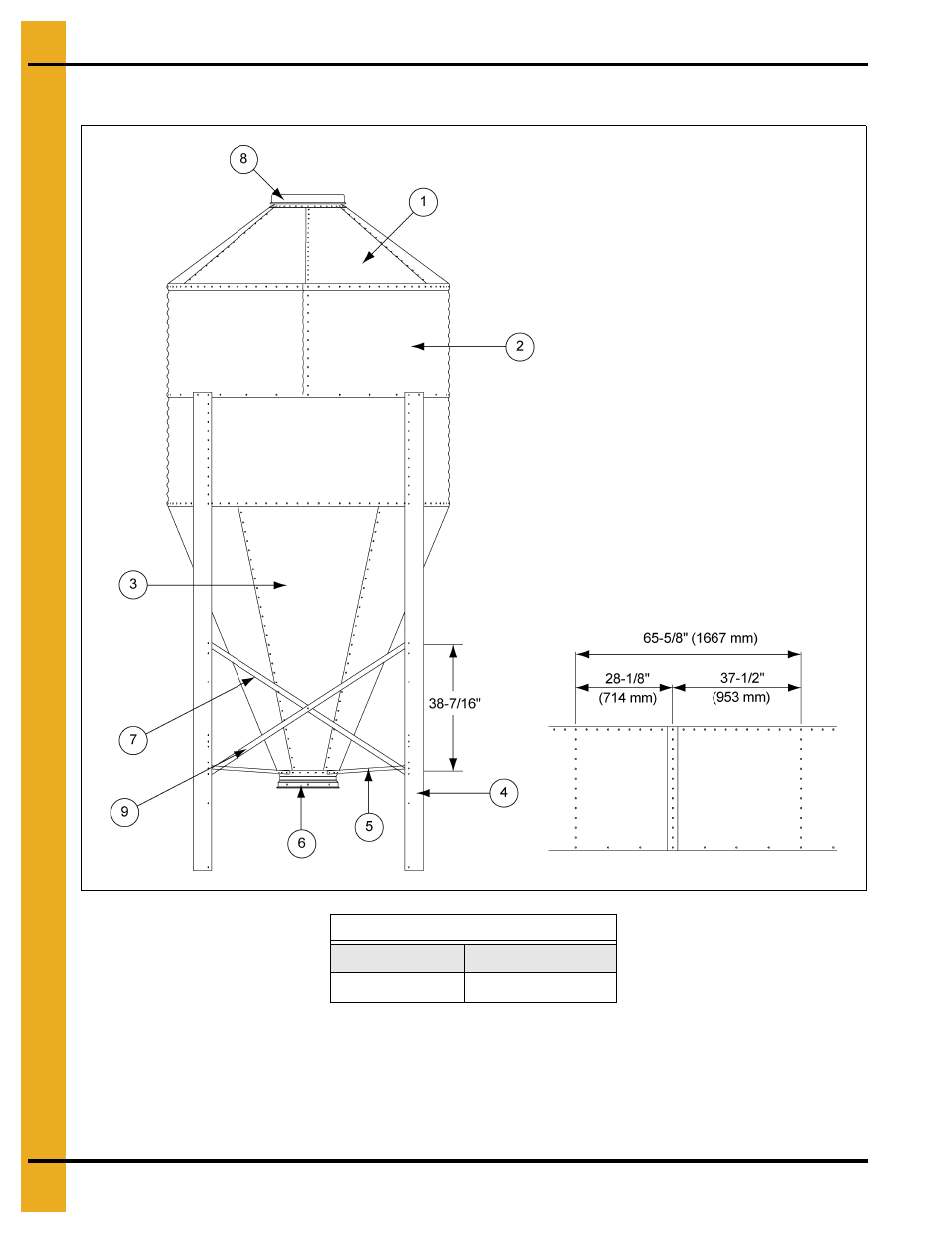

7' Diameter 67° Hopper Bin Specifications
IMPORTANT: Vertical seams of body sheets with leg holes MUST be bolted together to provide 65-5/8"
(1667 mm) between leg holes.
IMPORTANT: Bolt heads are inside of bin at the leg to body attachment and on all vertical seams on
hopper panels. All bolts to be tightened from the nut side only. Refer to detail on Page 22
for location of caulking. No cross tie bracing required.
Under Collar Clearance
16" Collar 30-3/8" (771 mm)
22" Collar 36-1/2" (927 mm)
Leg ho
les
Leg ho
les
