13. Legs and Leg Bracing
70
PNEG-1460 6', 7' and 9' Bulk Feed Tank BFT Series and GHT Series
Leg Size Chart
* NOTE: 9' 5 Ring tanks must utilize 2 ring coverage legs if raising 8" (203.2 mm).
Depending on the size of the Bulk Feed Tank you are assembling, the leg will cover either the bottom
ring or 1-3/4 rings (56"). Refer to this chart to find the correct number of rings the legs will cover. Put all
legs on, but do not tighten bolts until all braces are in place. Be sure to put leg braces on properly.
1 Ring Leg 140-1/2" (3569 mm)

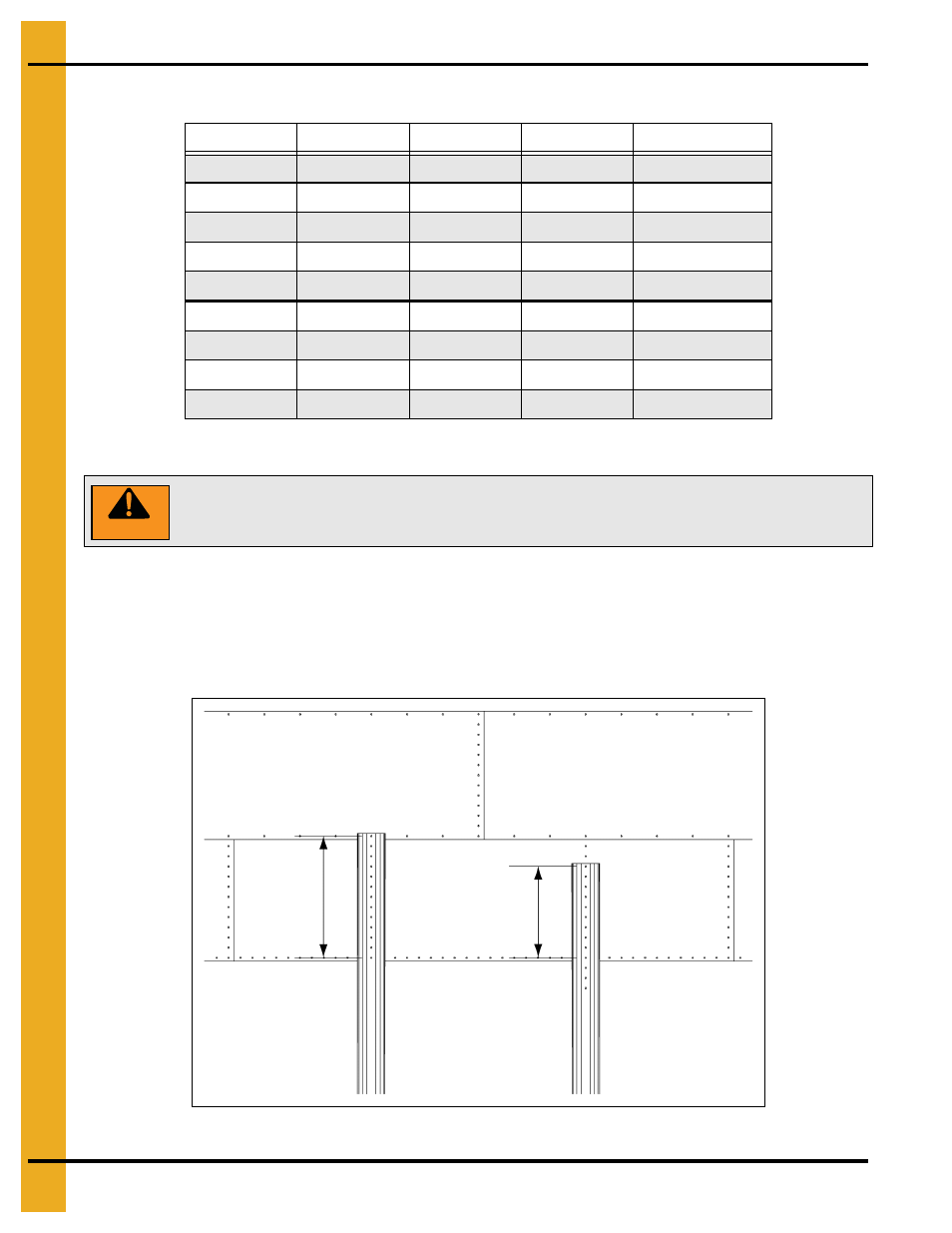

Figure 13F Leg Adjustment (7' (1-4 Ring) 67° and 9' (1-5 ring) 60° Only)
Tank Size
Hopper
# of Rings
Length
Leg Coverage
6' Diameter
60°
1-4 Rings
106-3/8"
1 Ring
7' Diameter
67°
1-4 Rings
140-1/2"
1 Ring
7' Diameter
67°
5-6 Rings
164-1/2"
1-3/4 Rings (56")
7' Diameter
45°
1-4 Rings
94-1/8"
1 Ring
7' Diameter
45°
5-6 Rings
120-3/4"
1-3/4 Rings (56")
9' Diameter
60°
1-5 Rings
140-1/2"
1 Ring
9' Diameter
60°
6 Rings
164-1/2"
1-3/4 Rings (56")
9' Diameter
45°
1-5 Rings
106-1/8"
1 Ring
9' Diameter
45°
6 Rings
132-3/4"
1-3/4 Rings (56")
Failure to follow instructions may cause damage or failure of the equipment.
WARNING
13 Holes
10 Holes
