14. Raising Bin
78 PNEG-1460 6', 7' and 9' Bulk Feed Tank BFT Series and GHT Series
Raising Bin to Set on Foundation (Continued)
Be sure that all bolts are tightened properly. Bulk Feed Tank can now be set up on foundation. Small Bulk
Feed Tanks may be set up with manpower. As the tanks get taller and heavier, other means must be
used to raise the Bulk Feed Tank. A small crane of adequate capacity attached to a cable or sling
secured around the Bulk Feed Tank just above the legs will usually do the job. Refer any questions to a
qualified rigger.
Standard Hopper Bin Anchoring
Measure between opposite legs to be sure they are an equal distance apart before securing the bin with
anchor bolts. Follow the chart shown
below . Failure to do so may cause damage to the bin.

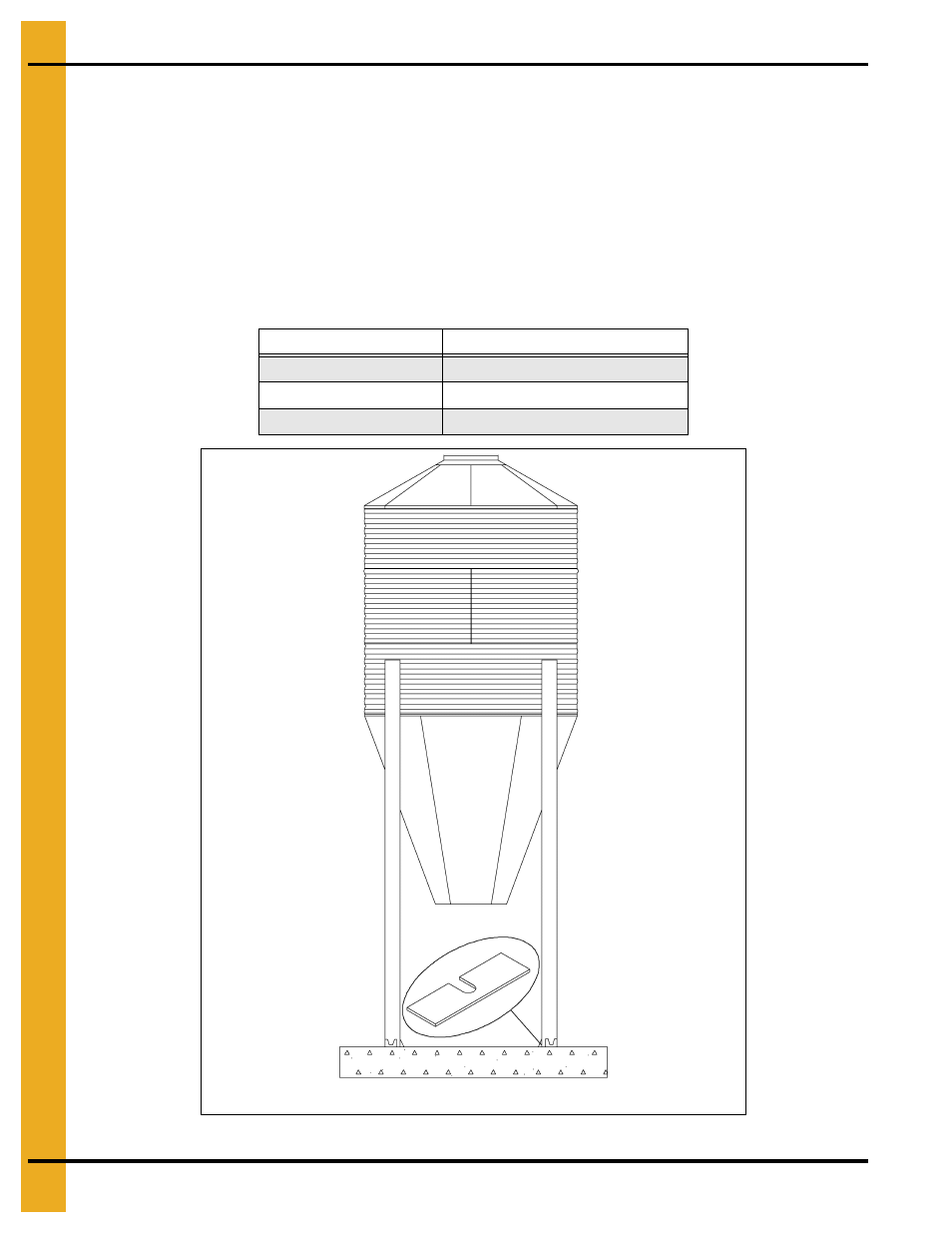

Figure 14B
Bin Size Distance Between Opposite Legs
6' Diameter (1829 mm) 72-1/4" (1835 mm)
7' Diameter (2134 mm) 84-1/4" (2140 mm)
9' Diameter (2743 mm) 108-1/8" (2746 mm)
NOTE: Leg shims are not standard equipment and must be obtained locally.
