Issue 1.1.B INSIO Version 1.1 – User Manual
EVS Broadcast Equipment – October 2010
64
5.3.4 R
ECORDING A
S
TREAM
R
ECORD
W
INDOW
O
VERVIEW

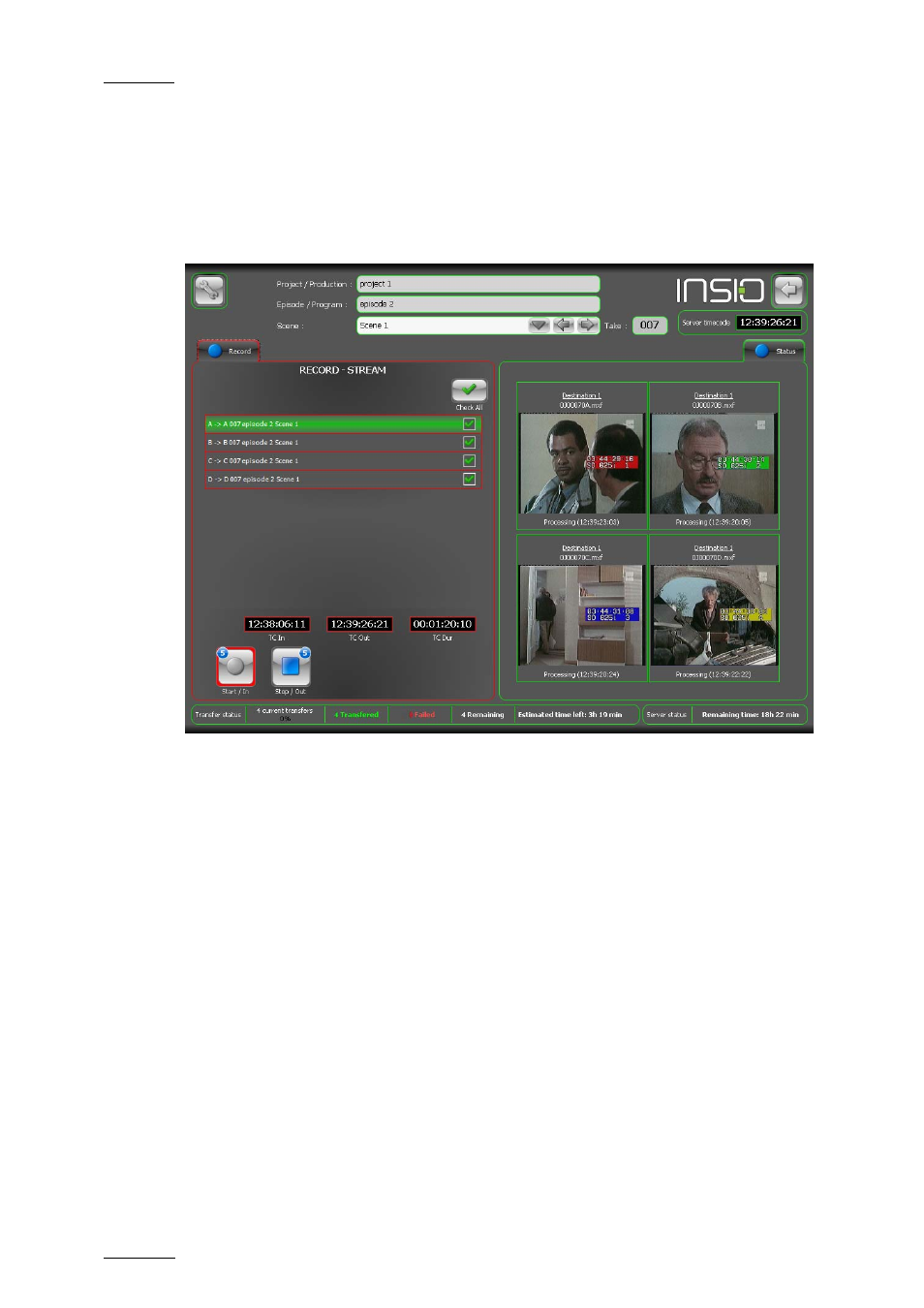

When the active record mode has been set to stream, the Record window layout is
limited as shown in the following screenshot:
Record Tab
In this tab, no automatic function button is available, as well as no Locator
button, Save, Transfer and Abort Clip buttons.
Status tab
The Status tab displays information on the stream transfer status. It contains one
box per camera and per destination path. Each box shows a thumbnail,
destination, clip name and current timecode.
In the screenshot above, 4 boxes are displayed as 4 cameras are streaming to 1
destination path. If 4 cameras were streaming to 2 destination paths, 8 boxes
would be present.
