INSIO Version 1.1 – User Manual
EVS Broadcast Equipment – October 2010
Issue 1.1.B
99
defined in Setup > User > Predefined Configurations > Format, Name and
Destination > Configure Destination (refer to section ‘Configure Destinations
Tab’ on page 17).
In each tab, the highlighted line corresponds to the destination configuration
which has been selected in Setup > User > Predefined Configurations > Format,
Name and Destination > Destination Selection (refer to section ‘Destination
Selection Tab’ on page 22).
In each tab, the destination configuration which cannot be selected, because it is
used in the other Destination tab, is dimmed.
In the example above, the destination configuration 3.3 has been defined in the
Settings but not selected by default.
In each tab, the Use check box allows to use for transfer, or not, the destination
configuration selected in the list.
H
OW TO
C
HANGE
T
RANSFER
D
ESTINATION FROM THE
T
RANSFER
B
UTTON
When those conditions are met, proceed as follows:

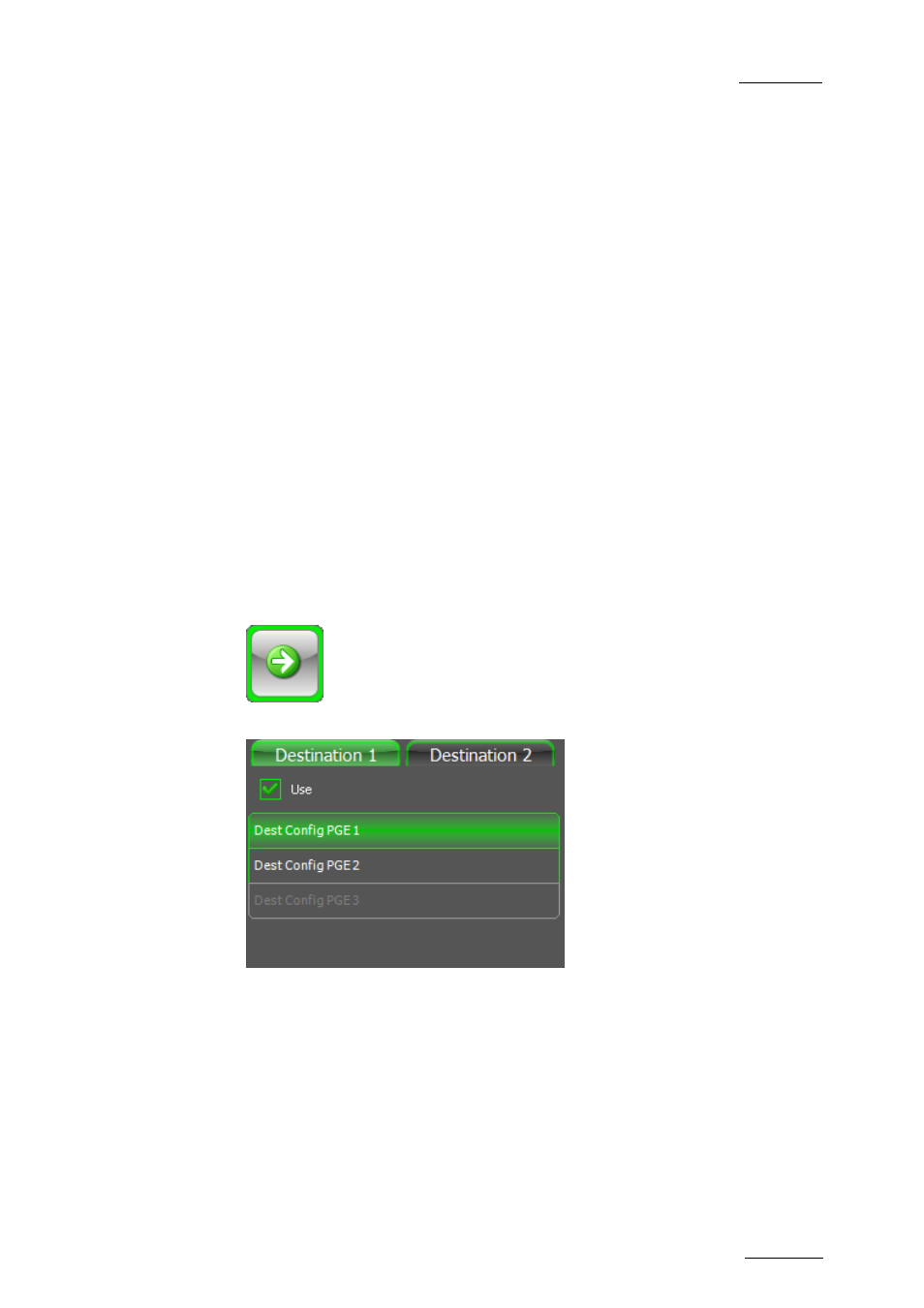

1. Tap the Transfer button, from the Record tab, the Review tab or a Clip List
tab.
The Transfer button is surrounded by a green line, indicating that new
destination configurations can be selected
The list of available transfer destination configurations is displayed
2. Select a new destination configuration from the Destination 1 list and/or
from the Destination 2 list or clear the Use box to discard the corresponding
destination.
3. Tap the Transfer button again.
The clip transfer occurs.
This is just a temporary selection and the default destinations selected in the
Settings will be displayed in case the Transfer button is tapped again. So, this
function can be used, for example, to transfer clips to more than two destinations.
