Prestige 2602HW Series User’s Guide

456

RADIUS Server Authentication Sequence

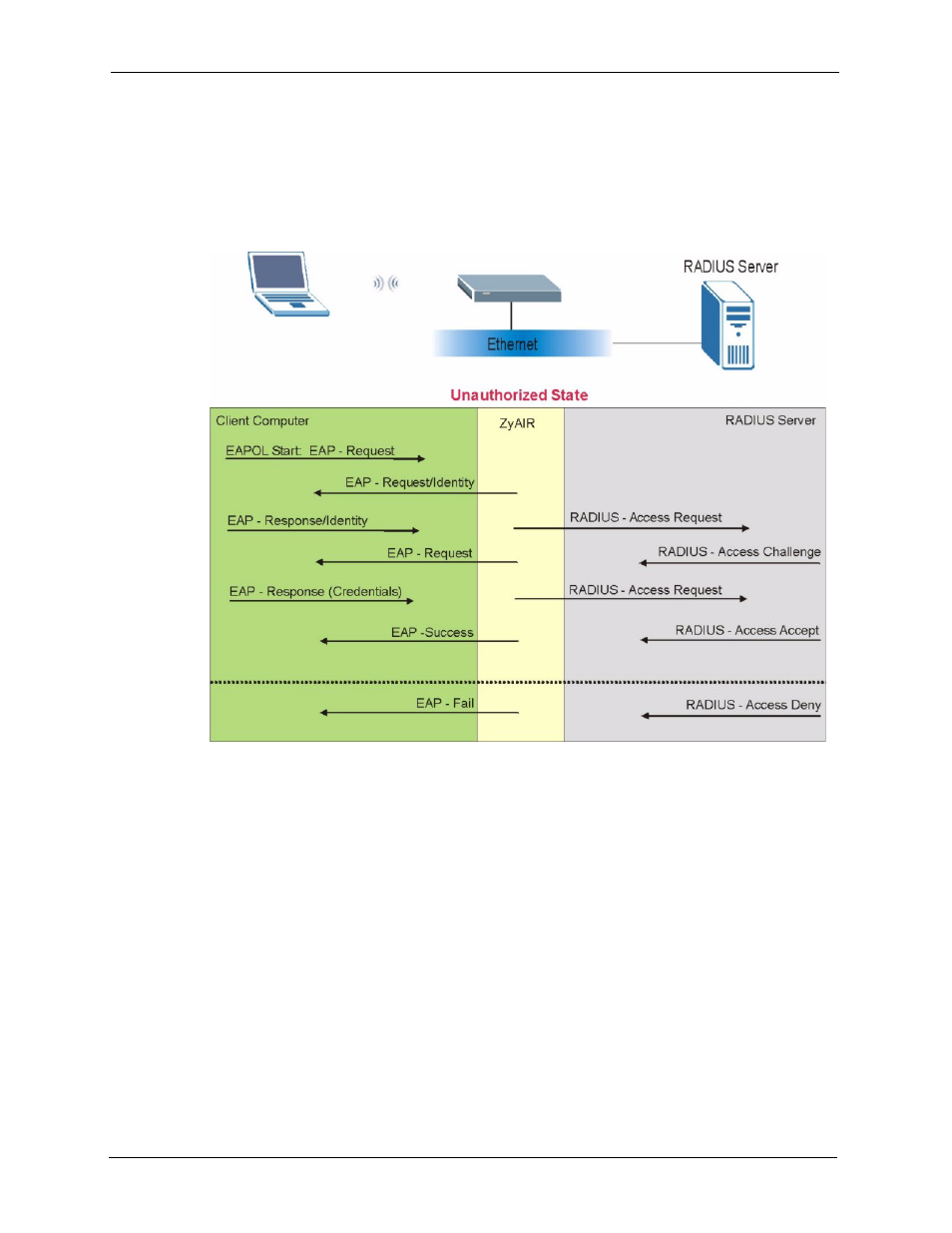

The following figure depicts a typical wireless network with a remote RADIUS server for user
authentication using EAPOL (EAP Over LAN).

Figure 283 Sequences for EAP MD5–Challenge Authentication
