Prestige 2602HW Series User’s Guide

Chapter 14 Firewall Configuration

183

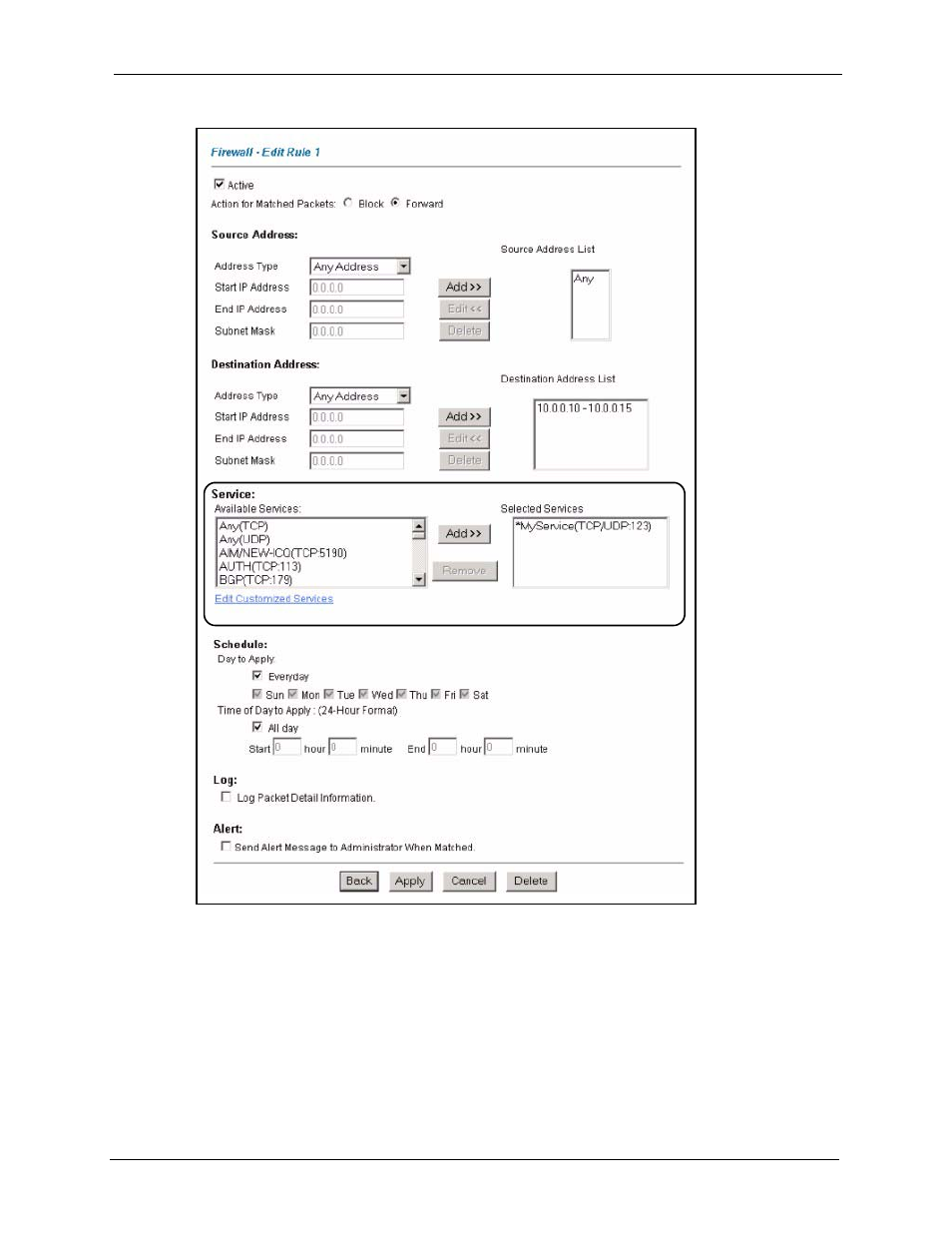

Figure 75 Firewall Example: Edit Rule: Select Customized Services

Note: Custom ports show up with an “*” before their names in the Services list box

and the Rule Summary list box. Click Apply after you’ve created your custom
port.

On completing the configuration procedure for this Internet firewall rule, the Rule Summary
screen should look like the following.

Rule 2 allows a “My Service” connection from the WAN to IP addresses 10.0.0.10 through
10.0.0.15 on the LAN.
