Prestige 2602HW Series User’s Guide

Chapter 14 Firewall Configuration

175

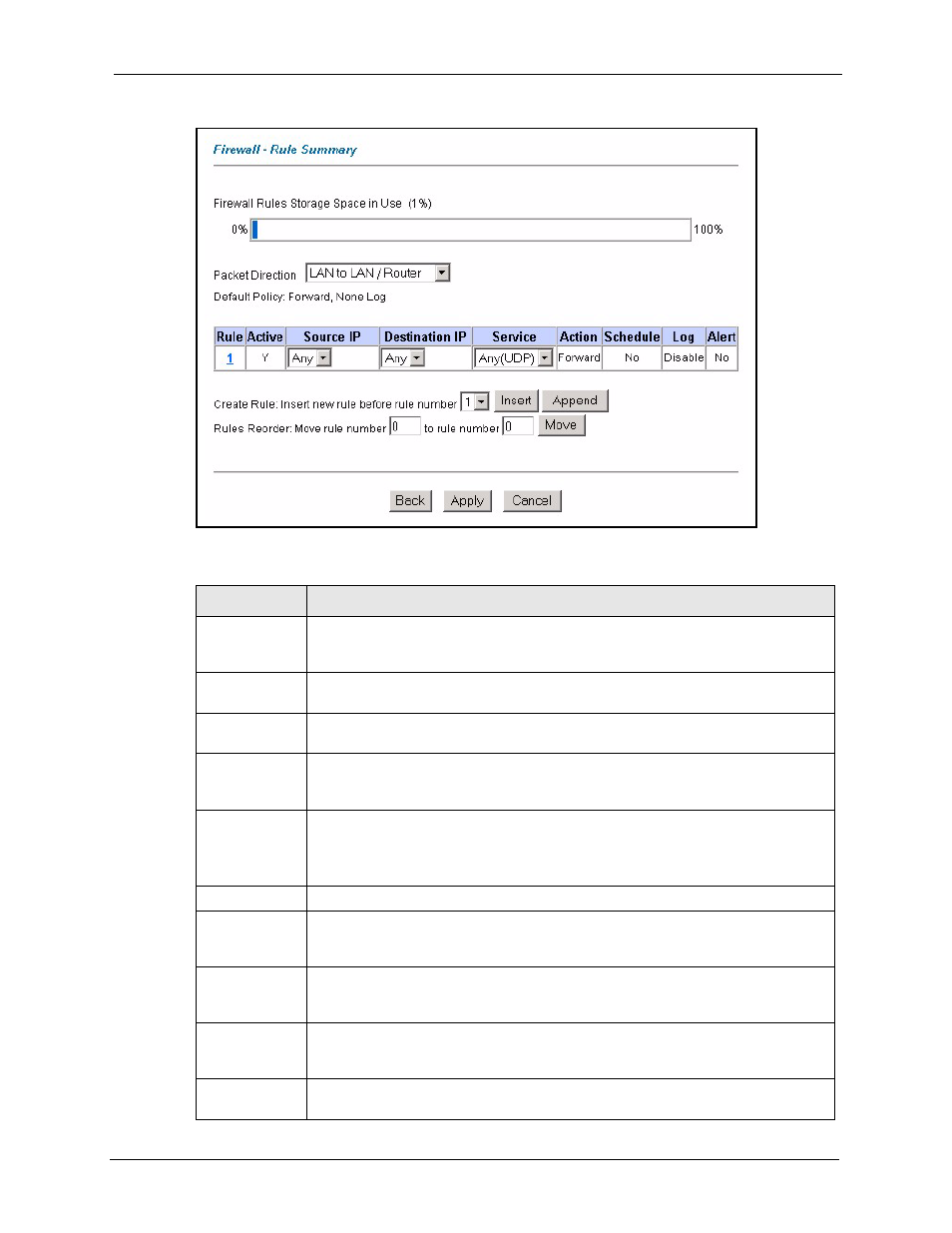

Figure 68 Firewall: Rule Summary

Table 48 Rule Summary

LABEL

DESCRIPTION

Firewall Rules

Storage Space

in Use

This read-only bar shows how much of the Prestige's memory for recording firewall

rules it is currently using. When you are using 80% or less of the storage space, the

bar is green. When the amount of space used is over 80%, the bar is red.

Packet Direction Use the drop-down list box to select a direction of travel of packets for which you

want to configure firewall rules.

Default Policy

This field displays the default action and log policy you selected in the Default Rule

screen for the packet direction shown in the field above.

The following read-only fields summarize the rules you have created that apply to

traffic traveling in the selected packet direction. The firewall rules that you configure

(summarized below) take priority over the general firewall action settings above.

Rule

This is your firewall rule number. The ordering of your rules is important as rules are

applied in turn.
Click a rule’s number to go to the Firewall Edit Rule screen to configure or edit a

firewall rule.

Active

This field displays whether a firewall is turned on (Y) or not (N).

Source IP

This drop-down list box displays the source addresses or ranges of addresses to

which this firewall rule applies. Please note that a blank source or destination

address is equivalent to Any.

Destination IP

This drop-down list box displays the destination addresses or ranges of addresses

to which this firewall rule applies. Please note that a blank source or destination

address is equivalent to Any.

Service

This drop-down list box displays the services to which this firewall rule applies.

Please note that a blank service type is equivalent to Any. See for more

information.

Action

This is the specified action for that rule, either Block or Forward. Note that Block

means the firewall silently discards the packet.
